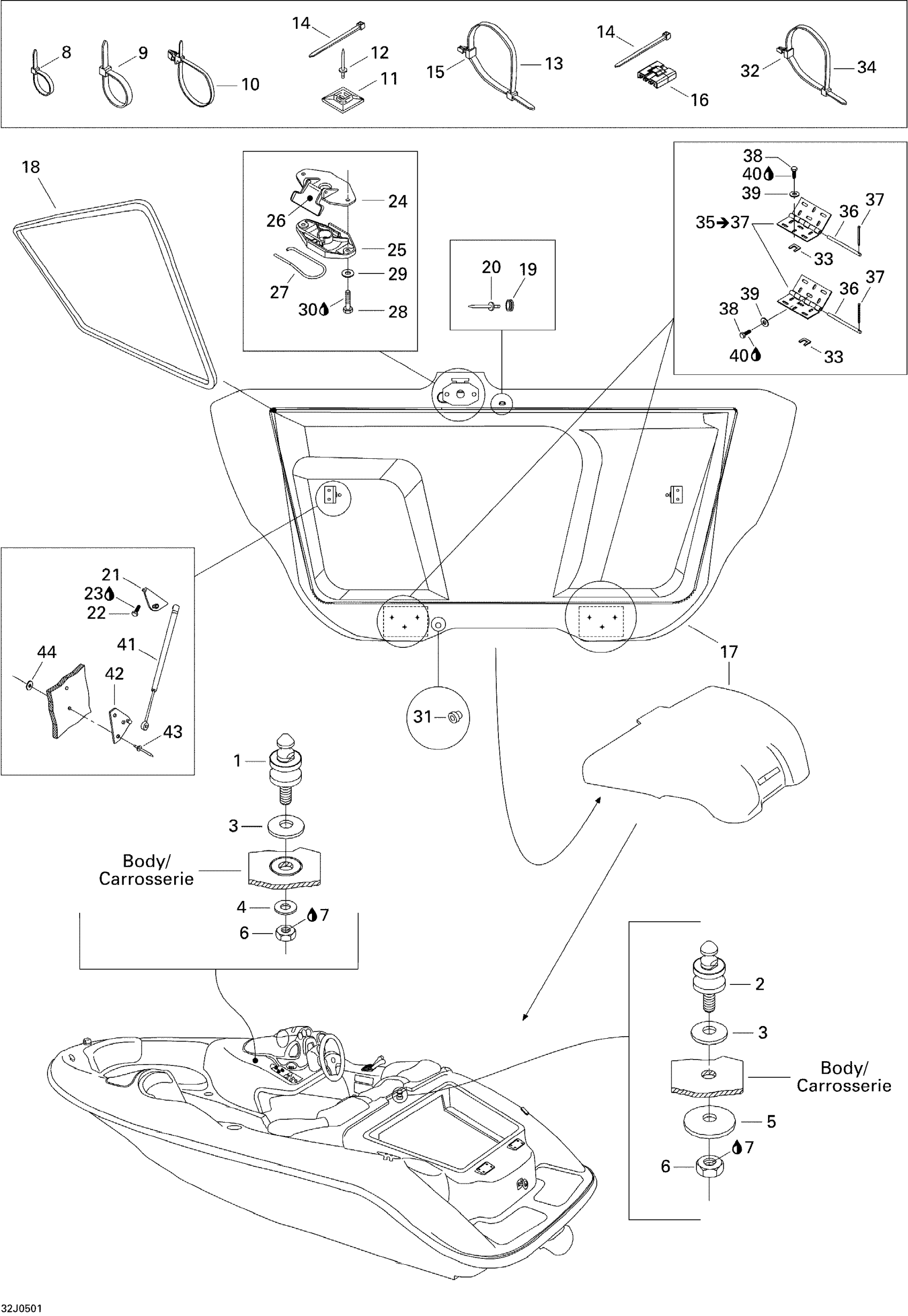

Sea-doo Sportster LE DI, 2005 Engine Compartment And Accessories Diagram

#

Description
Price

1

Latch Stud

291001420

Unavailable

2

Latch Stud

291001420

Unavailable

3

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

4

Flat Washer 10 mm, Stainless

234002600

$2.22

5

Washer 3/8" X 1-1/2"

204100160

Unavailable

6

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Tie Wrap 142 mm

293750002

$1.25

9

Tie Wrap 368 mm

293750008

$1.04

10

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

11

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

12

Pop Rivet 3/16"

293150088

$0.99

13

Tie Wrap 368 mm

293750008

$1.04

14

Tie-Rap 180 mm

414115200

$0.11

15

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

16

Tie-Rap Mount

293750025

$1.25

17

Engine Cover

204072058

Unavailable

18

Was 293200017 Neoprene Seal

219704365

$149.99

19

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

20

Pop Rivet 1/8”

293150015

$0.40

21

Shock Bracket

204073074

$27.99

22

Hex. Screw M4 X 16 | Europe

207141660

$1.47

23

Loctite 243, 10 ml

293800060

$21.49

24

Latch Ass'y

269700109

$24.99

25

Latch Ass'y

269700109

$24.99

26

Latch Ass'y

269700109

$24.99

27

Latch Spring

269700017

$9.19

28

Hex. Screw M6 X 25

207162560

$1.47

29

Stainless Flat Washer M6

234061600

$0.33

30

Loctite 243, 10 ml

293800060

$21.49

31

GROMMET - Call your local BRP dealership

293720017

Unavailable

32

Tie-Rap Mount

293750025

$1.25

33

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

34

Tie Wrap 142 mm

293750002

$1.25

35

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

36

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

37

Cotter Pin M2.5 X 12

204070205

Unavailable

38

Hex. Screw M6 X 25

207162560

$1.47

39

Stainless Flat Washer M6

234061600

$0.33

40

Loctite 243, 10 ml

293800060

$21.49

41

GAS SHOCK - Call your local BRP dealership

204071874

Unavailable

42

Shock Bracket

204071673

Unavailable

43

Pop Rivet 3/16"

293150043

$2.09

44

Flat Washer M5, Stainless

234051600

$0.77
