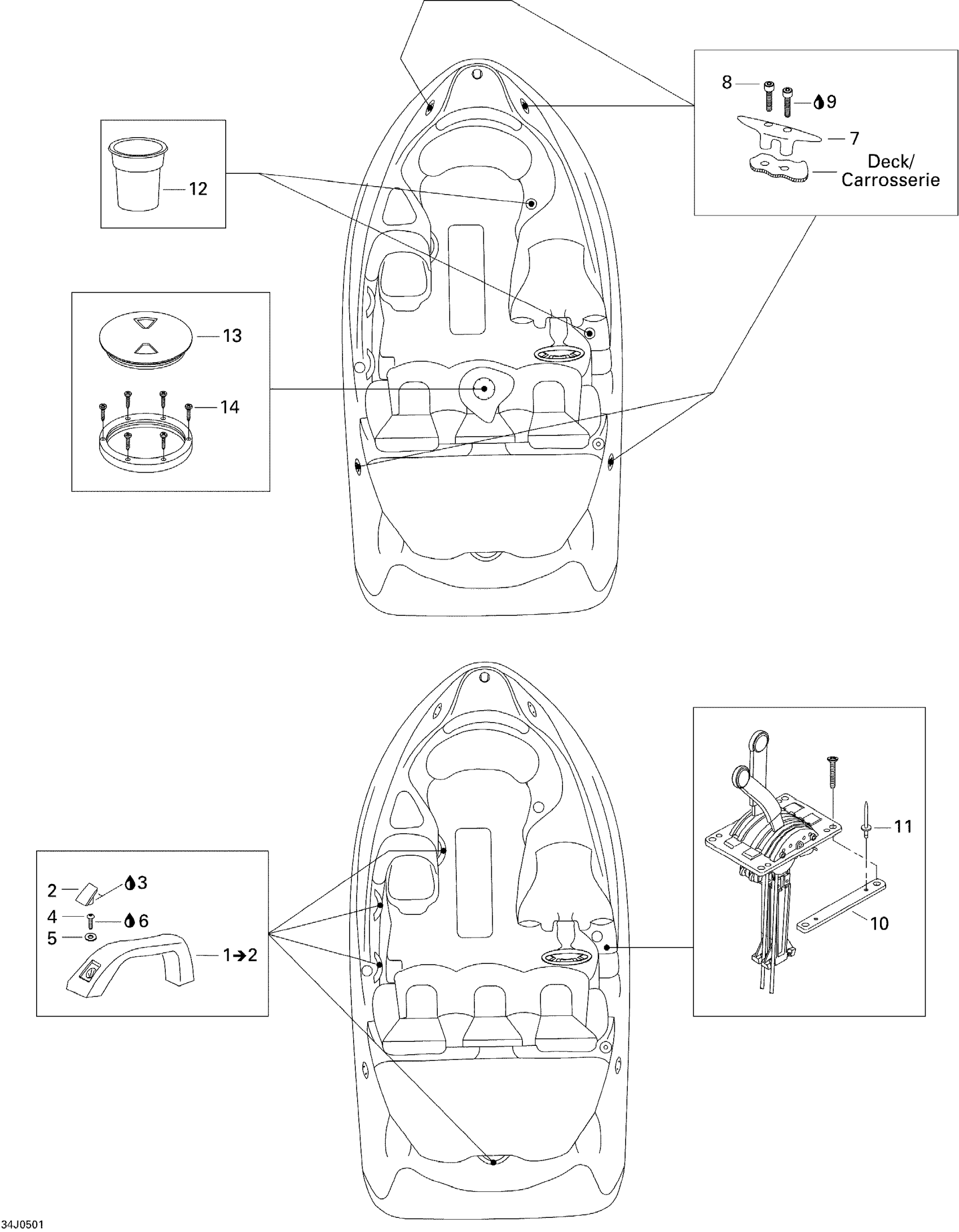

Sea-doo Sportster LE DI, 2005 Body And Accessories Diagram

#

Description
Price

1

Grip Handle | Includes 6 to 7

204070045

Unavailable

2

Snap Cap

204070056

Unavailable

3

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

4

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

5

Stainless Flat Washer M6

234061600

$0.28

6

Loctite 243, 10 ml

293800060

$21.49

7

CLEAT - Call your local BRP dealership

204070100

Unavailable

8

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

11

Pop Rivet 3/16"

293150013

$1.27

12

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

13

Deck Plate 8”

202000044

Unavailable

14

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable
