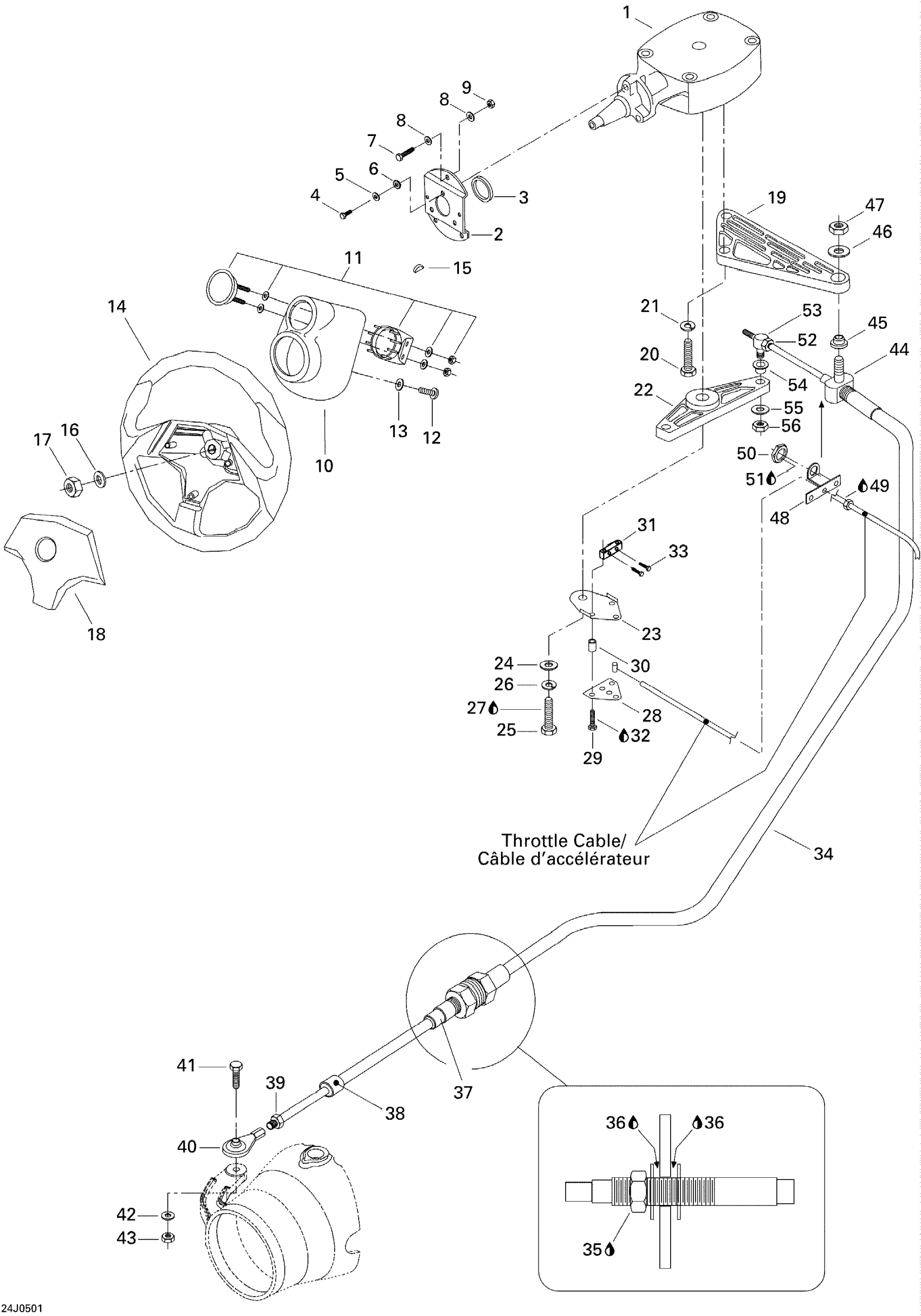

Sea-doo Sportster LE DI, 2005 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

2

Support

277000383

Unavailable

3

SPACER - Call your local BRP dealership

277000593

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Serrated Lock Washer 8 mm

234481608

$1.15

7

Hex. Screw M6 X 30

207163060

$1.48

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

COLLAR, YELLOW - Call your local BRP dealership

277000507

Unavailable

11

GAUGE CAP - Call your local BRP dealership

204390379

Unavailable

12

Hex. Flange Screw K40 X 25

241142560

$2.64

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

15

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

16

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

17

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

18

STEERING COVER, YELLOW - Call your local BRP dealership

204390441

Unavailable

19

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

20

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

21

Lock Washer 1/4”

211200025

$1.29

22

ARM - Call your local BRP dealership

204390040

Unavailable

23

Lower Clip

204390285

Unavailable

24

Spacer

204390057

Unavailable

25

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

26

Lock Washer 1/4”

211200025

$1.29

27

Loctite 243, 10 ml

293800060

$21.49

28

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.47

30

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

31

Adjustment Block

204390056

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

34

Steering Cable

277001765

$248.99

35

Loctite 243, 10 ml

293800060

$21.49

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

38

Terminal Wiper

277000441

$11.99

39

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

40

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

41

Hex. Screw M6 X 35

207063560

$2.22

42

Stainless Flat Washer M6

234061600

$0.33

43

Hex. Elastic Stop Nut M6

232561600

$1.15

44

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

45

Flanged Bushing

293350014

$12.99

46

Flat Washer 10 mm, Stainless

234001600

$1.15

47

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

48

Cable Support

204390035

Unavailable

49

Loctite 243, 10 ml

293800060

$21.49

50

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

51

Loctite 243, 10 ml

293800060

$21.49

52

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

53

PIVOT - Call your local BRP dealership

277000456

Unavailable

54

BUSHING - Call your local BRP dealership

204130095

Unavailable

55

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

56

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable
