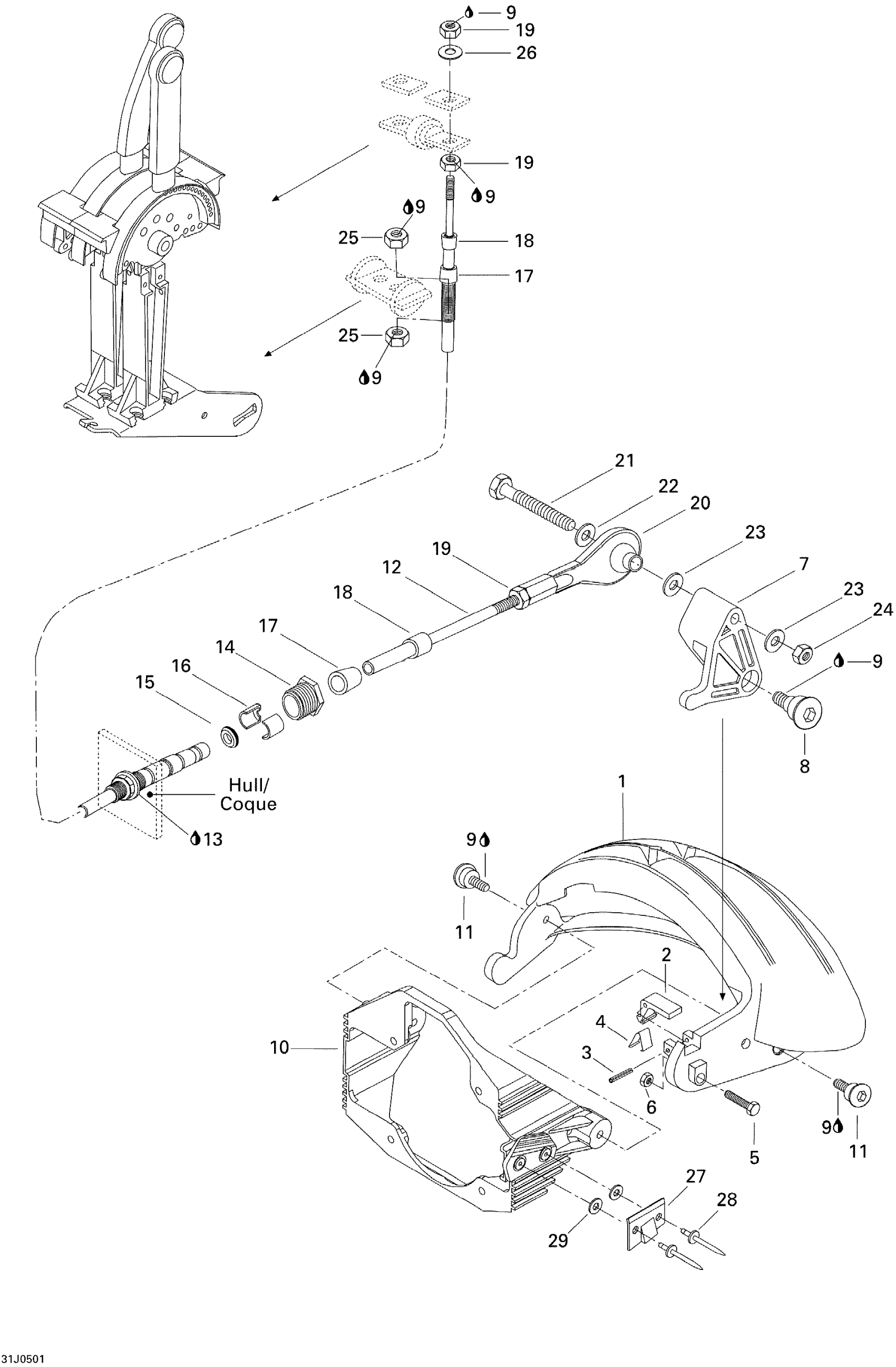

Sea-doo Sportster LE DI, 2005 05- Reverse Diagram
#
Description
Price
1
REVERSE GATE - Call your local BRP dealership
271000947
Unavailable
2
HOOK LEVER - Call your local BRP dealership
271000430
Unavailable
3
Pin
211400009
$1.68
4
Spring
271000431
$15.49
5
Hex. Forming Screw M6 X 20
207162060
$1.29
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
CABLE LEVER - Call your local BRP dealership
271000583
Unavailable
8
SCREW-SHOULDER M8 - Call your local BRP dealership
211000077
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
REVERSE GATE SUPPORT - Call your local BRP dealership
271000778
Unavailable
11
Screw
211000007
Unavailable
12
RH REVERSE CABLE - Call your local BRP dealership
204170044
Unavailable
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
15
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
16
Half Ring
277000055
$9.49
17
Boot, Large
277000473
Unavailable
18
Boot, Small
277000466
Unavailable
19
Hex. Nut
212100005
$1.35
20
BALL JOINT - Call your local BRP dealership
204170062
Unavailable
21
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
22
Flat Washer M6, Stainless
234062600
$0.77
23
Stainless Flat Washer M6
234061600
$0.33
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Hex. Jam Nut
212100006
Unavailable
26
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
27
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
28
Pop Rivet 3/16"
293150043
$2.09
29
Flat Washer | XT
211200035
$0.55
