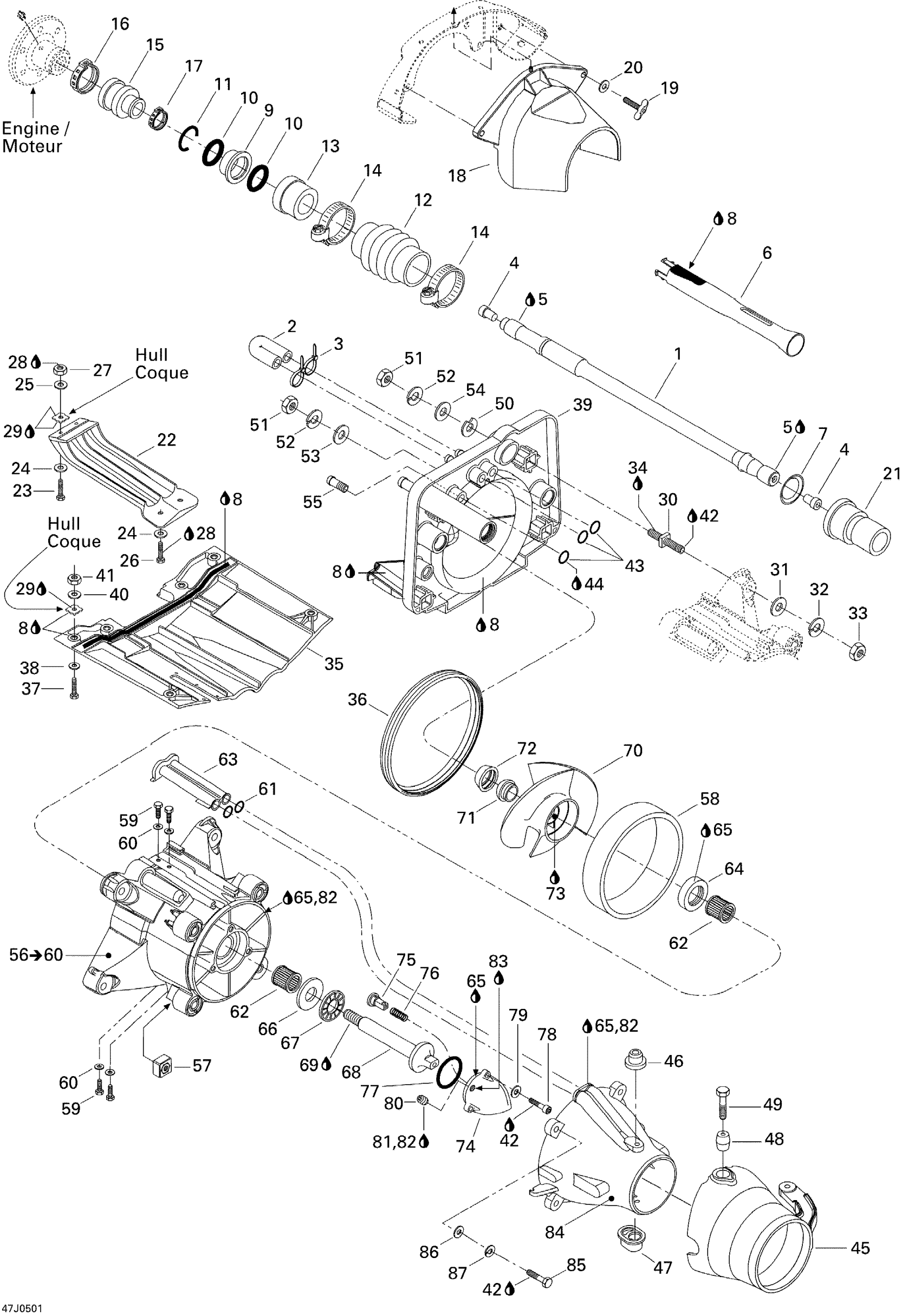

Sea-doo Sportster LE DI, 2005 Propulsion And Pump Diagram

#

Description
Price

1

DRIVE SHAFT - Call your local BRP dealership

272000151

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

3

Tie Wrap 94 mm | 4X4

293750001

$0.96

4

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

5

Synthetic Grease, 400 G

293550010

Unavailable

6

SHAFT PROTECTEUR - Call your local BRP dealership

204120135

Unavailable

7

Retaining Ring

204120132

Unavailable

8

Instant Gasket

219701421

$51.99

9

Support Ring

272000064

$61.16

10

O-Ring

293300032

$5.61

11

C-CLIP - Call your local BRP dealership

272000135

Unavailable

12

BELLOWS - Call your local BRP dealership

272000184

Unavailable

13

Carbon Ring

272000770

$41.01

14

Norma Clamp

293650075

$9.28

15

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

16

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

17

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

18

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

19

Wing Screw M8 X 25

207982510

Unavailable

20

Flat Washer 8 mm, Stainless

234082600

$2.27

21

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

22

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

23

Hex. Screw M6 X 45

207164560

$1.73

24

Stainless Flat Washer M6

234061600

$0.28

25

Flat Washer M6, Stainless

234062600

$0.73

26

Hex. Screw M6 X 16

207161660

$1.40

27

Hex. Elastic Stop Nut M6

232561600

$1.06

28

Loctite 271, 10 ml

293800005

$23.85

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

Square Stud

250300022

$17.88

31

Flat Washer 10 mm, Stainless

234002600

$2.12

32

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

33

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

34

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

35

RIDING PLATE, BLACK - Call your local BRP dealership

271000955

Unavailable

36

Neoprene Seal

293200051

$14.90

37

Hex. Screw M8 X 40

207184060

$2.12

38

Stainless, Flat Washer 8 mm

234081600

$0.52

39

Pump Support

204120264

Unavailable

40

Flat Washer 8 mm, Stainless

234082600

$2.27

41

Hex. Elastic Nut M8

232581600

$1.43

42

Loctite 243, 10 ml

293800060

$21.49

43

Watertight Seal

293250084

$6.67

44

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

45

Steering Nozzle

204160144

Unavailable

46

Venturi Bushing

293900001

$7.04

47

Plastic Bushing

293900010

$8.21

48

Venturi Spacer

204160153

Unavailable

49

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

50

Shim 0.3 mm

272000053

$9.21

50

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

51

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

52

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

53

Flat Washer 10 mm, Stainless

234001600

$1.04

54

Flat Washer 10 mm, Stainless

234002600

$2.12

55

COOLANT FITTING - Call your local BRP dealership

204120265

Unavailable

56

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

57

Square Nut M8

211100033

$16.39

58

Wear Ring

271000653

$54.45

59

Hex. Plastite Screw #10 X 3/8"

250000040

$0.93

60

Flat Washer M5, Stainless

234051600

$0.73

61

O-Ring

293300013

$6.54

62

Needle Bearing

293350017

$24.60

63

Water Outlet

271000785

$3.49

64

Oil Seal

267000094

$20.12

65

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

66

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

67

Thrust-Bearing

293350022

$41.01

68

Impeller Shaft

271000965

$108.18

69

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

70

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

71

Impeller Boot

271000516

$7.88

72

Impeller Ring

271000517

$7.88

73

Was 293800041 Loctite Primer 7649

219704458

$41.99

74

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

75

PUSHER - Call your local BRP dealership

271000978

Unavailable

76

SPRING - Call your local BRP dealership

271000973

Unavailable

77

O-Ring

293300011

$7.42

78

Socket Head Screw M6 X 25

205062560

$1.63

79

Stainless Flat Washer M6

234061600

$0.28

80

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

81

Was 293800013 Loctite 56765

219704454

$63.40

82

Was 293800041 Loctite Primer 7649

219704458

$41.99

83

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

84

Venturi, Black

204160191

Unavailable

85

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

86

Flat Washer M8.5 x 18

293050001

$1.48

87

Lock Washer 8 mm, Stainless

234181601

$0.52
