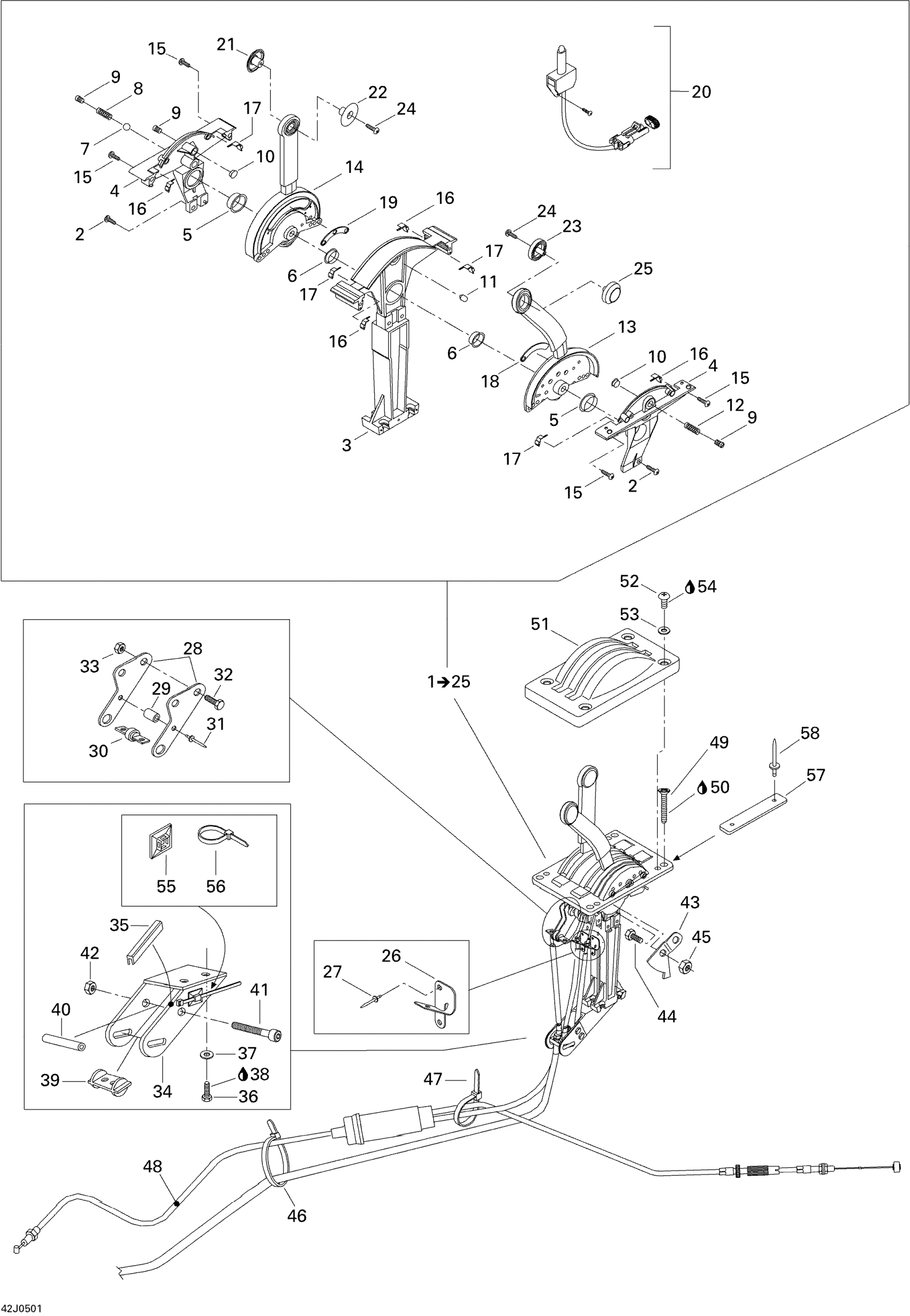

Sea-doo Sportster LE DI, 2005 05- Control Handle Diagram
#
1
Ultraflex Control Ass'y | Includes 18 to 46
204390377
$1.00
2
Screw M5 X 14
277000660
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Half-Case
277000653
Unavailable
5
BUSHING - Call your local BRP dealership
277000397
Unavailable
6
BUSHING - Call your local BRP dealership
277000398
Unavailable
7
BALL - Call your local BRP dealership
277000399
Unavailable
8
SPRING - Call your local BRP dealership
277000400
Unavailable
9
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
10
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
11
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
12
SPRING - Call your local BRP dealership
277000401
Unavailable
13
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
14
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
15
Screw M5 X 20
277000421
Unavailable
16
RH Water Seal
277000423
Unavailable
17
LH Water Seal
277000424
Unavailable
18
THROTTLE LEVER SPACER - Call your local BRP dealership
277000659
Unavailable
19
Shift Lever Spacer
277000408
Unavailable
20
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership
278001195
Unavailable
21
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
22
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
23
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
24
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
25
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
26
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
27
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
28
LINK - REVERSE - Call your local BRP dealership
277000578
Unavailable
29
SPACER - Call your local BRP dealership
277000449
Unavailable
30
PIVOT BRACKET - Call your local BRP dealership
277000450
Unavailable
31
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
32
Hex. Screw M6 X 16
207161660
$1.59
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
SUPPORT - Call your local BRP dealership
277000452
Unavailable
35
Was 271000110 Protection Trim
219704353
$15.99
36
Hex. Cap Screw M6 X 12
207161260
$1.26
37
Lock Washer Helical M6
234161601
$1.15
38
Loctite 243, 10 ml
293800060
$21.49
39
PIVOT BRACKET - Call your local BRP dealership
277000451
Unavailable
40
SPACER - Call your local BRP dealership
277000453
Unavailable
41
SOCKET HEAD SCREW M6 X 80 - Call your local BRP dealership
205068060
Unavailable
42
Hex. Elastic Stop Nut M6
232561600
$1.15
43
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
44
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
45
Hex. Elastic Nut M5 | X
232551600
$1.15
46
Tie-Rap 180 mm
414115200
$0.11
47
Tie Wrap 142 mm
293750002
$1.25
48
THROTTLE CABLE - Call your local BRP dealership
204390384
Unavailable
49
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
50
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
51
Control Cover
204390123
Unavailable
52
Phillips Screw M4 X 10
208641060
$1.01
53
Flat Washer 4 mm
234040600
$0.55
54
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
55
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
56
Tie Wrap 94 mm | 4X4
293750001
$1.03
57
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
58
Pop Rivet 3/16"
293150013
$1.37
