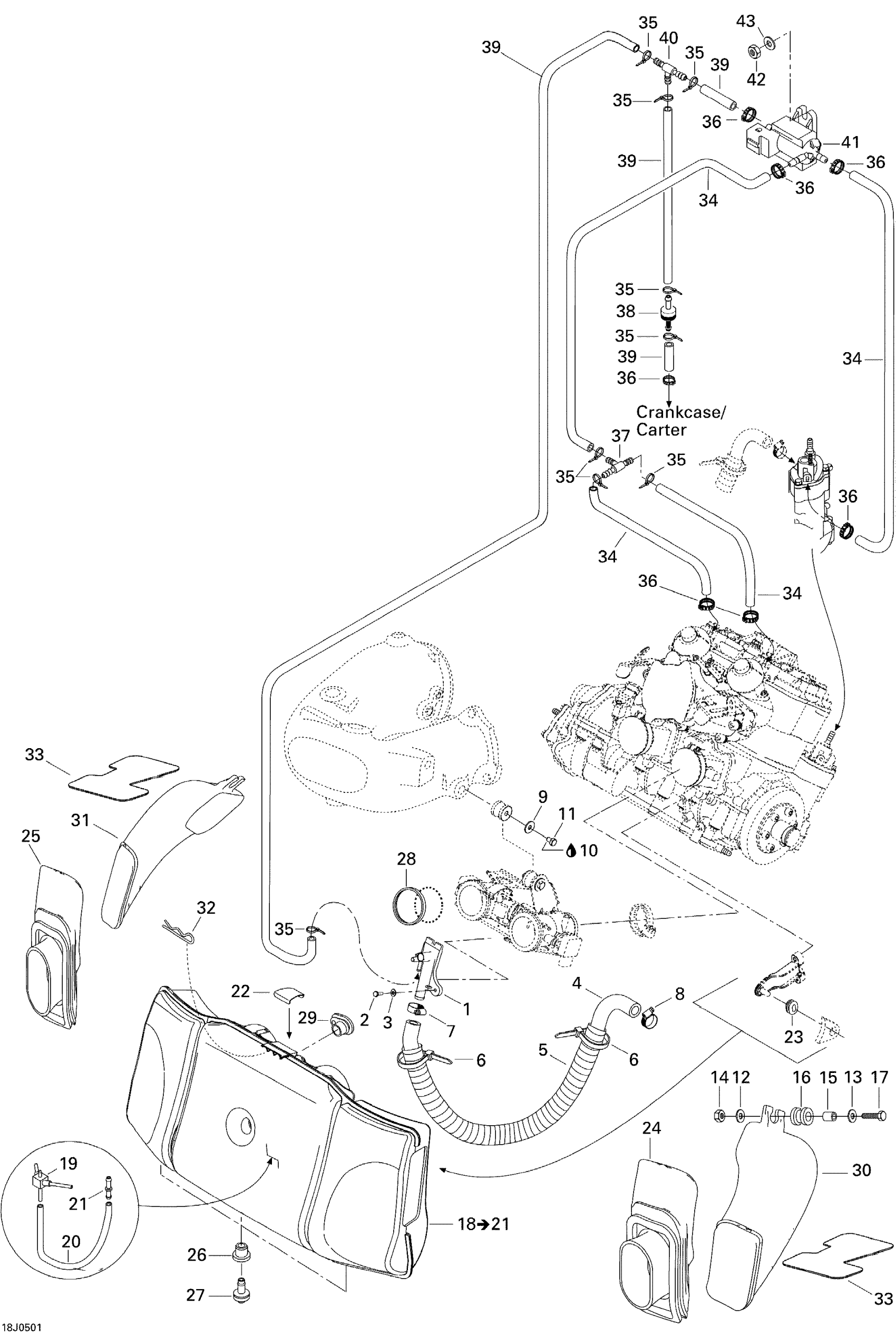

Sea-doo Sportster LE DI, 2005 02- Air Intake Diagram
#
1
AIR SILENCER ADAPTOR - Call your local BRP dealership
270600023
Unavailable
2
Hex. Screw M4 X 12, Scotch Grip
207341260
Unavailable
3
Flat Washer 4 mm, Stainless
234042600
$1.15
4
INTAKE HOSE - Call your local BRP dealership
270600021
Unavailable
5
Tubing 25 MM 1000MM Long
219704402
$15.99
6
Tie Wrap 142 mm
293750002
$1.25
7
Tridon Gear Clamp
293650172
$3.09
8
Tridon Gear Clamp
293650173
$3.09
9
Flat Washer 8 mm, Stainless
234082600
$2.43
10
Loctite 243, 10 ml
293800060
$21.49
11
HEX. SCREW M8 X 12 - Call your local BRP dealership
207181260
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Flat Washer M6, Stainless
234062600
$0.77
14
Hex. Elastic Stop Nut M6
232561600
$1.15
15
SPACER - Call your local BRP dealership
272000074
Unavailable
16
UPPER INSULATOR - Call your local BRP dealership
278001260
Unavailable
17
Hex. Screw M6 X 35
207063560
$2.22
18
Air Silencer | Includes 18 to 21
273000209
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Was 415080100 Fuel Line Primer 3,2mm
219704409
$79.49
21
CONNECTOR - Call your local BRP dealership
293710107
$1.09
22
SUPPORT PLATE - Call your local BRP dealership
273000204
Unavailable
23
Cable Grommet
293720052
Unavailable
24
INTAKE ADAPTOR, PTO - Call your local BRP dealership
273000163
Unavailable
25
INTAKE ADAPTOR, MAG - Call your local BRP dealership
273000164
Unavailable
26
GROMMET - Call your local BRP dealership
293720064
Unavailable
27
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
28
Gasket
293250122
$67.99
29
FEMALE ADAPTOR - Call your local BRP dealership
270600024
Unavailable
30
HIGH AIR DUCT, PTO - Call your local BRP dealership
273000151
Unavailable
31
High Air Duct, Mag
273000150
Unavailable
32
HAIR PIN - Call your local BRP dealership
250400015
Unavailable
33
PROTECTOR PAD - Call your local BRP dealership
273000165
Unavailable
34
HOSE 4.3 MM - Call your local BRP dealership
270000471
Unavailable
35
Tie Wrap 94 mm | 4X4
293750001
$1.03
36
Oetiker Clamp
293650100
$3.38
37
T-Fitting
293710068
$8.29
38
Check Valve
275500398
$10.99
39
Was 420660574 Pressure Hose 280 mm
219704352
$224.99
40
T-Fitting
293710068
$8.29
41
SOLENOID VALVE - Call your local BRP dealership
270600044
Unavailable
42
Flat Washer M5, Stainless
234051600
$0.77
43
Hex. Elastic Nut M5 | X
232551600
$1.15
