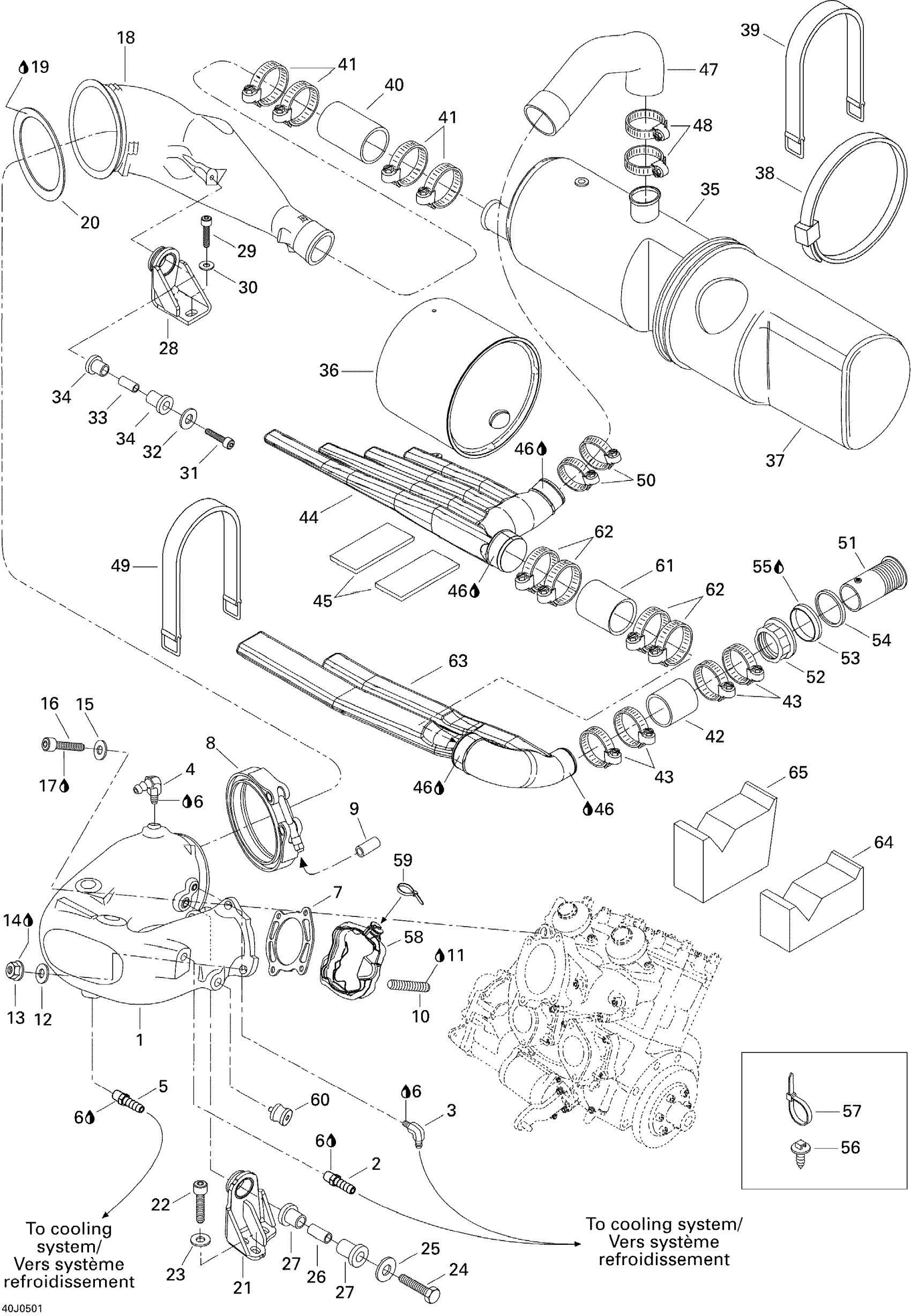

Sea-doo Sportster LE DI, 2005 Exhaust System Diagram

#

Description
Price

1

Pipe Head, Black

274001107

Unavailable

2

Male Connector

293710037

$10.49

3

Elbow Fitting 90°

293710048

Unavailable

4

Elbow Fitting

293700016

Unavailable

5

Male Connector | With Catalyst

293710021

$14.23

6

Was 293800013 Loctite 56765

219704454

$65.99

7

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable

8

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

Flat Washer

211200051

$1.68

13

Hex. Flange Nut M10

233101600

$5.29

14

Loctite 243, 10 ml

293800060

$21.49

15

Flat Washer

211200051

$1.68

16

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

EXHAUST CONE, BLACK - Call your local BRP dealership

274000871

Unavailable

19

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

20

SEALING RING - Call your local BRP dealership

274000511

Unavailable

21

Pipe Support, Black

274001109

Unavailable

22

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

23

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

24

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

25

Flat Washer 10 mm, Stainless

234002600

$2.22

26

BUSHING - Call your local BRP dealership

274000861

Unavailable

27

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

28

PIPE SUPPORT, BLACK - Call your local BRP dealership

274001110

Unavailable

29

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

30

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

31

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

32

Flat Washer 10 mm, Stainless

234002600

$2.22

33

BUSHING - Call your local BRP dealership

274000861

Unavailable

34

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

35

MUFFLER - Call your local BRP dealership

274000826

Unavailable

36

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

Unavailable

37

Muffler Cover, Rear

274000799

Unavailable

38

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

39

Retainer Strap

293850097

$11.64

40

Exhaust Hose

274000896

Unavailable

41

Tridon Clamp

293650064

$8.29

42

Exhaust Hose

274000616

Unavailable

43

Tridon Clamp

293650064

$8.29

44

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

45

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

46

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

47

Exhaust Hose

274000830

Unavailable

48

Tridon Clamp

293650064

$8.29

49

STRAP - Call your local BRP dealership

293850022

Unavailable

50

Tridon Clamp

293650064

$8.29

51

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

52

Nut 72 mm

274000224

$16.34

53

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

54

GASKET - Call your local BRP dealership

293250041

Unavailable

55

Silicone Sealant 51388, 300 ml

296000309

$36.99

56

Mount Dart

293730040

$1.04

57

Tie-Rap 180 mm

414115200

$0.11

58

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

59

Tie Wrap 142 mm

293750002

$1.25

60

Rubber Isolator

707000949

$11.49

61

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

62

Tridon Clamp

204000079

$9.99

63

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

64

Resonator Support, Rear

204340416

Unavailable

65

Resonator Support, Front

204340438

Unavailable
