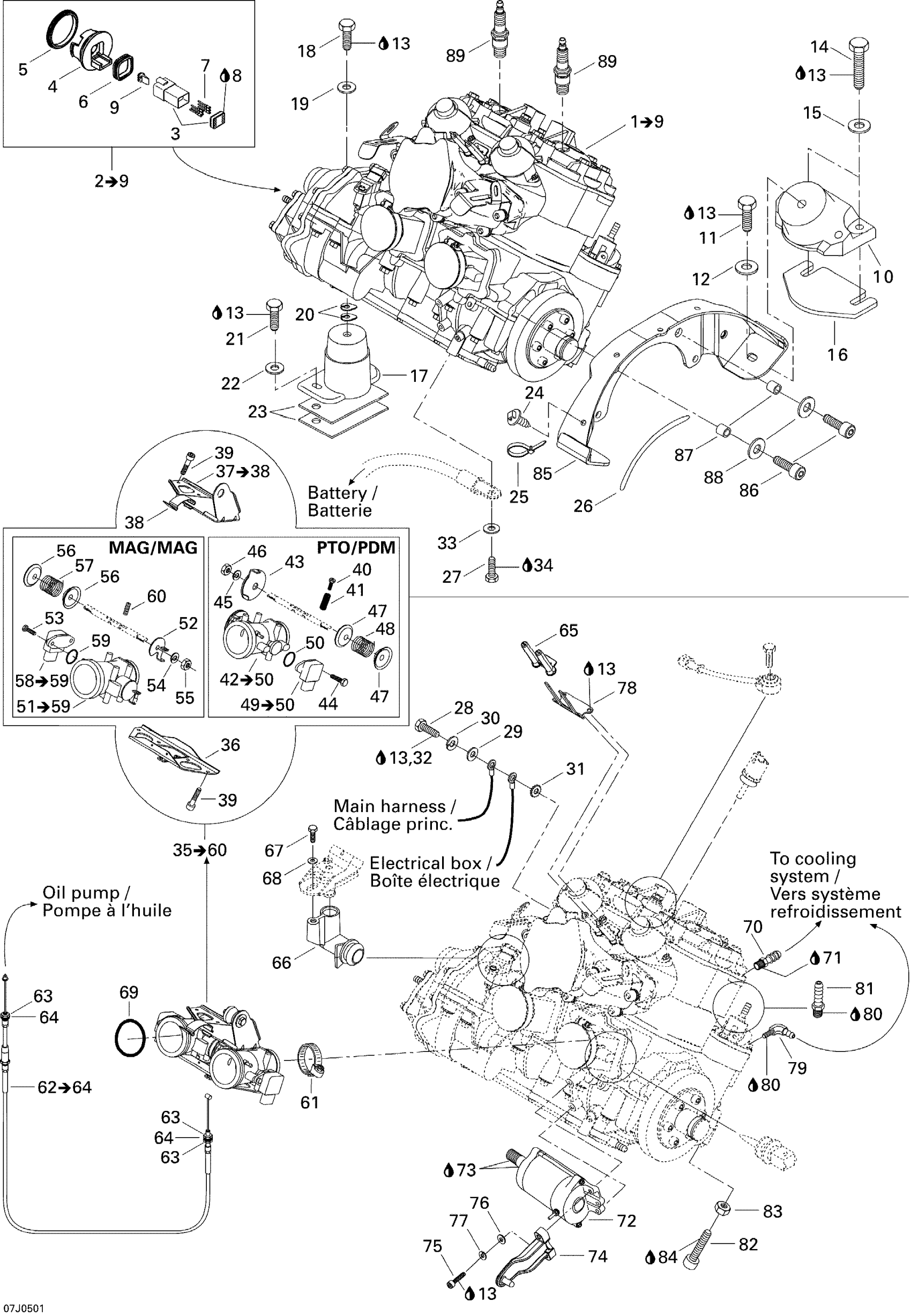

Sea-doo Sportster LE DI, 2005 01- Engine Diagram
#
1
Engine 947 Di | Includes 1 to 9
204250282
Unavailable
2
Adaptor Ass'y | Includes 3 to 7
707000031
Unavailable
3
Male Terminal Housing, 6 Circuits
710001539
$19.99
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Gasket
293300033
Unavailable
6
Gasket
293200055`
Unavailable
7
Male Terminal
278000631
$4.39
8
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
9
Female Lock, 6 Circuits
278000735
$3.19
10
Rubber Mount, Black
270000421
Unavailable
11
Hex. Screw M8 X 16
207181660
Unavailable
12
Flat Washer 8 mm, Stainless
234082600
$2.43
13
Loctite 243, 10 ml
293800060
$21.49
14
Hex. Screw M8 X 40
207184060
$2.22
15
Stainless, Flat Washer 8 mm
234081600
$0.55
16
Shim 0.3 mm
270000122
Unavailable
16
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
17
Rubber Mount, Black
270000422
Unavailable
18
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
19
Flat Washer 8 mm, Stainless
234082600
$2.43
20
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
20
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
21
Hex. Screw M8 X 40
207184060
$2.22
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
Shim 0.3 mm
270000122
Unavailable
23
Shim 0.3 mm - Call your local BRP dealership
204250048
Unavailable
23
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
23
SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
204250049
Unavailable
24
Mount Dart
293730040
$1.04
25
Tie-Rap 180 mm
414115200
$0.11
26
Was 271000110 Protection Trim
219704353
$15.99
27
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
28
Hex. Screw M6 X 25
207162560
$1.47
29
Flat Washer M6, Stainless
234062600
$0.77
30
Lock Washer Helical M6
234161601
$1.15
31
External Serrated Lock Washer 6 mm
234461608
$1.15
32
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
33
Flat Washer 10 mm, Stainless
234001600
$1.15
34
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
35
Throttle Body | Includes 1 to 26
270600058
Unavailable
36
LOWER SUPPORT - Call your local BRP dealership
270600069
Unavailable
37
Support Ass'y | Includes 3 to 4
270600070
Unavailable
38
LATCH BRACKET - Call your local BRP dealership
270600073
Unavailable
39
Socket Head Screw M5 X 10
205051060
$1.58
40
ADJUSTER SCREW - Call your local BRP dealership
270600074
Unavailable
41
Spring
270600075
Unavailable
42
PRIMARY THROTTLE BODY - Call your local BRP dealership | Includes 8 to 16
270600076
Unavailable
43
Throttle Lever Ass'y
270600077
Unavailable
44
POTENTIOMETER SCREW M4 - Call your local BRP dealership
270600078
Unavailable
45
Lock Washer Helical M6
234161601
$1.15
46
Hex. Nut M6
232061600
$1.15
47
GUIDE SPRING - Call your local BRP dealership
270600079
Unavailable
48
Spring
270600080
Unavailable
49
Position Sensor
420866120
$98.99
50
O-Ring
270000544
$4.65
51
SECONDARY THROTTLE BODY - Call your local BRP dealership | Includes 17 to 26
270600081
Unavailable
52
Pick-Up Lever
270600082
Unavailable
53
POTENTIOMETER SCREW M4 - Call your local BRP dealership
270600078
Unavailable
54
Lock Washer Helical M6
234161601
$1.15
55
Hex. Nut M6
232061600
$1.15
56
GUIDE SPRING - Call your local BRP dealership
270600079
Unavailable
57
Spring
270600083
Unavailable
58
Position Sensor
420866120
$98.99
59
O-Ring
270000544
$4.65
60
IDLE SCREW - Call your local BRP dealership
270600084
Unavailable
61
Norma Clamp
293650079
$11.60
62
Injection Cable | Includes 28 to 30
270000546
$58.99
63
Hex. Nut M6
232160600
$1.15
64
Stainless Flat Washer M6
234061600
$0.33
65
INSULATOR - Call your local BRP dealership
278001512
Unavailable
66
VALVE ADAPTOR - Call your local BRP dealership
270600019
Unavailable
67
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
68
Flat Washer | XT
211200035
$0.55
69
O-Ring
293250065
Unavailable
70
MALE CONNECTOR - Call your local BRP dealership
293710066
Unavailable
71
Was 293800013 Loctite 56765
219704454
$65.99
72
Starter Ass'y, Black
278001937
$265.99
73
Synthetic Grease, 400 G
293550010
Unavailable
74
AIR SILENCER SUPPORT - Call your local BRP dealership
273000227
Unavailable
75
Socket Head Screw M6 X 35
205063560
$2.22
76
Stainless Flat Washer M6
234061600
$0.33
77
Lock Washer Helical M6
234161601
$1.15
78
GROUND PLATE - Call your local BRP dealership
278001662
Unavailable
79
Elbow Fitting
293700016
Unavailable
80
Was 293800013 Loctite 56765
219704454
$65.99
81
STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.
293710082
Unavailable
82
Socket Screw M10 X 30
205003060
Unavailable
83
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
84
Loctite 271, 10 ml
293800005
$26.99
85
Engine Support, Black
270000515
Unavailable
86
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
87
BUSHING - Call your local BRP dealership
270000453
Unavailable
88
Stainless, Flat Washer 8 mm
234081600
$0.55
89
Spark Plug NGK Zfr4f-11
278001650
$6.35
