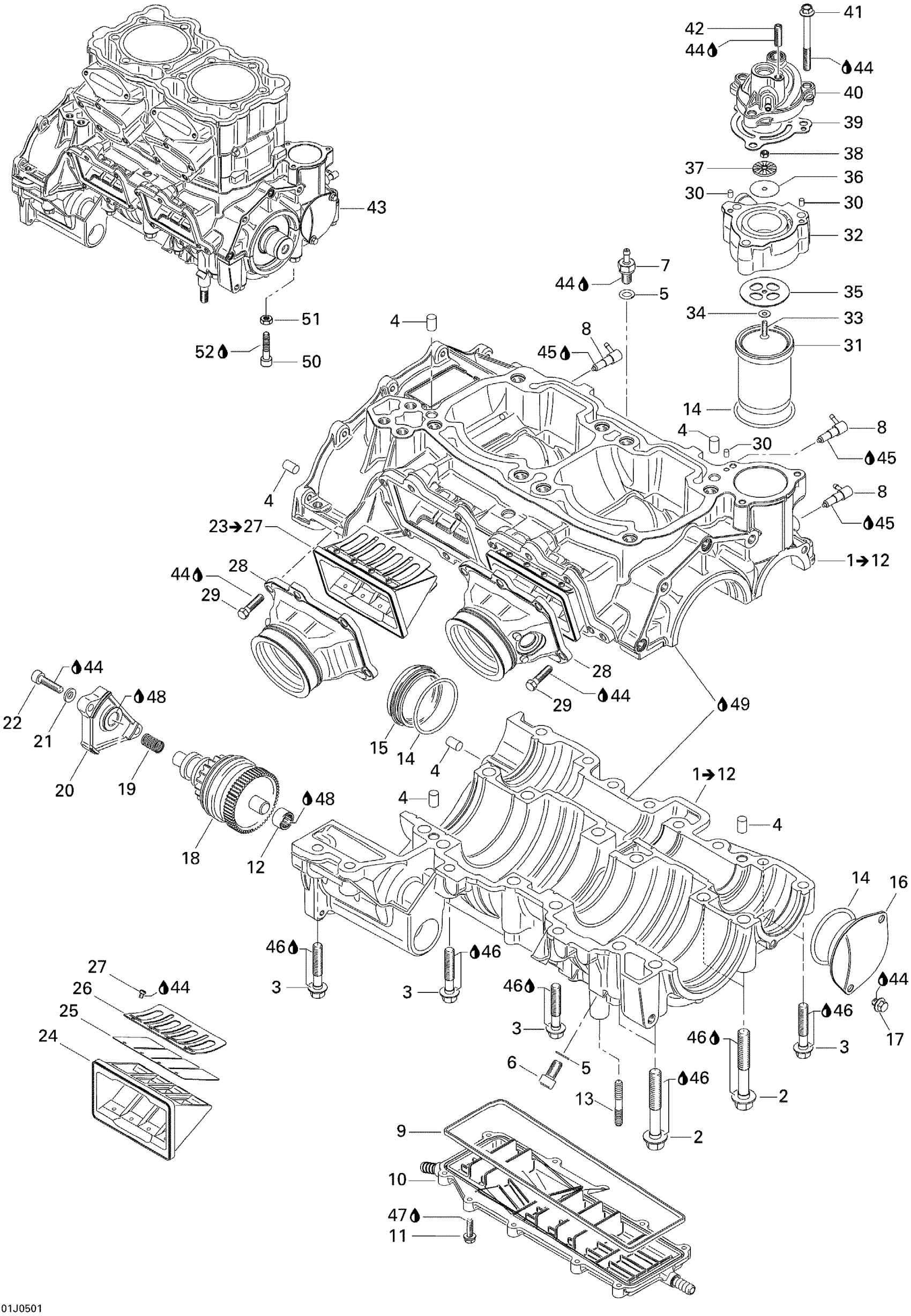

Sea-doo Sportster LE DI, 2005 01- Crankcase And Reed Valve Diagram
#
1
CRANKCASE ASSY 947-DI - Call your local BRP dealership | Includes 1 to 12
420888534
Unavailable
2
HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership
420941333
Unavailable
3
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
420940638
Unavailable
4
Center Pin 8 X 12
420632010
$4.01
5
Sealing Ring
420950141
$2.00
6
Socket Head Screw M8 X 16
205081660
Unavailable
7
VENT NIPPLE M8 - Call your local BRP dealership
420640970
Unavailable
8
Check Valve
420956511
$35.99
9
RUBBER RING - Call your local BRP dealership
420931880
Unavailable
10
WATERCHANNEL COVER - Call your local BRP dealership
420811430
Unavailable
11
Taptite Screw M5 X 20
420841558
Unavailable
12
Needle Bushing
420232482
$20.99
13
STUD M10 X 18 - Call your local BRP dealership
420840290
Unavailable
14
O-RING - Call your local BRP dealership
420230300
Unavailable
15
BEARING COVER - Call your local BRP dealership
420811200
Unavailable
16
BEARING COVER - Call your local BRP dealership
420811205
Unavailable
17
Hex. Flange Screw M6 X 12
207661244
$2.11
18
Starter Drive Ass'y
420888042
$369.99
19
Spring
420938204
$7.65
20
COVER - Call your local BRP dealership
420811210
Unavailable
21
SPRING WASHER - Call your local BRP dealership
420845020
Unavailable
22
Allen Screw M6 x 22 This part replaces 420840401.
420840403
$1.48
23
REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27
420924602
$189.99
24
Not Available As Spare Part - Friction Washer
Unavailable
25
REED PEDAL - Call your local BRP dealership
420924612
Unavailable
26
REED PEDAL STOP - Call your local BRP dealership
420924617
Unavailable
27
Phillips Screw M3 X 5
420941215
$1.69
28
CARBURATOR ADAPTER ASS'Y - Call your local BRP dealership
420867890
Unavailable
29
Hex. Flange Screw M6 X 25
207662544
$0.64
30
PIN - Call your local BRP dealership
420232020
Unavailable
31
COMPRESSOR SLEEVE - Call your local BRP dealership
420923911
Unavailable
32
COMPRESSOR HEAD - Call your local BRP dealership
420923890
Unavailable
33
OVAL HEAD SCREW - Call your local BRP dealership
420841368
Unavailable
34
WASHER - Call your local BRP dealership
420944590
Unavailable
35
INLET REED DISK - Call your local BRP dealership
420854500
Unavailable
36
OUTLET REED DISK - Call your local BRP dealership
420854510
Unavailable
37
DIAPHRAGM GUIDE - Call your local BRP dealership
420944600
Unavailable
38
LOCK NUT M4 - Call your local BRP dealership
420242533
Unavailable
39
GASKET - Call your local BRP dealership
420931870
Unavailable
40
COMPRESSOR COVER - Call your local BRP dealership
420923902
Unavailable
41
HEX. FLANGED SCREW M6 X 55 - Call your local BRP dealership
420640563
Unavailable
42
ADJUSTER SCREW M6 X 25 - Call your local BRP dealership
420640873
Unavailable
43
Short Block Ass'y, 947 Di
420094707
Unavailable
44
Loctite 243, 10 ml
293800060
$21.49
45
Sealant Loctite 648
219703000
$45.99
46
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
47
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
48
Dow Corning 111, 150 g
413707000
$59.99
49
Loctite 5910, 300 ml
293800081
$57.99
50
Socket Screw M10 X 30
205003060
Unavailable
51
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
52
Loctite 271, 10 ml
293800005
$26.99
