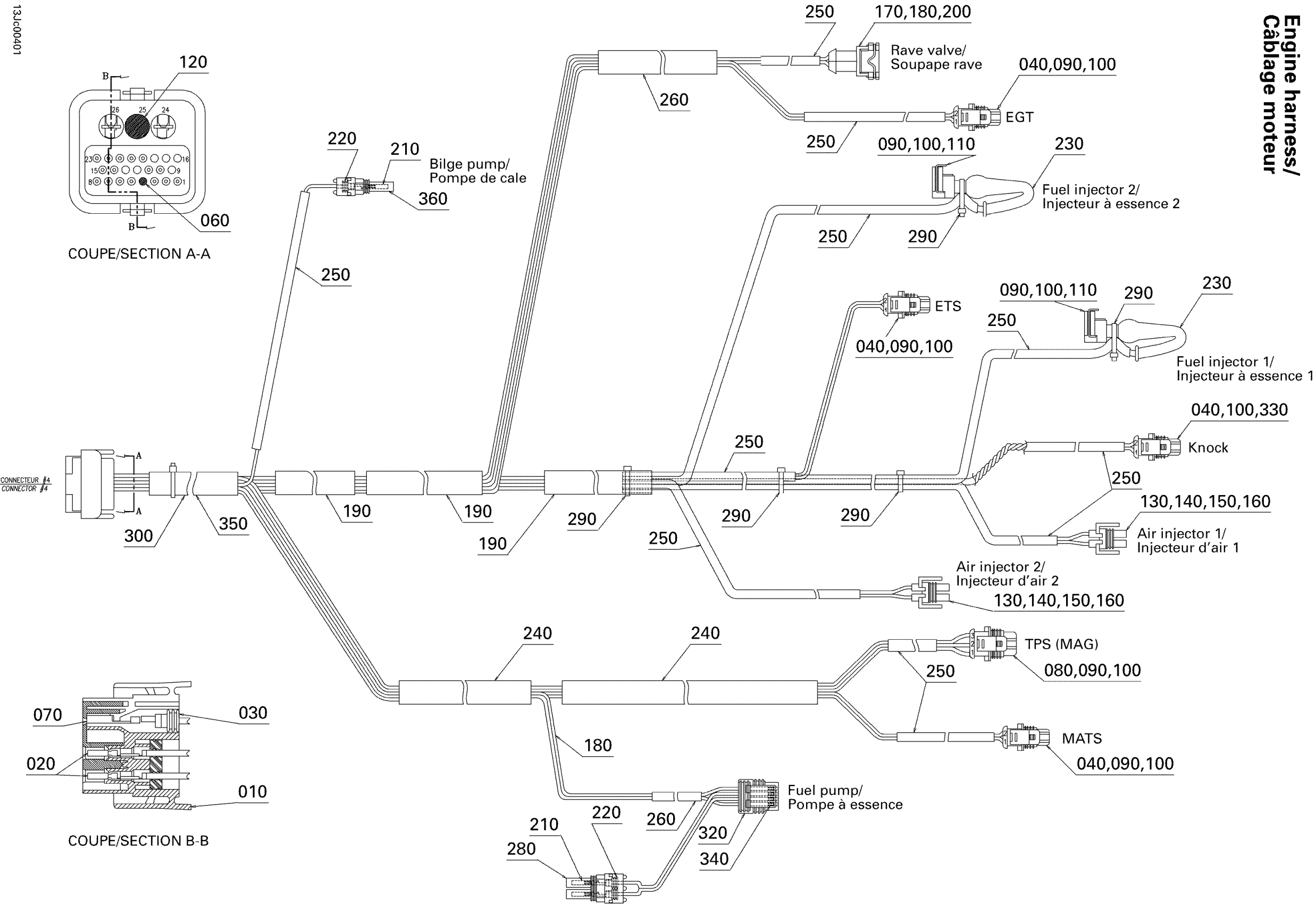

Sea-doo Sportster LE DI, 2004 Engine Harness Diagram
#
Description
Price
10
Engine Harness Ass'y | Includes 001 to 360
204470865
Unavailable
10
MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership
278001211
Unavailable
20
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
30
Seal
278001223
Unavailable
40
Male Housing, 2 Circuits
278001005
Unavailable
60
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
70
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
80
Male Housing, 3 Circuits
278000997
Unavailable
90
Female Terminal
278000998
Unavailable
100
Wire Seal
278000999
Unavailable
110
Male Connector, 2 Circuits
278001003
Unavailable
120
SEAL - Call your local BRP dealership
409013900
Unavailable
130
MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership
278001480
Unavailable
140
Female Terminal
278001481
Unavailable
150
Seal
278001482
Unavailable
160
LOCK, 2 CIRCUITS - Call your local BRP dealership
278001483
Unavailable
170
Female Terminal
278000998
Unavailable
180
Wire Seal
278000999
Unavailable
190
Not Available As Spare Part - Friction Washer
Unavailable
200
Male Connector, 2 Circuits
278001003
Unavailable
210
Female Terminal
278000223
Unavailable
220
Wire Seal
278000218
Unavailable
230
RUBBER CAP - Call your local BRP dealership
278001484
Unavailable
240
Not Available As Spare Part - Friction Washer
Unavailable
250
Not Available As Spare Part - Friction Washer
Unavailable
260
Not Available As Spare Part - Friction Washer
Unavailable
280
Male Connector, 2 Circuits
278000220
Unavailable
290
Tie Wrap 94 mm | 4X4
293750001
Unavailable
300
Tie Wrap 142 mm
293750002
Unavailable
320
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
330
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
340
Female Terminal
278001114
Unavailable
350
Not Available As Spare Part - Friction Washer
Unavailable
360
Not Available As Spare Part - Friction Washer
Unavailable
