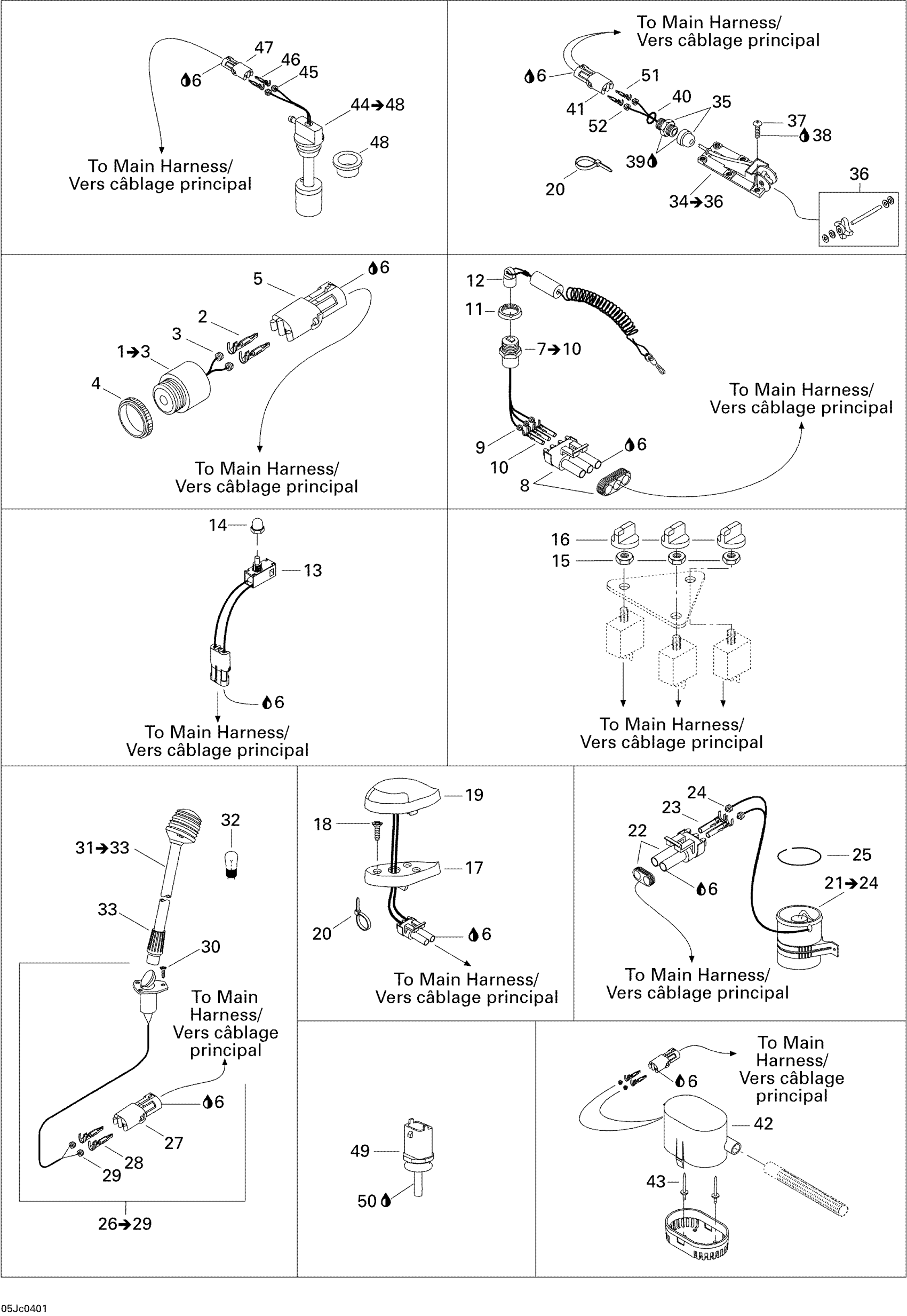

Sea-doo Sportster LE DI, 2004 Electrical Accessories 2 Diagram
#
1
BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3
278000881
Unavailable
2
Male Terminal | XT Models
278000222
Unavailable
3
Wire Seal
278000218
Unavailable
4
Buzzer Nut
278000707
Unavailable
5
Female Housing, 2 Circuits
278000217
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
Unavailable
8
Male Housing, 3 Circuits
278000273
Unavailable
9
Wire Seal
278000218
Unavailable
10
Female Terminal
278000223
Unavailable
11
Safety Nut (DESS Switch)
278002963
Unavailable
12
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
Unavailable
13
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
14
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
15
Switch Nut
278000647
Unavailable
16
SWITCH CAP - Call your local BRP dealership
278000542
Unavailable
17
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
18
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
19
Front Lamp
204470311
Unavailable
20
Tie Wrap 94 mm | 4X4
293750001
Unavailable
21
Fan Ass'y | Includes 44 to 47
204470108
Unavailable
22
Male Connector, 2 Circuits
278000220
Unavailable
23
Female Terminal
278000223
Unavailable
24
Wire Seal
278000218
Unavailable
25
BROACH - Call your local BRP dealership
204000133
Unavailable
26
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
27
Female Housing, 2 Circuits
278000217
Unavailable
28
Male Terminal | XT Models
278000222
Unavailable
29
Wire Seal
278000218
Unavailable
30
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
31
Rear Lamp Pole | Includes 17 to 19, Models Without Tower
204470022
Unavailable
32
Bulb
204470053
Unavailable
33
COLLAR - Call your local BRP dealership
204470350
Unavailable
34
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
35
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
36
Paddle Wheel Kit
295500108
Unavailable
37
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
38
Loctite 243, 10 ml
293800060
Unavailable
39
Silicone Sealant 51388, 300 ml
296000309
Unavailable
40
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
41
Female Housing, 2 Circuits
278000217
Unavailable
42
Bilge Pump
204471431
Unavailable
43
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
44
Oil Sensor | Includes 44 to 48
278001402
Unavailable
45
Wire Seal
278000218
Unavailable
46
Male Terminal | XT Models
278000222
Unavailable
47
Female Housing, 2 Circuits
278000217
Unavailable
48
Grommet
293720008
Unavailable
49
Temperature Sensor
278002895
Unavailable
50
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
51
Male Terminal | XT Models
278000222
Unavailable
52
Wire Seal
278000218
Unavailable
