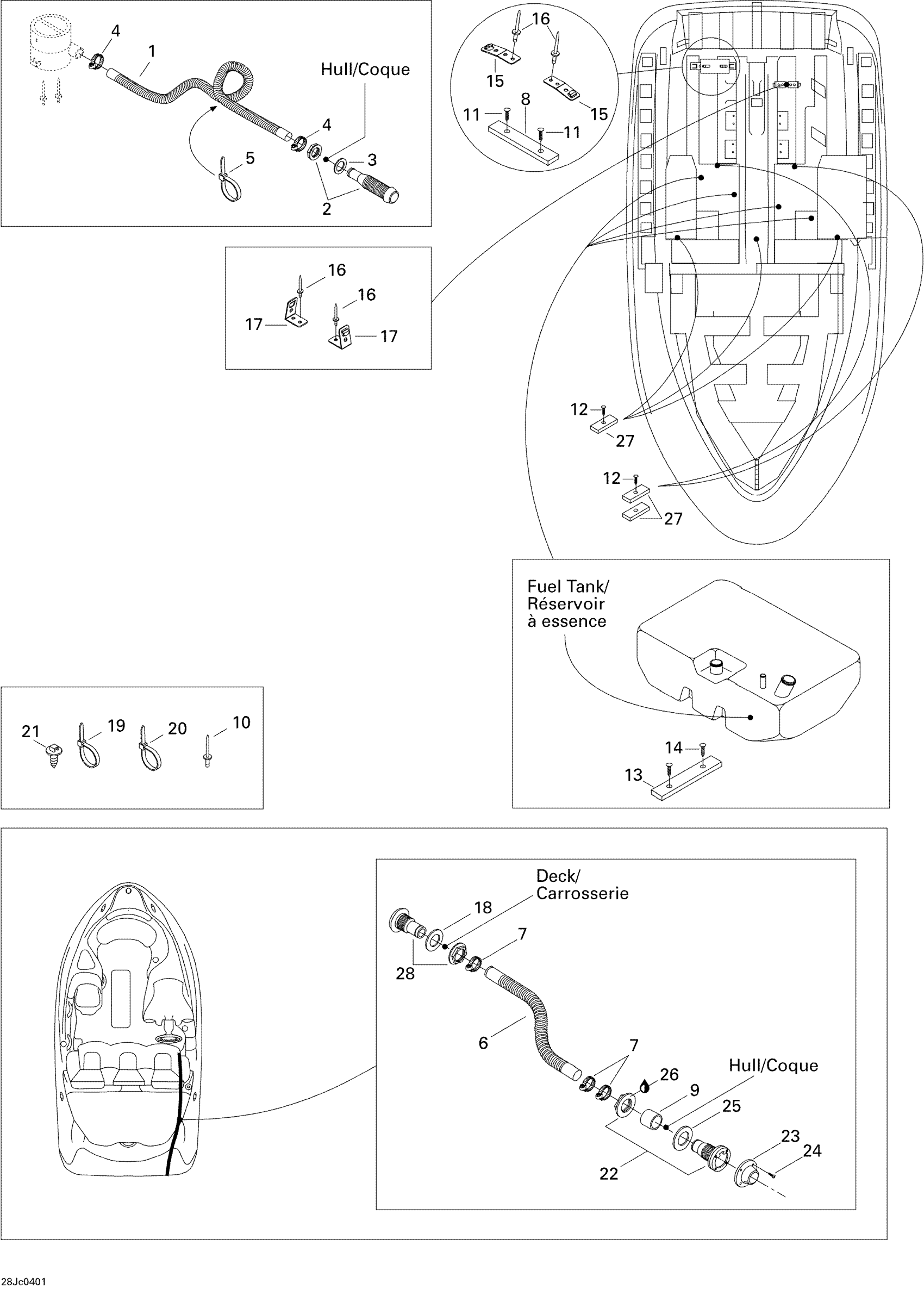

Sea-doo Sportster LE DI, 2004 09- Hull And Accessories 1 Diagram
#
Description
Price
1
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
2
Fitting
293710162
$13.49
3
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
4
Tridon Clamp
293650016
$10.99
5
Tie-Rap 180 mm
414115200
$0.11
6
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
7
Norma Clamp
293650074
$17.05
8
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
9
Scupper Spacer
204060625
Unavailable
10
Pop Rivet 1/8''
293150033
Unavailable
11
Black, Dart
414644300
$0.98
12
Black, Dart
293730006
$0.99
13
Rubber Pad
204060704
Unavailable
14
Black, Dart
293730006
$0.99
15
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
16
Pop Rivet 3/16"
293150088
$0.99
17
Strap Clip 90°
204060017
Unavailable
18
GASKET - Call your local BRP dealership
292800106
Unavailable
19
Tie Wrap 368 mm
293750008
$1.04
20
Tie-Rap 180 mm
414115200
$0.11
21
Mount Dart
293730040
$1.04
22
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
23
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
24
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
25
GASKET - Call your local BRP dealership
292800106
Unavailable
26
Silicone Sealant 51388, 300 ml
296000309
$36.99
27
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
28
FITTING - Call your local BRP dealership
293710060
Unavailable
