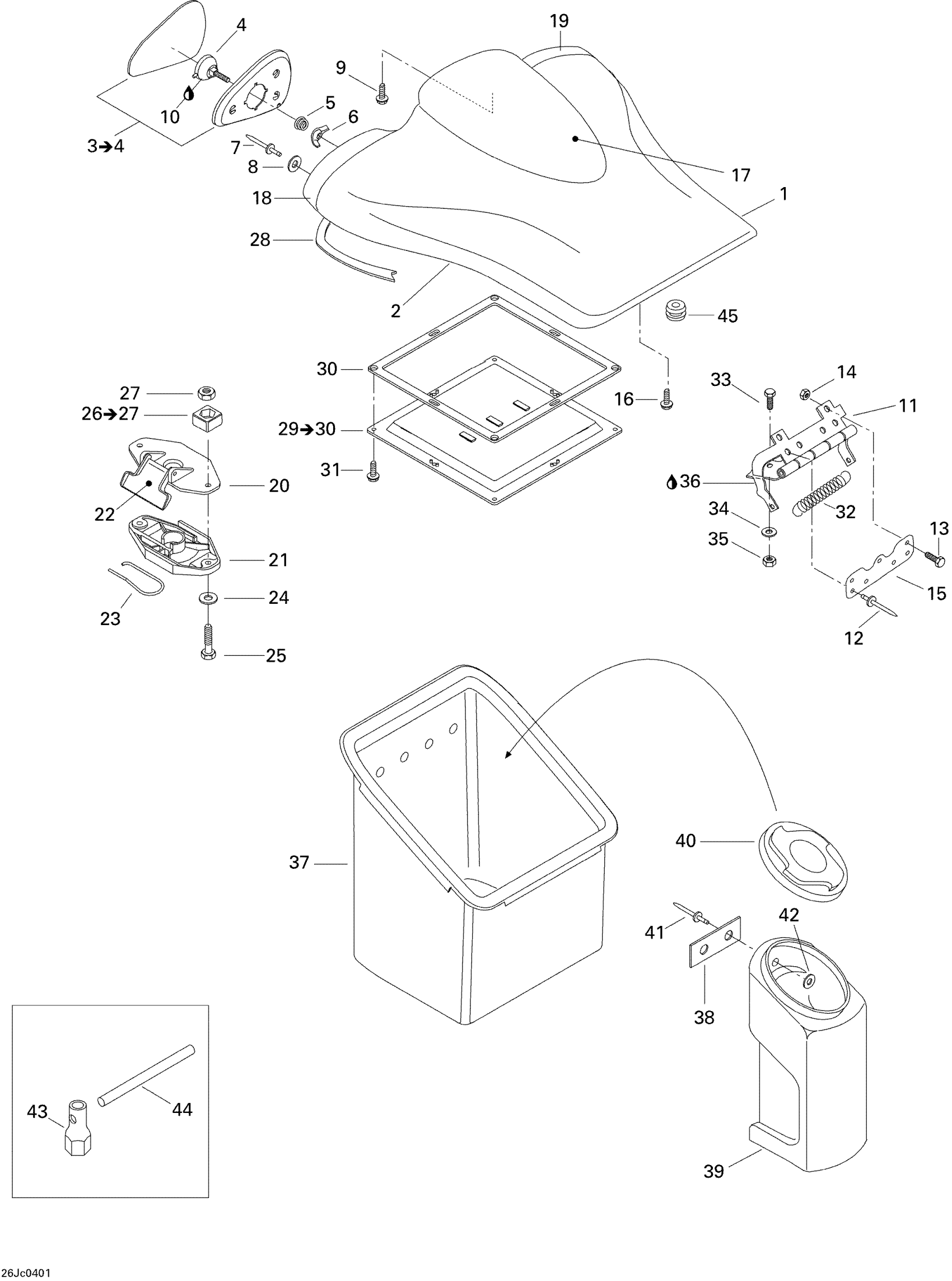

Sea-doo Sportster LE DI, 2004 Front Storage Compartment Diagram
#
1
UPPER STORAGE COVER - Call your local BRP dealership
269500170
Unavailable
2
LOWER STORAGE COVER - Call your local BRP dealership
269500227
Unavailable
3
RH Mirror | Includes 3 to 4
269500055
Unavailable
LH Mirror | Includes 3 to 4
269500056
Unavailable
4
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
5
Mirror Spring
269500082
Unavailable
6
WING NUT M6 - Call your local BRP dealership
232661600
Unavailable
7
Pop Rivet 3/16"
293150008
Unavailable
8
Flat Washer, Emhart
213200016
Unavailable
9
Screw K40 X 10
241140060
Unavailable
10
Synthetic Grease, 400 G
293550010
Unavailable
11
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
12
Pop Rivet 3/16"
293150039
Unavailable
13
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
Unavailable
15
Retainer Plate
269500107
Unavailable
16
Hex. Flange Screw K40 X 16
241141660
Unavailable
17
Deflector
204620237
Unavailable
18
RH Mirror Housing
269500172
Unavailable
19
LH Mirror Housing
269500173
Unavailable
20
Latch Ass'y
269700109
Unavailable
21
Latch Ass'y
269700109
Unavailable
22
Latch Ass'y
269700109
Unavailable
23
Latch Spring
269700017
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
Hex. Screw M6 X 35
207163560
Unavailable
26
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
27
Hex. Nut M6
232061600
Unavailable
28
Seal Tray 1000Mm Long
219704368
Unavailable
29
ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30
269500241
Unavailable
30
TRAY SEAL - Call your local BRP dealership
293200033
Unavailable
31
Hex. Flange Screw K40 X 16
241141660
Unavailable
32
Hinge Spring
204620049
Unavailable
33
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
34
Flat Washer M5, Stainless
234051600
Unavailable
35
Hex. Elastic Nut M5 | X
232551600
Unavailable
36
Synthetic Grease, 400 G
293550010
Unavailable
37
STORAGE TRAY - Call your local BRP dealership
269501940
Unavailable
38
GASKET - Call your local BRP dealership
293250037
Unavailable
39
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
40
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
41
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
42
Flat Washer M3, Stainless
234032600
Unavailable
43
Socket Wrench
204630050
Unavailable
44
Steel Bar
204630051
Unavailable
45
Grommet
204070238
Unavailable
