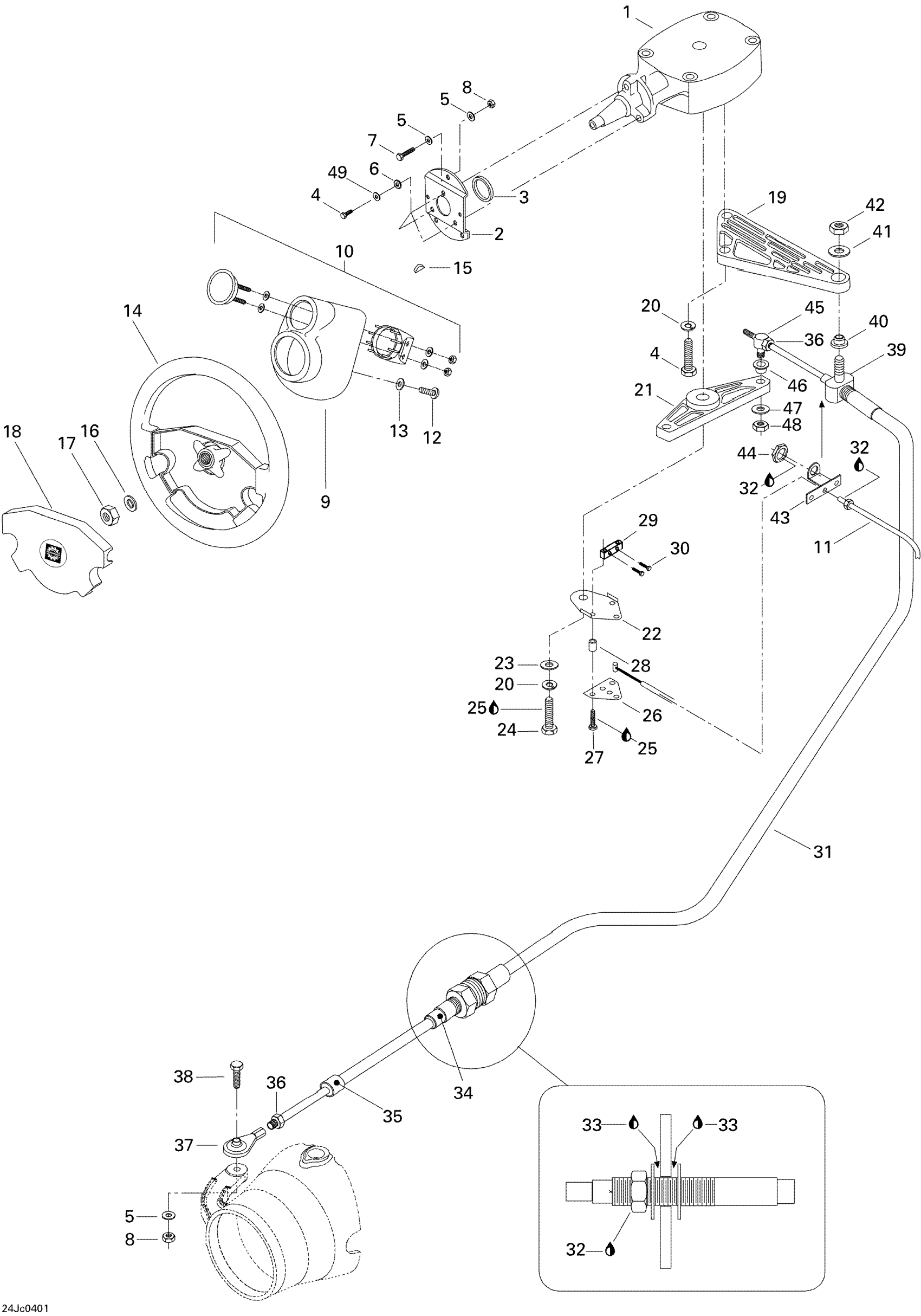

Sea-doo Sportster LE DI, 2004 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models
204390361
Unavailable
2
Support
277000383
Unavailable
3
SPACER - Call your local BRP dealership
277000593
Unavailable
4
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
5
Stainless Flat Washer M6
234061600
$0.33
6
Serrated Lock Washer 8 mm
234481608
$1.15
7
Hex. Screw M6 X 30
207163060
$1.48
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
COLLAR, YELLOW - Call your local BRP dealership
277000507
Unavailable
10
GAUGE CAP - Call your local BRP dealership
204390379
Unavailable
11
Throttle Cable
204390354
Unavailable
12
Hex. Flange Screw K40 X 25
241142560
$2.64
13
Flat Washer 4 mm, Stainless
234042600
$1.15
14
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
15
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
16
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
17
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
18
Steering Cover
204390149
Unavailable
19
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
20
Lock Washer 1/4”
211200025
$1.29
21
ARM - Call your local BRP dealership
204390040
Unavailable
22
Lower Clip
204390285
Unavailable
23
Spacer
204390057
Unavailable
24
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
27
Hex. Screw M6 X 25
207162560
$1.47
28
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
29
Adjustment Block
204390056
Unavailable
30
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
31
Steering Cable
277001765
$248.99
32
Loctite 243, 10 ml
293800060
$21.49
33
Silicone Sealant 51388, 300 ml
296000309
$36.99
34
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
35
Terminal Wiper
277000441
$11.99
36
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
37
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
38
Hex. Screw M6 X 35
207063560
$2.22
39
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
40
Flanged Bushing
293350014
$12.99
41
Flat Washer 10 mm, Stainless
234001600
$1.15
42
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
43
Cable Support
204390035
Unavailable
44
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
45
PIVOT - Call your local BRP dealership
277000456
Unavailable
46
BUSHING - Call your local BRP dealership
293350012
Unavailable
47
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
48
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
49
Flat Washer M6, Stainless
234062600
$0.77
