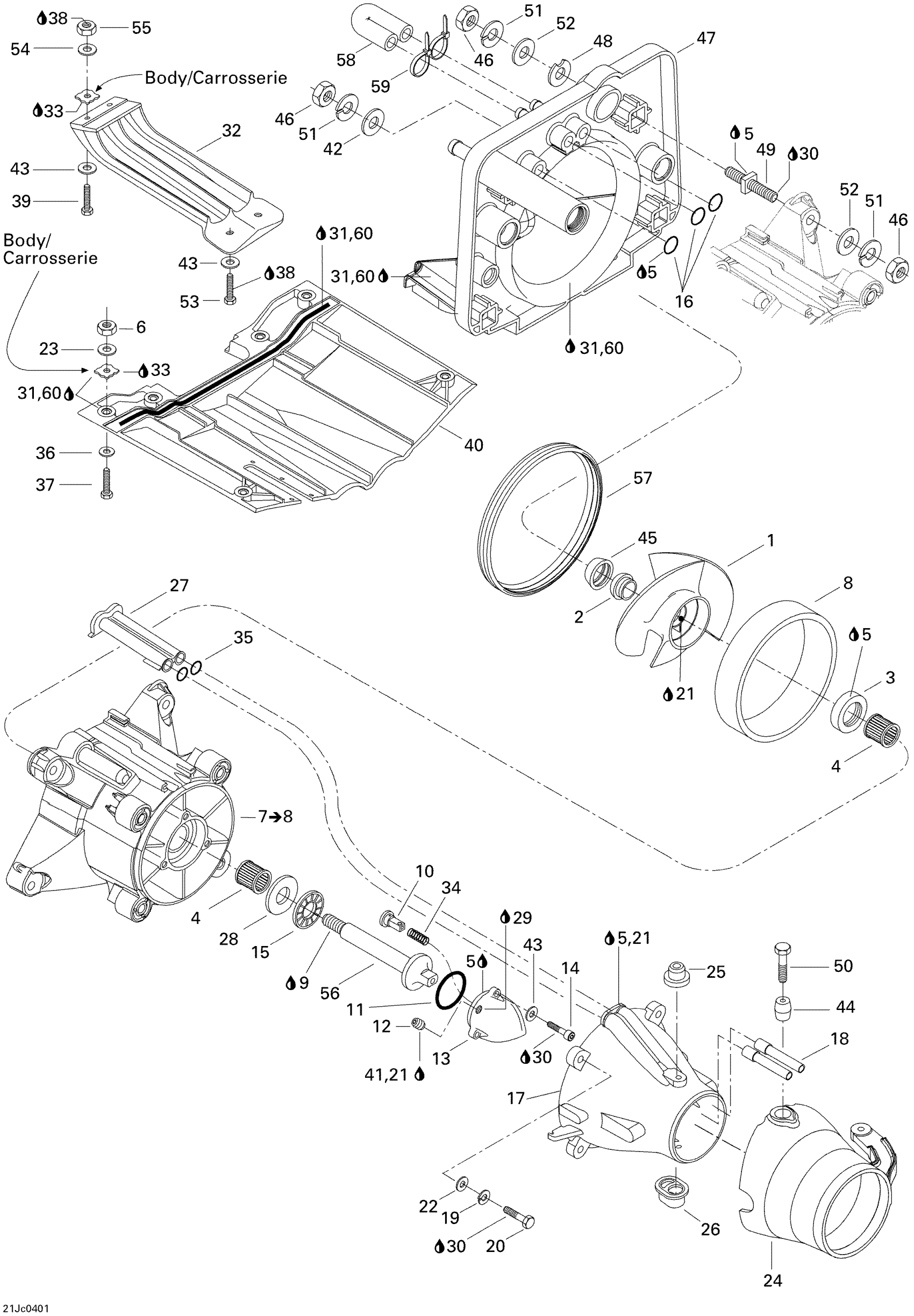

Sea-doo Sportster LE DI, 2004 Propulsion System Diagram

#

Description
Price

1

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Hex. Elastic Nut M8

232581600

$1.48

7

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

8

Wear Ring

271000653

$58.49

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

PUSHER - Call your local BRP dealership

271000978

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

14

Socket Head Screw M6 X 25

205062560

$1.69

15

Thrust-Bearing

293350022

$45.99

16

Watertight Seal

293250084

$7.49

17

Venturi, Black

204160191

Unavailable

18

Siphon Tube

271001133

$10.99

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer M8.5 x 18

293050001

$3.07

23

Flat Washer 8 mm, Stainless

234082600

$2.43

24

Steering Nozzle

204160144

Unavailable

25

Venturi Bushing

293900001

$7.62

26

Plastic Bushing

293900010

$9.59

27

Water Outlet

271000785

$3.80

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

SPRING - Call your local BRP dealership

271000973

Unavailable

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 40

207184060

$2.22

38

Loctite 271, 10 ml

293800005

$26.99

39

Hex. Screw M6 X 45

207164560

$1.89

40

RIDING PLATE, BLACK - Call your local BRP dealership

271000955

Unavailable

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Flat Washer 10 mm, Stainless

234001600

$1.15

43

Stainless Flat Washer M6

234061600

$0.33

44

Venturi Spacer

204160153

Unavailable

45

Impeller Ring

271000517

$9.59

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

204120170

Unavailable

48

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

49

Square Stud

250300022

$20.99

50

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

52

Flat Washer 10 mm, Stainless

234002600

$2.22

53

Hex. Screw M6 X 16

207161660

$1.59

54

Flat Washer M6, Stainless

234062600

$0.77

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

Impeller Shaft

271000965

$116.49

57

Neoprene Seal

293200051

$17.74

58

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

59

Tie Wrap 94 mm | 4X4

293750001

$1.03

60

Instant Gasket

219701421

$51.99
