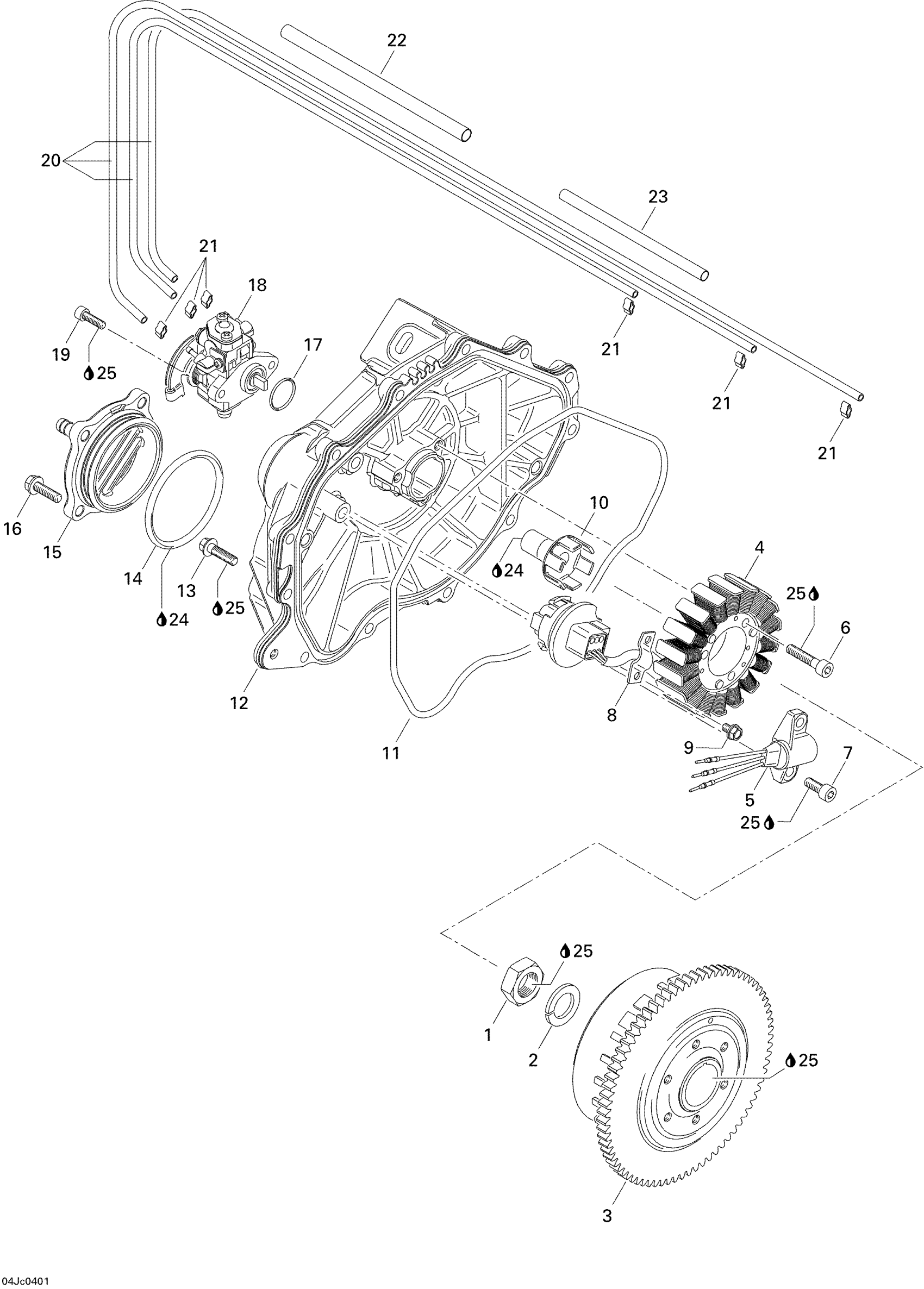

Sea-doo Sportster LE DI, 2004 03- Magneto And Oil Pump Diagram
#
Description
Price
1
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
2
LOCK WASHER 18 MM - Call your local BRP dealership
420945757
Unavailable
3
Flywheel Hub
420966822
Unavailable
4
STATOR PLATE ASS'Y, 270 WATTS - Call your local BRP dealership | Includes 4 to 5
420888656
Unavailable
5
Sensor Ass'y
420966760
Unavailable
6
Socket Head Screw M6 X 35 This part replaces 420640051.
420640052
$5.61
7
Hex.Screw M6 X 20
420441311
$5.18
8
RETAINER PLATE - Call your local BRP dealership
420853080
Unavailable
9
HEX. SCREW M5 X 8 - Call your local BRP dealership
207150844
Unavailable
10
OIL PUMP SHAFT - Call your local BRP dealership
420837395
Unavailable
11
O-RING - Call your local BRP dealership
420931690
Unavailable
12
IGNITION COVER, BLACK - Call your local BRP dealership
420811422
Unavailable
13
HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership
420240033
Unavailable
14
O-RING - Call your local BRP dealership
420850390
Unavailable
15
WATERCHANNEL COVER - Call your local BRP dealership
420811225
Unavailable
16
TAPPING SCREW M6 X 20 - Call your local BRP dealership
420941253
Unavailable
17
O-RING - Call your local BRP dealership
293300018
Unavailable
18
OIL PUMP ASS'Y - Call your local BRP dealership
420888541
$309.99
19
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205051660
Unavailable
20
Oil Hose 1500Mm Long
219704404
$17.26
21
Clamp
293650105
$4.44
22
PROTECTION HOSE - Call your local BRP dealership
420960205
Unavailable
23
PROTECTION HOSE - Call your local BRP dealership
420260465
Unavailable
24
Dow Corning 111, 150 g
413707000
$59.99
25
Loctite 243, 10 ml
293800060
$21.49
