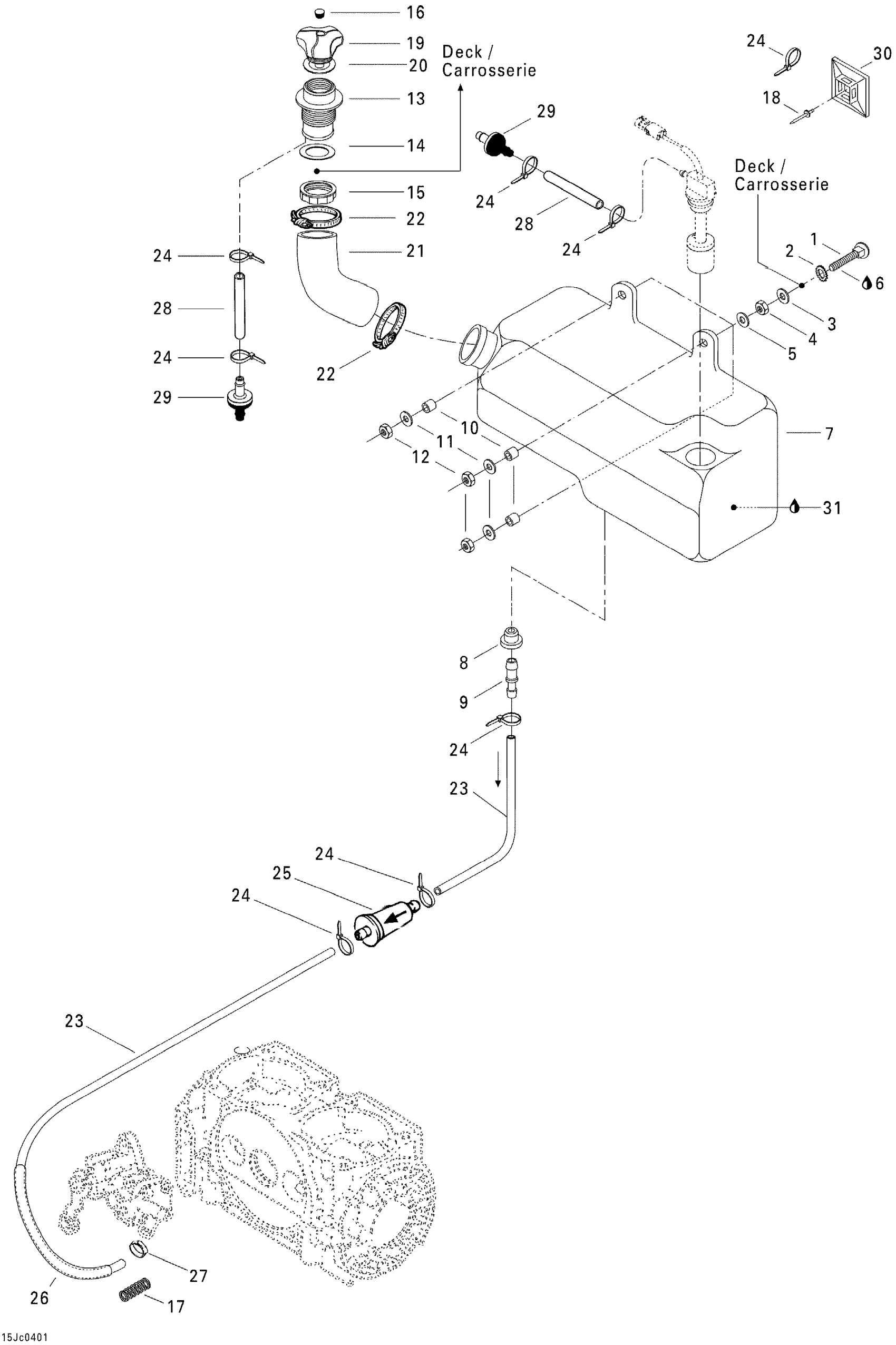

Sea-doo Sportster LE DI, 2004 Oil Injection System Diagram

#

Description
Price

1

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

2

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Loctite 271, 10 ml

293800005

$26.99

7

Oil Tank

204550087

Unavailable

8

Grommet

293720008

$14.75

9

Elbow Fitting 90°

293710070

Unavailable

10

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

13

FILLER NECK - Call your local BRP dealership

275000234

Unavailable

14

Gasket

293250029

$14.82

15

Filler Neck Nut, Fuel

211100012

$14.22

16

Snap Cap, Black

293000076

Unavailable

17

SPRING - Call your local BRP dealership

204550064

Unavailable

18

Pop RIvet 1/8 X ,375

293150285

$0.33

19

OIL CAP - Call your local BRP dealership | Includes 17 to 18

275000221

Unavailable

20

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

21

FORMED HOSE - Call your local BRP dealership

204550172

Unavailable

22

Norma Clamp

293650077

$7.41

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

26

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

27

Oetiker Clamp

293650042

$3.09

28

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

29

Check Valve

275500398

$10.99

30

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

31

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

32

Elbow Fitting 90°

420924652

Unavailable
