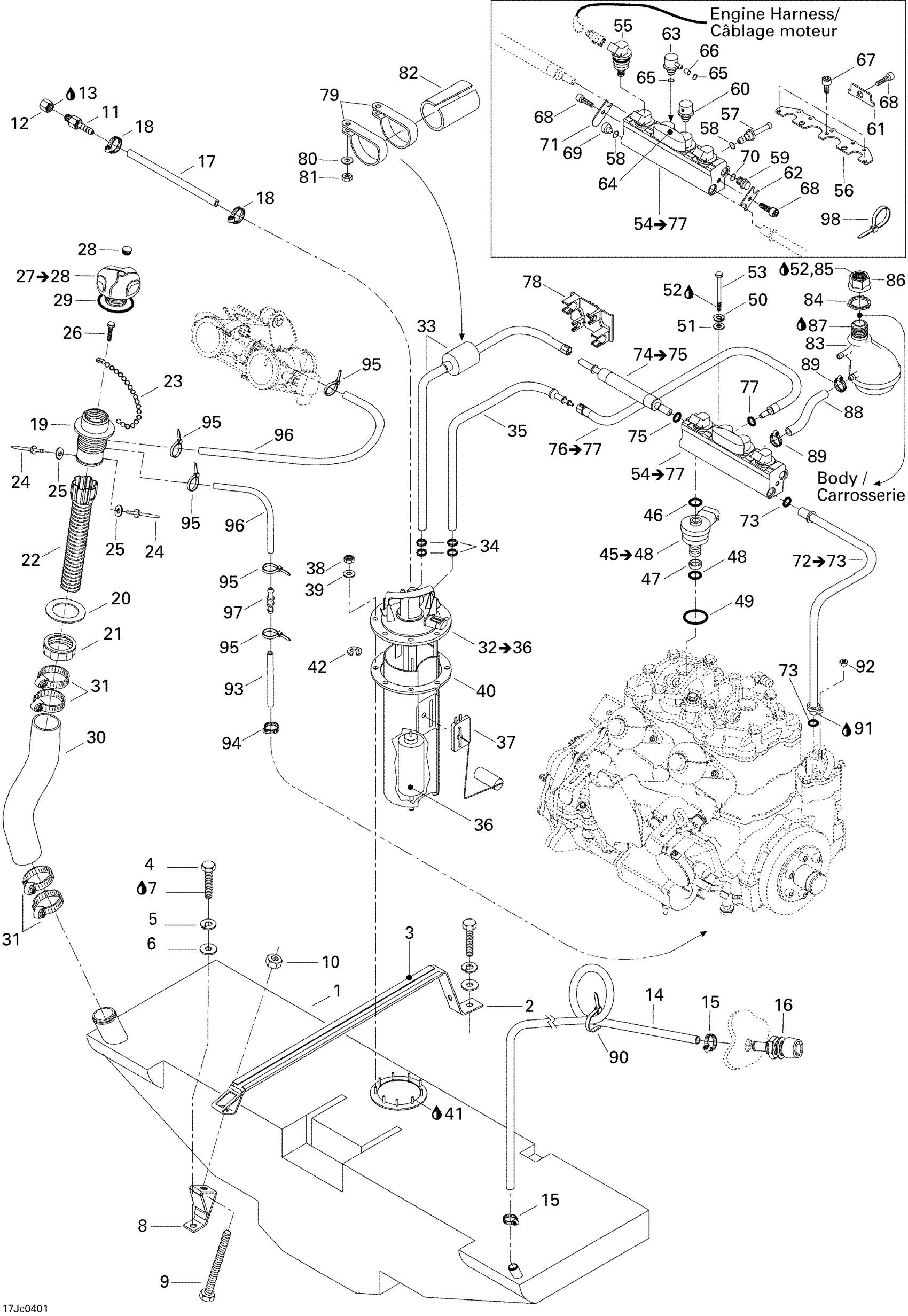

Sea-doo Sportster LE DI, 2004 Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership

204560326

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Loctite 271, 10 ml

293800005

$26.99

8

Strap Pad

275500525

Unavailable

9

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.48

11

COUPLER - Call your local BRP dealership

204560265

Unavailable

12

Pipe Cap

204560263

Unavailable

13

Was 293800013 Loctite 56765

219704454

$65.99

14

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

15

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

16

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

17

Was 275500549 Hose 1/4"

219704357

$194.99

18

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

19

Filler Neck

275500247

Unavailable

20

Gasket

293250029

$14.82

21

Filler Neck Nut, Fuel

211100012

$14.22

22

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

23

Oil Cap Chain

275500015

Unavailable

24

Rivet 1/8”

293150057

Unavailable

25

Flat Washer M3, Stainless

234032600

$0.55

26

Screw K40 X 10

241140060

$1.48

27

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

28

Black, Snap Cap

293000034

$9.39

29

Gasket

293250017

Unavailable

30

Filler Neck Hose

204560163

Unavailable

31

Norma Clamp

293650081

$12.18

32

Fuel Module Ass’y | INCLUDES 32 TO 36

204560267

Unavailable

33

Fuel Feeding Hose Ass’y

204560268

Unavailable

34

Oetiker Clamp | Europe

293650030

$5.19

35

Fuel Return Hose Ass’y

204250214

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Sensor Level

270600012

Unavailable

38

Elastic Stop Nut 5 mm

232551200

$1.47

39

Flat Washer 5 mm, Stainless

234052400

$2.85

40

Gasket

293250088

$14.99

41

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

42

Circlip 5 mm

293370002

$5.50

43

Hose 5/16”, Meter

204560177

Unavailable

44

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

45

Air Injector | Includes 45 to 48

275500633

$329.99

46

O-Ring

293300084

Unavailable

47

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

48

O-Ring

293300076

Unavailable

49

O-Ring

293300083

Unavailable

50

Lock Washer 8 mm, Stainless

234181601

$0.55

51

Stainless, Flat Washer 8 mm

234081600

$0.55

52

Loctite 243, 10 ml

293800060

$21.49

53

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

54

Fuel Distributor | INCLUDES 54 TO 77

275500613

Unavailable

55

Fuel Injector

275500460

$329.99

56

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

57

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

58

O-RING - Call your local BRP dealership

293300069

Unavailable

59

FUEL PLUG - Call your local BRP dealership

275500595

Unavailable

60

Air Regulator

275500463

Unavailable

61

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

62

RETAINER PLATE - Call your local BRP dealership

275500596

Unavailable

63

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

64

Cover

275500449

Unavailable

65

O-Ring

293300072

Unavailable

66

SPACER - Call your local BRP dealership

275500465

Unavailable

67

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

68

Socket Head Screw M6 X 12

205061260

$1.58

69

AIR PLUG - Call your local BRP dealership

275500597

Unavailable

70

O-Ring

275500598

Unavailable

71

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

72

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

73

O-Ring

293300070

Unavailable

74

Hose Ass'y (Fuel Supply) | INCLUDES 74 TO 75

275500519

Unavailable

75

O-RING - Call your local BRP dealership

293300069

Unavailable

76

Hose Ass'y (Fuel Return) | INCLUDES 76 TO 77

275500511

Unavailable

77

O-Ring

293300070

Unavailable

78

Clamp Tie

291001399

Unavailable

79

CLAMP - Call your local BRP dealership

293650139

Unavailable

80

Flat Washer 5 mm

234051500

$0.73

81

Hex. Elastic Nut M5 | X

232551600

$1.15

82

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

83

Noise Reducer

270000569

Unavailable

84

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

85

Was 293800041 Loctite Primer 7649

219704458

$39.99

86

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

87

Silicone Sealant 51388, 300 ml

296000309

$36.99

88

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

89

Tridon Gear Clamp

293650170

$1.99

90

Tie-Rap 180 mm

414115200

$0.11

91

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

92

Hex. Elastic Stop Nut M6

232561600

$1.15

93

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

94

Clamp

293650105

$4.44

95

Tie Wrap 94 mm | 4X4

293750001

$1.03

96

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

97

STRAIGHT FITTING - Call your local BRP dealership

275500444

Unavailable

98

Tie-Rap 180 mm

414115200

$0.11
