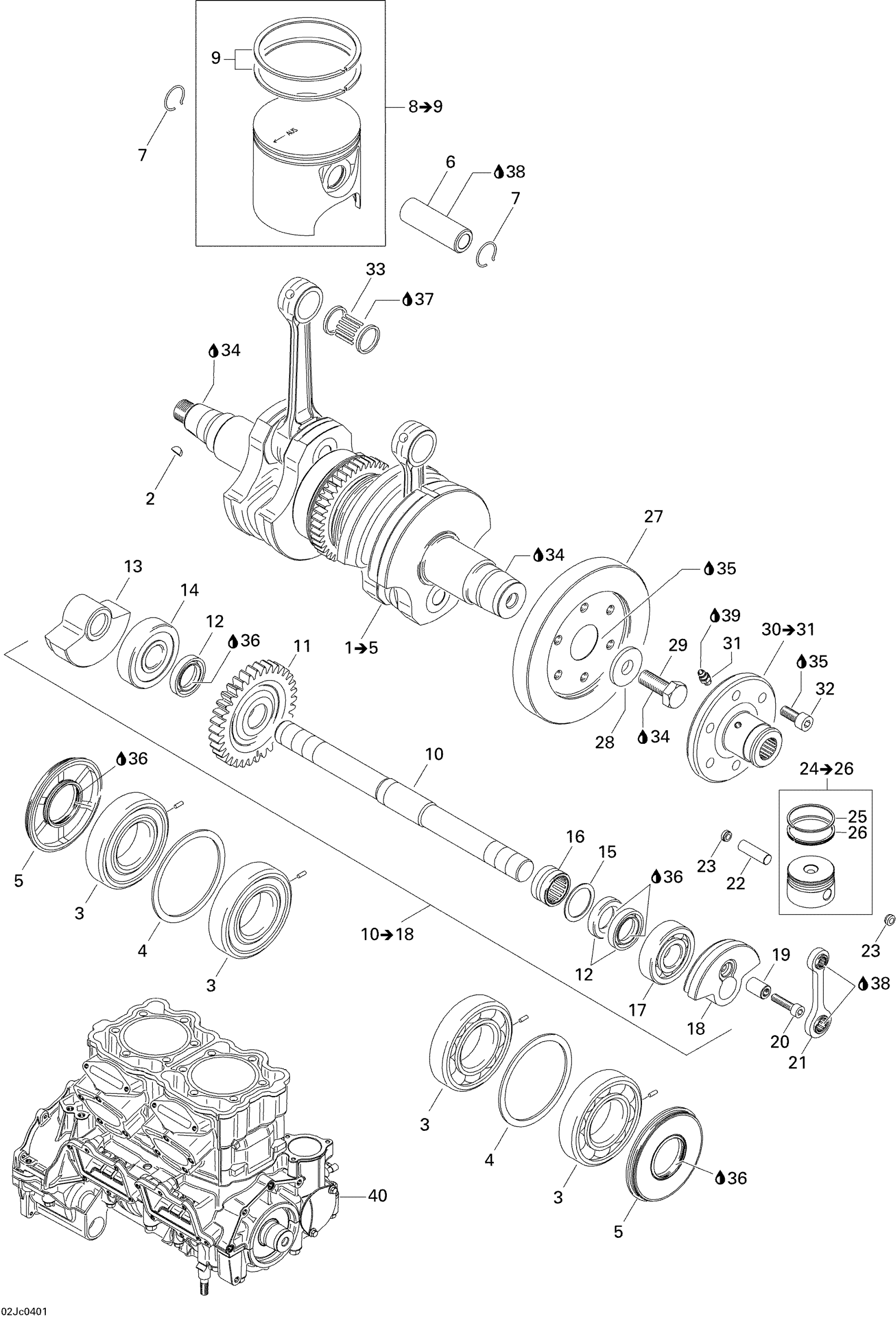

Sea-doo Sportster LE DI, 2004 01- Crankshaft And Pistons Diagram
#
1
Crankshaft Ass'y | Includes 1 to 5
420887767
Unavailable
2
Woodruff Key
420246055
$2.43
3
Bearing_Ball - Call your local BRP dealership
420432271
Unavailable
4
Washer
420926190
$11.63
5
OIL SEAL - Call your local BRP dealership
420931731
Unavailable
6
Piston Pin - Call Your Local BRP Dealership
420916398
Unavailable
7
CIRCLIP - Call your local BRP dealership
420845465
Unavailable
8
PISTON WITH 2 RINGS 87,88 MM - Call your local BRP dealership | Includes 33 to 34
420889045
Unavailable
PISTON OVERSIZE 88,13 MM - Call your local BRP dealership | Includes 33 to 34
420889046
Unavailable
9
RECTANGULAR RING - Call your local BRP dealership
420815267
Unavailable
RECTANGULAR RING, OVERSIZE - Call your local BRP dealership
420815268
Unavailable
10
Shaft Balance Ass‘y | INCLUDES 10 TO 18
420837445
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
BALL BEARING 6304 - Call your local BRP dealership
420932097
Unavailable
15
Washer
420927192
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership
420232555
Unavailable
17
Ball Bearing 6304
420932096
Unavailable
18
MASS BALANCE - Call your local BRP dealership
420818955
Unavailable
19
COMPRESSOR PIN - Call your local BRP dealership
420921460
Unavailable
20
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership
420640690
Unavailable
21
CONROD ASS?Y - Call your local BRP dealership
420917505
Unavailable
22
PISTON PIN 9 X 30 - Call your local BRP dealership
420916430
Unavailable
23
DISTANCE BUSHING - Call your local BRP dealership
420847940
Unavailable
24
PISTON ASS?Y 38.95 MM - Call your local BRP dealership | Includes 24 to 26
420888550
Unavailable
25
RECTANGULAR RING - Call your local BRP dealership
420215970
Unavailable
26
OIL SCRAPER RING - Call your local BRP dealership
420215960
Unavailable
27
Coupling, Silver
420958082
Unavailable
28
WASHER - Call your local BRP dealership
420827782
Unavailable
29
HEX. SCREW M12 X 30 - Call your local BRP dealership
420640120
Unavailable
30
Coupling Flange Ass'y (Silver) | INCLUDES 30 TO 31
420958122
Unavailable
31
GREASE FITTING - Call your local BRP dealership
420499113
Unavailable
32
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
33
Bearing_Needle This part replaces 420832552.
420832553
$30.49
34
Loctite 243, 10 ml
293800060
$21.49
35
Sealant Loctite 648
219703000
$45.99
36
Dow Corning 111, 150 g
413707000
$59.99
37
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Synthetic Grease, 400 G
293550010
Unavailable
40
Short Block Ass‘Y, 947 Di
420094706
Unavailable
43
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership
421000416
Unavailable
41
ENGINE GASKET SET - Call your local BRP dealership
420888134
Unavailable
42
CYLINDER GASKET SET - Call your local BRP dealership
420888139
Unavailable
