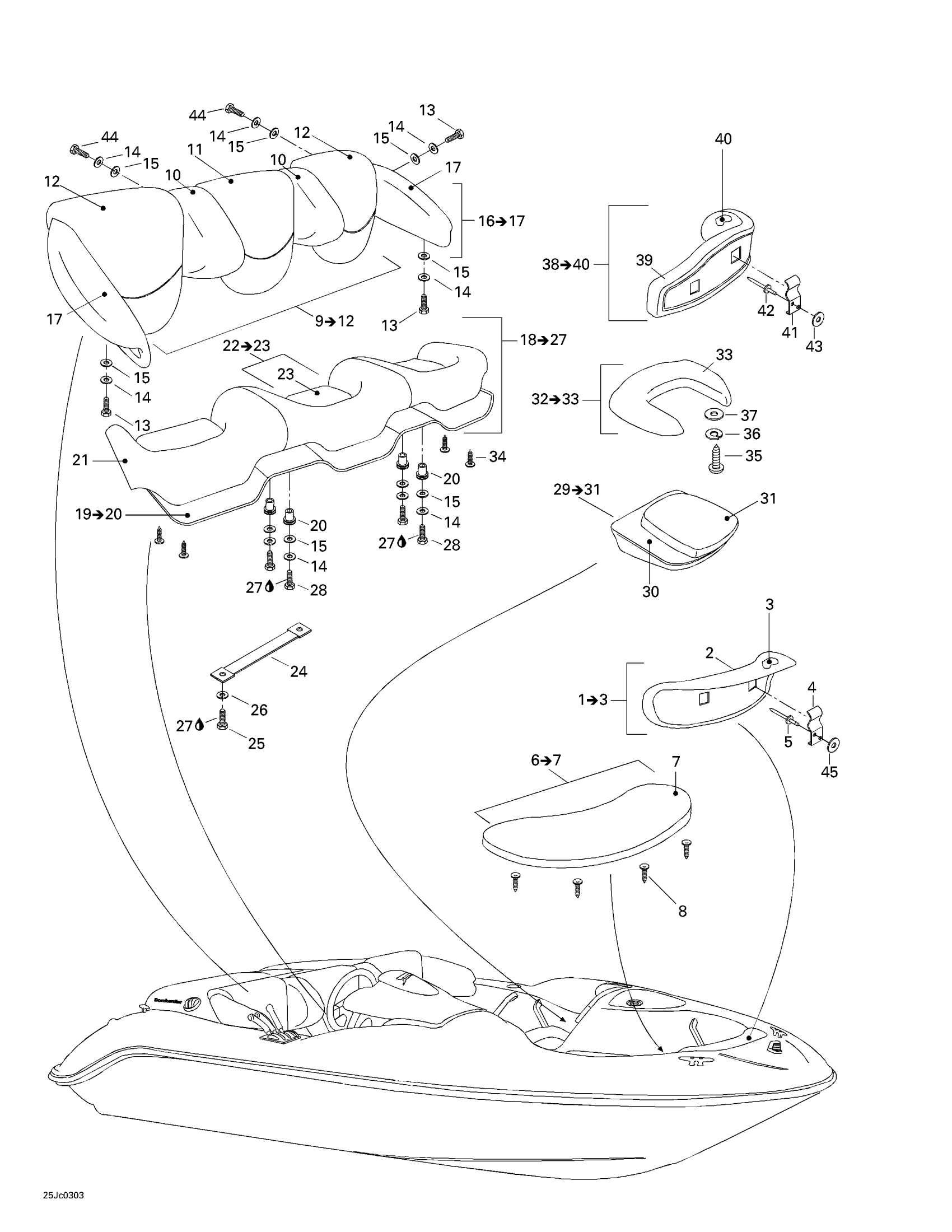

Sea-doo Sportster LE, 5769, 2003 Seats Diagram

#

Description
Price

1

Front Backrest, Bright Yellow | Includes 1 to 2

204611715

Unavailable

2

Front Backrest Cover

204611716

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Front Seat | Includes 6 to 7

204611717

Unavailable

7

Front Seat Cover

204611718

Unavailable

8

Black, Dart

293730006

$0.99

9

Rear Backrest Ass'y | INCLUDES 9 TO 13

204611719

Unavailable

10

Backrest Cover, Bright Yellow

204611720

Unavailable

11

Backrest Cover (Center)

204611721

Unavailable

12

Backrest Cover RH (Starboard)

204611722

Unavailable

Backrest Cover LH (Port Side)

204611723

Unavailable

13

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

16

Armrest Ass'y, Starboard | Includes 18 to 19

204611726

Unavailable

Armrest Ass'y, Port Side | Includes 18 to 19

204611724

Unavailable

17

Armrest Cover

204611727

Unavailable

18

Rear Seat Ass'y | Includes 18 - 27.

204611728

Unavailable

19

Rear Seat Base | Includes 35 - 36.

204610303

Unavailable

20

Anchor Washer

204100005

Unavailable

21

Rear Seat Cover, Bright Yellow

204611729

Unavailable

22

Cushion Ass'y

204611730

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Rear Seat Strap, Bright Yellow

204611732

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.59

26

Flat Washer M6, Stainless

234062600

$0.77

27

Loctite 243, 10 ml

293800060

$21.49

28

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

29

Keeper Seat Ass'y | INCLUDES 34 TO 36

204611733

Unavailable

30

Keeper Seat Base Cover

204610557

Unavailable

31

Keeper Seat Cover

204611734

Unavailable

32

Keeper Seat Ring Ass'y, Bright Yellow | Includes 38 to 39

204611735

Unavailable

33

Keeper Seat Ring Cover

204611736

Unavailable

34

Dart

293730021

$7.79

35

Tapping Phillips Screw 6.3 X 38

209663860

Unavailable

36

Lock Washer Helical M6

234161601

$1.15

37

Stainless Flat Washer M6

234061600

$0.33

38

Keeper Seat Backrest | Includes 46 to 47

204611652

Unavailable

39

Keeper Seat Backrest Cover

204611737

Unavailable

40

Keeper Seat Backrest Foam

269000339

Unavailable

41

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

42

Pop Rivet 3/16"

293150043

$2.09

43

Stainless Flat Washer M6

234061600

$0.33

44

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

45

Stainless Flat Washer M6

234061600

$0.33

46

Sea-doo Logo

204901090

Unavailable
