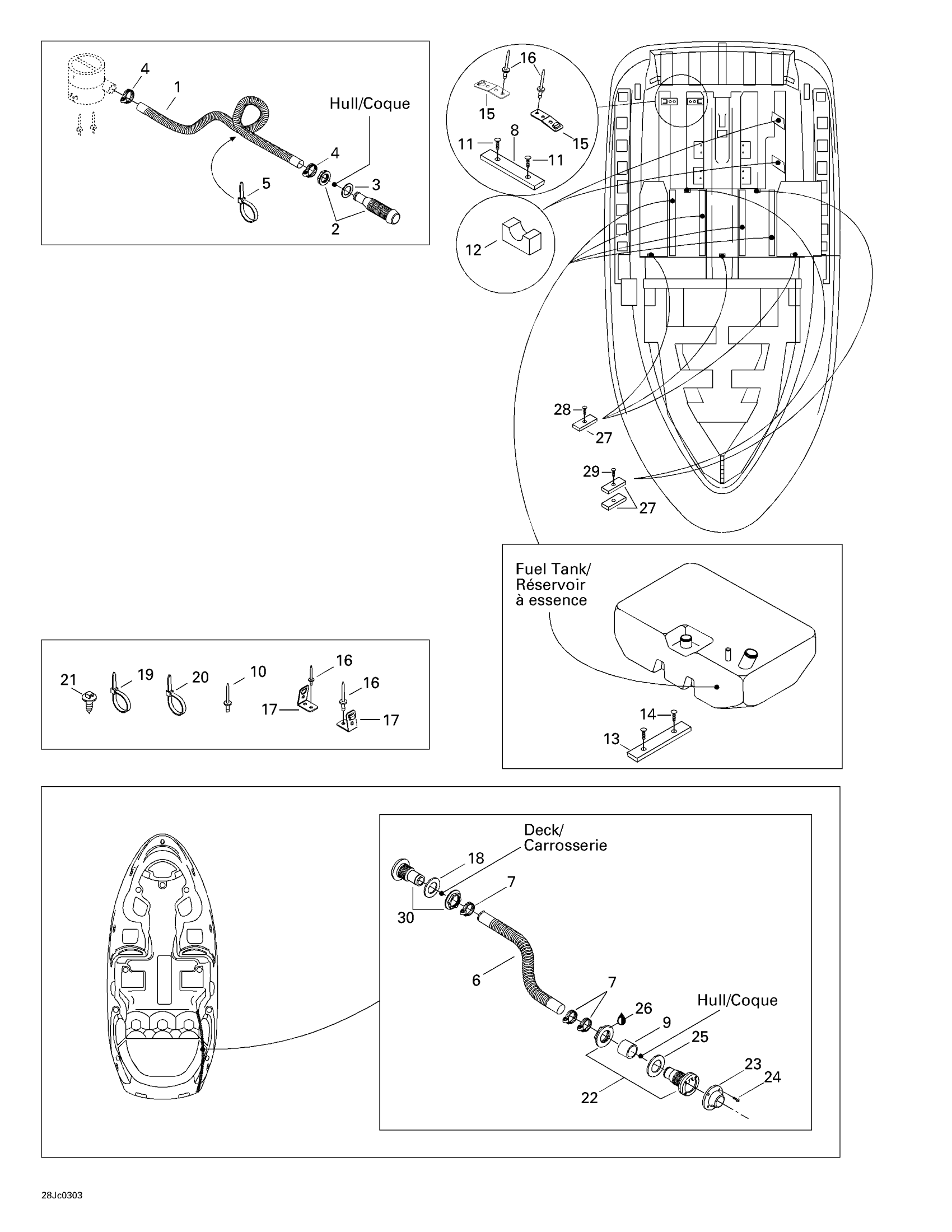

Sea-doo Sportster LE, 5769, 2003 Hull And Accessories Diagram

#

Description
Price

1

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

2

Fitting

293710162

$13.49

3

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

4

Tridon Clamp

293650016

$10.99

5

Tie-Rap 180 mm

414115200

$0.11

6

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

7

Norma Clamp

293650074

$17.05

8

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

9

Scupper Spacer

204060625

Unavailable

10

Pop Rivet 1/8”

293150015

$0.40

11

Black, Dart

414644300

$0.98

12

Support Foam Lower

204060190

Unavailable

13

Rubber Pad

204060704

Unavailable

14

Black, Dart

293730006

$0.99

15

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

16

Pop Rivet 3/16"

293150088

$0.99

17

Strap Clip 90°

204060017

Unavailable

18

GASKET - Call your local BRP dealership

292800106

Unavailable

19

Tie Wrap 368 mm

293750008

$1.04

20

Tie-Rap 180 mm

414115200

$0.11

21

Mount Dart

293730040

$1.04

22

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

23

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

24

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

25

GASKET - Call your local BRP dealership

292800106

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$36.99

27

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

28

Black, Dart

293730006

$0.99

29

Black Dart

293730014

$0.99

30

FITTING - Call your local BRP dealership

293710060

Unavailable
