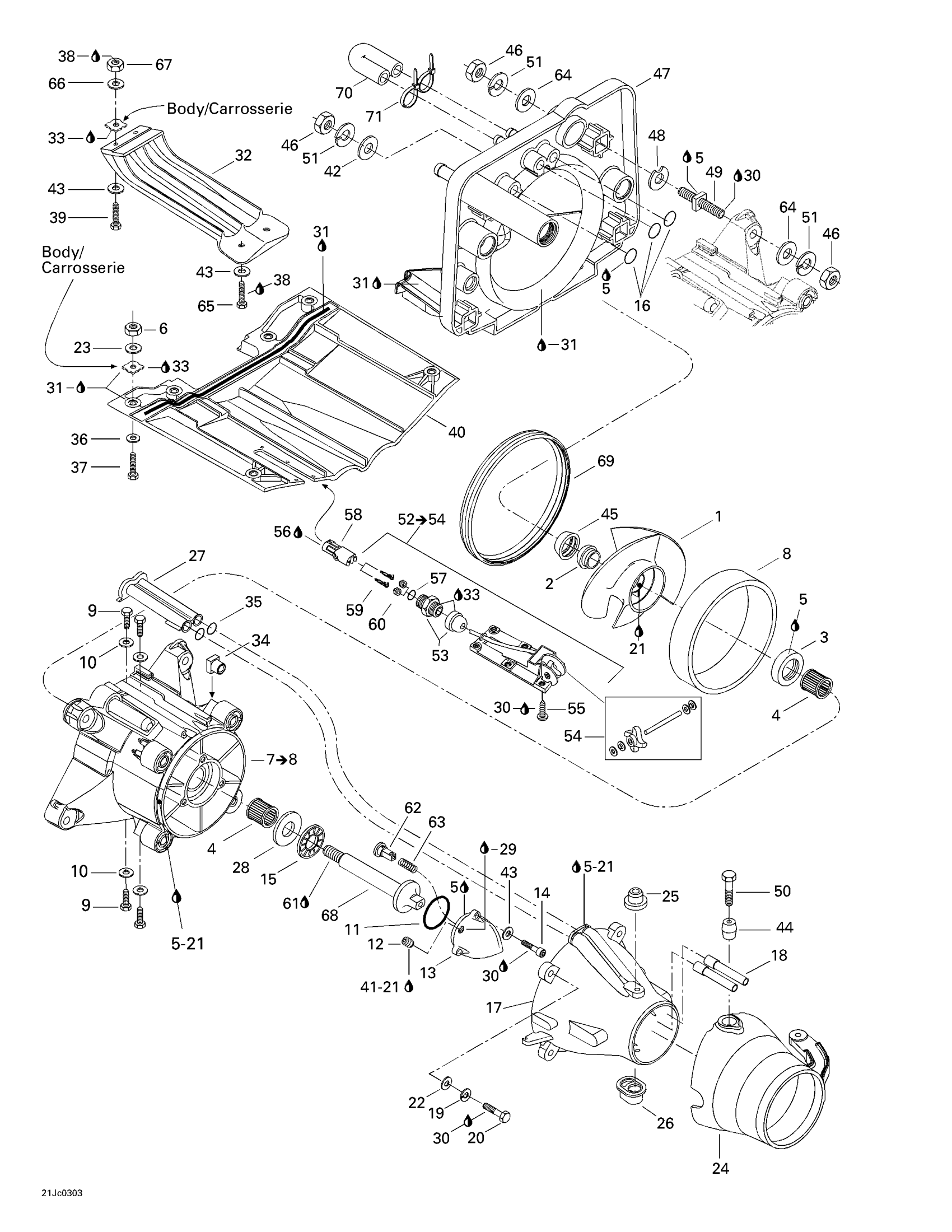

Sea-doo Sportster LE, 5769, 2003 Propulsion System Diagram

#

Description
Price

1

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

2

Impeller Boot

271000516

$6.86

3

Oil Seal

267000094

$17.52

4

Needle Bearing

293350017

$21.42

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

6

Hex. Elastic Nut M8

232581600

$1.25

7

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

8

Wear Ring

271000653

$47.42

9

Hex. Plastite Screw #10 X 3/8"

250000040

$0.81

10

Flat Washer M5, Stainless

234051600

$0.64

11

O-Ring

293300011

$6.46

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

14

Socket Head Screw M6 X 25

205062560

$1.42

15

Thrust-Bearing

293350022

$35.72

16

Watertight Seal

293250084

$5.81

17

Venturi, Black

204160191

Unavailable

18

Siphon Tube

271001133

$7.05

19

Lock Washer 8 mm, Stainless

234181601

$0.46

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$41.99

22

Flat Washer M8.5 x 18

293050001

$1.29

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Steering Nozzle

204160144

Unavailable

25

Venturi Bushing

293900001

$6.14

26

Plastic Bushing

293900010

$7.15

27

Water Outlet

271000785

$3.04

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$35.72

34

Square Nut M8

211100033

$14.27

35

O-Ring

293300013

$5.69

36

Stainless, Flat Washer 8 mm

234081600

$0.46

37

Hex. Screw M8 X 40

207184060

$1.85

38

Loctite 271, 10 ml

293800005

$20.77

39

Hex. Screw M6 X 45

207164560

$1.51

40

RIDING PLATE, BLACK - Call your local BRP dealership

271000955

Unavailable

41

Was 293800013 Loctite 56765

219704454

$63.40

42

Flat Washer 10 mm, Stainless

234001600

$0.91

43

Stainless Flat Washer M6

234061600

$0.25

44

Venturi Spacer

204160153

Unavailable

45

Impeller Ring

271000517

$6.86

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

204120170

Unavailable

48

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

49

Square Stud

250300022

$15.57

50

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

51

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

54

Paddle Wheel Kit

295500108

Unavailable

55

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

56

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

57

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

58

Female Housing, 2 Circuits

278000217

$7.59

59

Male Terminal | XT Models

278000222

$2.55

60

Wire Seal

278000218

$3.48

61

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

62

PUSHER - Call your local BRP dealership

271000978

Unavailable

63

SPRING - Call your local BRP dealership

271000973

Unavailable

64

Flat Washer 10 mm, Stainless

234002600

$1.85

65

Hex. Screw M6 X 16

207161660

$1.22

66

Flat Washer M6, Stainless

234062600

$0.64

67

Hex. Elastic Stop Nut M6

232561600

$0.92

68

Impeller Shaft

271000965

$94.22

69

Neoprene Seal

293200051

$12.97

70

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

71

Tie Wrap 94 mm | 4X4

293750001

$0.83
