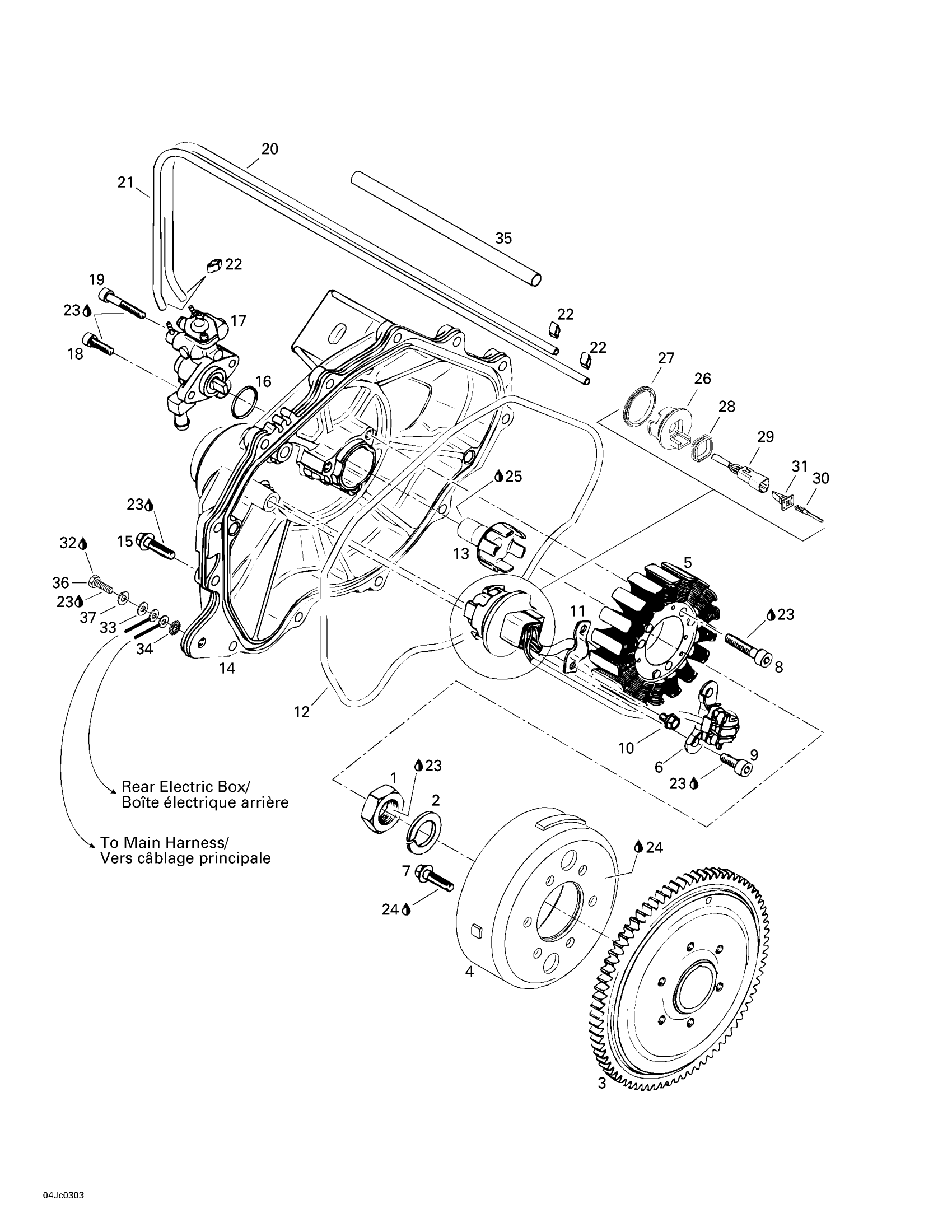

Sea-doo Sportster LE, 5769, 2003 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

Unavailable

3

Flywheel Hub

420966682

Unavailable

4

MAGNETO FLYWHEEL - Call your local BRP dealership

420887945

Unavailable

5

STATOR PLATE ASS'Y - Call your local BRP dealership

420886588

Unavailable

6

Sensor Ass'y

420966832

$184.99

7

Socket Head Screw M6 x 16

420640171

Unavailable

8

Socket Head Screw M6 X 30

205063044

$1.69

9

Socket Head Screw M6 x 16

420241237

$2.22

10

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

11

RETAINER PLATE - Call your local BRP dealership

420853080

Unavailable

12

O-RING - Call your local BRP dealership

420931690

Unavailable

13

OIL PUMP SHAFT - Call your local BRP dealership

420837390

Unavailable

14

Ignition Cover

420811066

Unavailable

15

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

OIL PUMP ASS'Y - Call your local BRP dealership

420888690

Unavailable

18

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

19

Socket Head Screw M5 x 30

420940888

Unavailable

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Oil Hose 1500Mm Long

219704404

$17.26

22

Clamp

420256408

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99

25

Dow Corning 111, 150 g

413707000

$59.99

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

$19.99

30

Male Terminal

278000631

$4.39

31

Female Lock, 6 Circuits

278000735

$3.19

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Flat Washer M6, Stainless

234062600

$0.77

34

External Serrated Lock Washer 6 mm

234461608

$1.15

35

PROTECTOR HOSE - Call your local BRP dealership

420260437

Unavailable

36

Hex. Screw M6 X 25

207162560

$1.47

37

Lock Washer Helical M6

234161601

$1.15

38

Engine Gasket Set (Not Shown)

420889150

Unavailable

39

SET-GASKET CYL - Call your local BRP dealership

420889155

Unavailable
