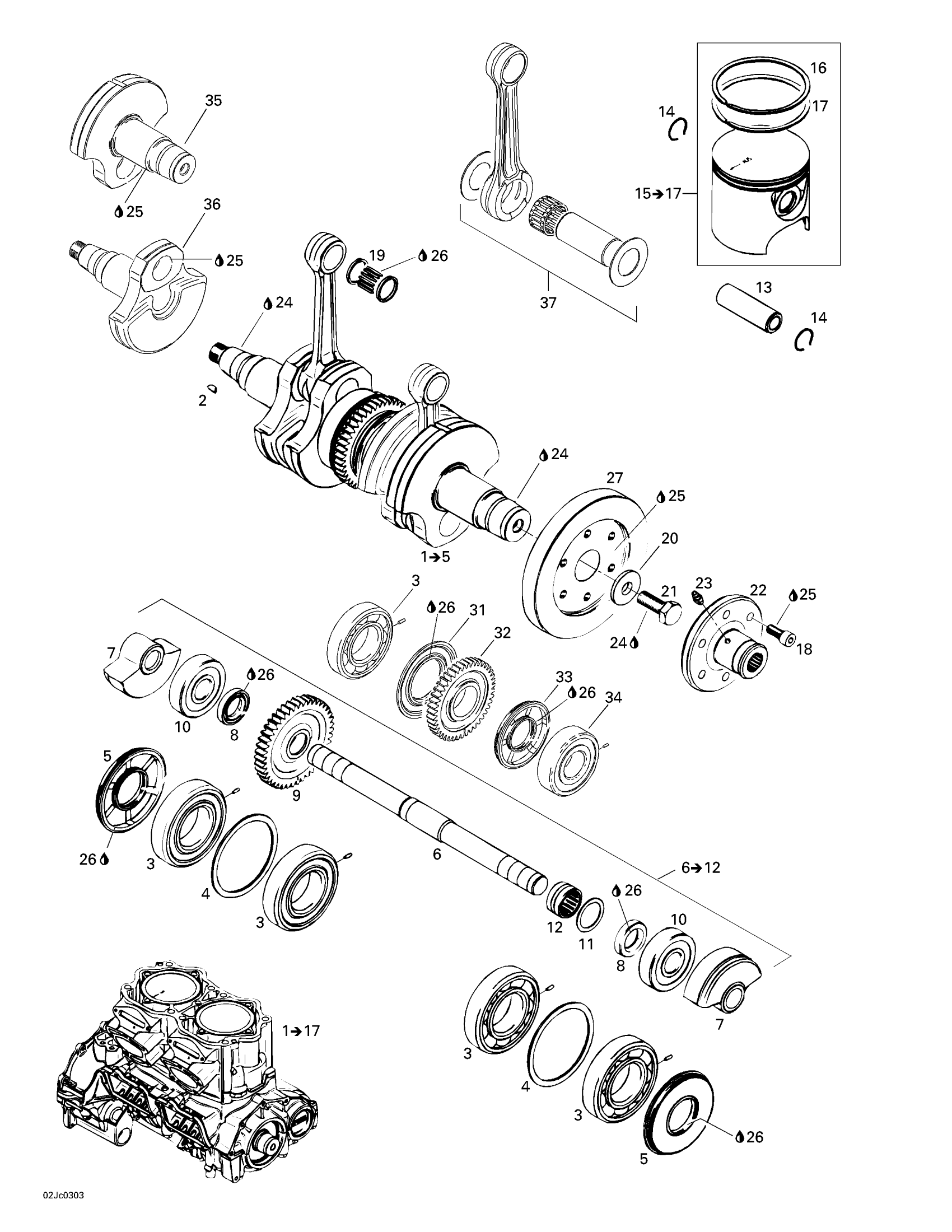

Sea-doo Sportster LE, 5769, 2003 Crankshaft And Pistons Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

420094703

Unavailable

1

Crankshaft Ass'y | Includes 1 - 5.

420887762

Unavailable

2

Woodruff Key

420246055

$2.43

3

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Washer

420926190

$11.63

5

OIL SEAL - Call your local BRP dealership

420931731

Unavailable

6

Balance Shaft Ass'y | Includes 6 - 12.

420837387

Unavailable

6

Shaft Balance

420837380

Unavailable

7

Balance Mass 947

420818950

Unavailable

8

SEAL OIL - Call your local BRP dealership

420930395

Unavailable

9

Gear Balance, 43 Teeth

420834340

Unavailable

10

Bearing_Ball - Call your local BRP dealership

420932098

Unavailable

11

Washer

420927192

Unavailable

12

NEEDLE BEARING - Call your local BRP dealership

420232555

Unavailable

13

Piston Pin - Call Your Local BRP Dealership

420916398

Unavailable

14

CIRCLIP - Call your local BRP dealership

420845465

Unavailable

15

PISTON WITH 2 RINGS, 87.91 MM - Call your local BRP dealership | Includes 15 - 17.

420888577

Unavailable

PISTON OVERSIZE, 2 RINGS, 88.14 MM - Call your local BRP dealership

420888578

Unavailable

16

SEMI-TRAPEZ RING 88.00 MM (GREY) - Call your local BRP dealership

420815195

Unavailable

Semi-Trapez Ring 88.25 mm (Grey)

420815193

Unavailable

17

Semi-Trapez Ring 88.00 mm (Silver)

420815175

Unavailable

Semi-Trapez Ring 88.25 mm (Silver)

420815176

Unavailable

18

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

19

Bearing_Needle This part replaces 420832552.

420832553

$30.49

20

WASHER - Call your local BRP dealership

420827782

Unavailable

21

HEX. SCREW M12 X 30 - Call your local BRP dealership

420640120

Unavailable

22

Coupling Flange Ass'y (Silver) | INCLUDES 30 TO 31

420958122

Unavailable

23

GREASE FITTING - Call your local BRP dealership

420499113

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Sealant Loctite 648

219703000

$45.99

26

Dow Corning 111, 150 g

413707000

$59.99

27

Coupling, Silver

420958082

Unavailable

29

Engine Gasket Set (Not Shown)

420889150

Unavailable

30

SET-GASKET CYL - Call your local BRP dealership

420889155

Unavailable

31

OIL SEAL - Call your local BRP dealership

420931758

Unavailable

32

Crankshaft Gear 43T

420834319

Unavailable

33

OIL SEAL - Call your local BRP dealership

420931714

Unavailable

34

BALL BEARING - Call your local BRP dealership

420932579

Unavailable

35

CRANKSHAFT, MAG 947 - Call your local BRP dealership

420818920

Unavailable

36

Crankshaft, PTO 947

420818910

Unavailable

37

ROD REPAIR KIT - Call your local BRP dealership This part replaces 420887764.

420891164

$319.99
