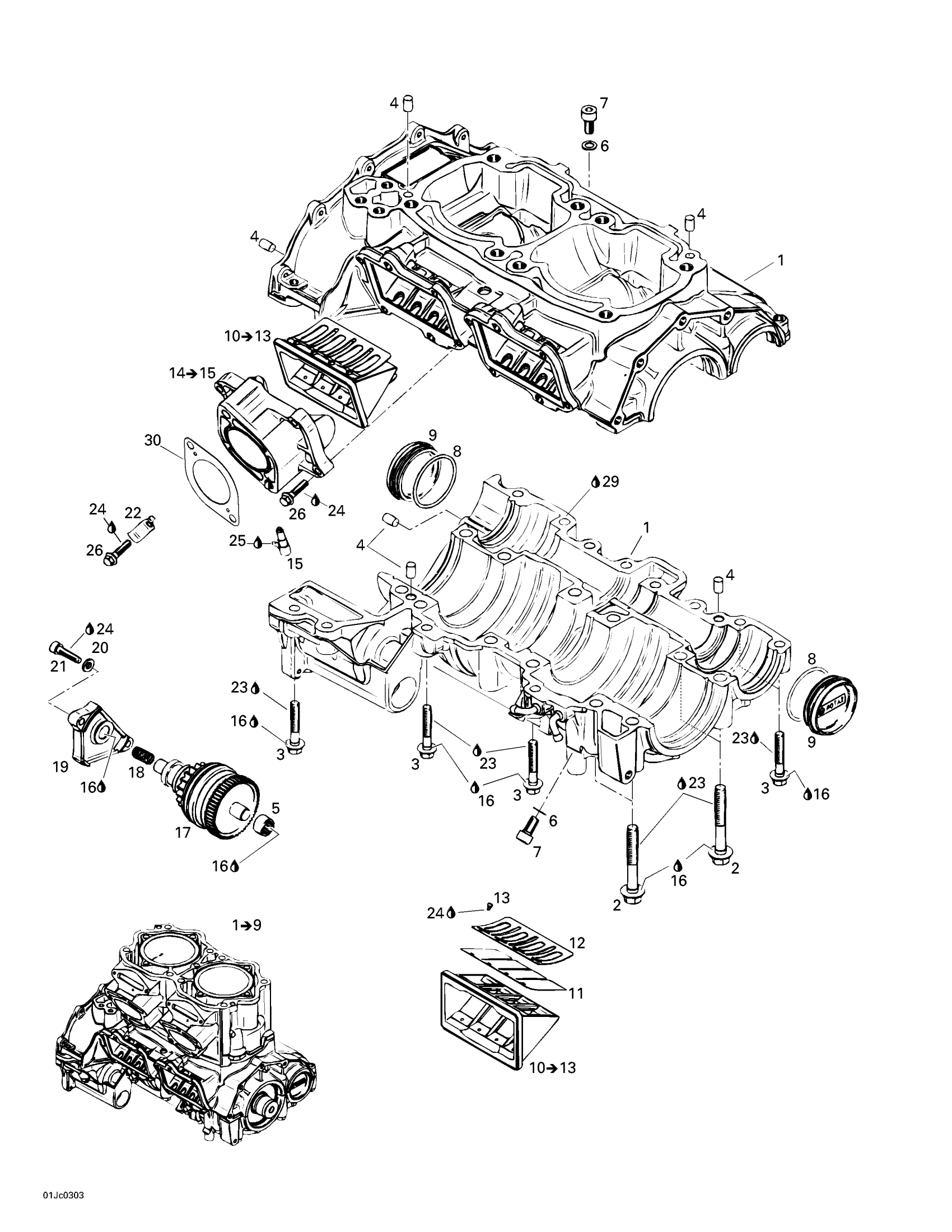

Sea-doo Sportster LE, 5769, 2003 Crankcase And Reed Valve Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

420094703

Unavailable

1

Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.

420887754

Unavailable

2

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

Unavailable

3

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940638

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Needle Bushing

420232482

$20.99

6

Sealing Ring

420950141

$2.00

7

Socket Head Screw M8 X 16

205081660

Unavailable

8

O-RING - Call your local BRP dealership

420230300

Unavailable

9

BEARING COVER - Call your local BRP dealership

420811200

Unavailable

10

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

$189.99

11

REED PEDAL - Call your local BRP dealership

420924612

Unavailable

12

REED PEDAL STOP - Call your local BRP dealership

420924617

Unavailable

13

Phillips Screw M3 X 5

420941215

$1.69

14

CARBURATOR ADAPTER ASS'Y - Call your local BRP dealership | Includes 14 - 15.

420867833

Unavailable

15

Check Valve

420956511

$35.99

16

Dow Corning 111, 150 g

413707000

$59.99

17

Starter Drive Ass'y

420888042

$369.99

18

Spring

420938204

$7.65

19

COVER - Call your local BRP dealership

420811210

Unavailable

20

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

21

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

22

WIRE SUPPORT - Call your local BRP dealership

420953330

Unavailable

23

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

24

Loctite 243, 10 ml

293800060

$21.49

25

Sealant Loctite 648

219703000

$45.99

26

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

Unavailable

27

Engine Gasket Set (Not Shown)

420889150

Unavailable

28

SET-GASKET CYL - Call your local BRP dealership

420889155

Unavailable

29

Loctite 5910, 300 ml

293800081

$57.99

30

GASKET - Call your local BRP dealership

293250135

Unavailable
