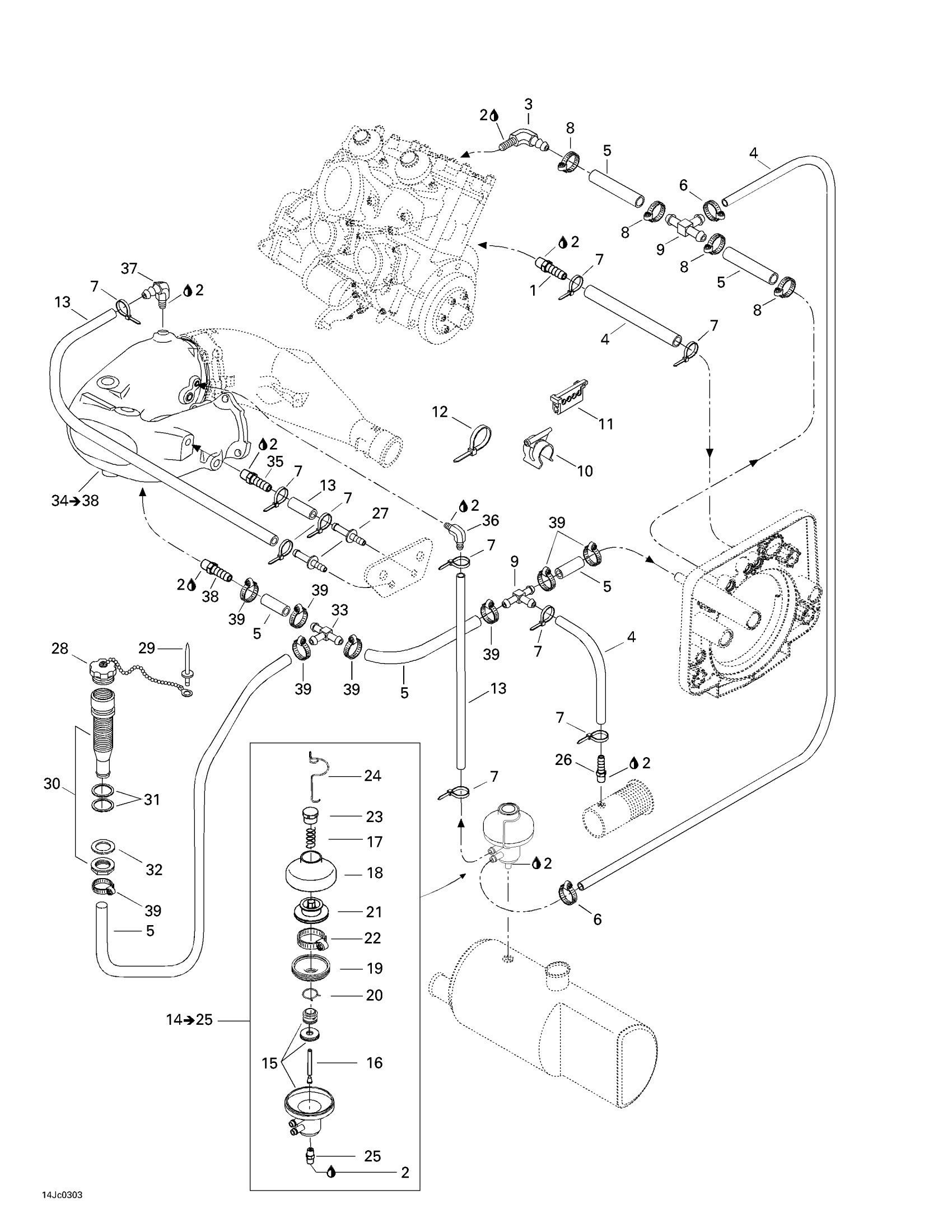

Sea-doo Sportster LE, 5769, 2003 Cooling System Diagram

#

Description
Price

1

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

2

Was 293800013 Loctite 56765

219704454

$65.99

3

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

4

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tridon Gear Clamp

293650170

$1.99

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

Tridon Gear Clamp

293650172

$3.09

9

T-Fitting

293710116

$17.62

10

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

11

4 Wire Support

278000346

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

PRESSURE REGULATOR ASS'Y - Call your local BRP dealership | Includes 14 - 25.

274000832

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

17

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

18

Valve Cover

420911552

$38.99

19

Bellow

420260721

$51.99

20

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rivalair Clamp

293650065

Unavailable

23

Adjuster Screw

420241221

$14.22

24

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

25

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

26

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

27

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

28

PLUG - Call your local BRP dealership

293000055

Unavailable

29

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

30

FITTING - Call your local BRP dealership

293710081

Unavailable

31

GASKET - Call your local BRP dealership

293250028

Unavailable

32

WASHER - Call your local BRP dealership

293050003

Unavailable

33

T-FITTING - Call your local BRP dealership

293710053

Unavailable

34

Head Pipe Ass'y | Includes 34 - 38.

274000928

Unavailable

35

Male Connector

293710037

$10.49

36

Elbow Fitting 90°

293710018

Unavailable

37

Elbow Fitting 90°

293710048

Unavailable

38

Male Connector | With Catalyst

293710021

$14.23

39

Tridon Gear Clamp

293650172

$3.09
