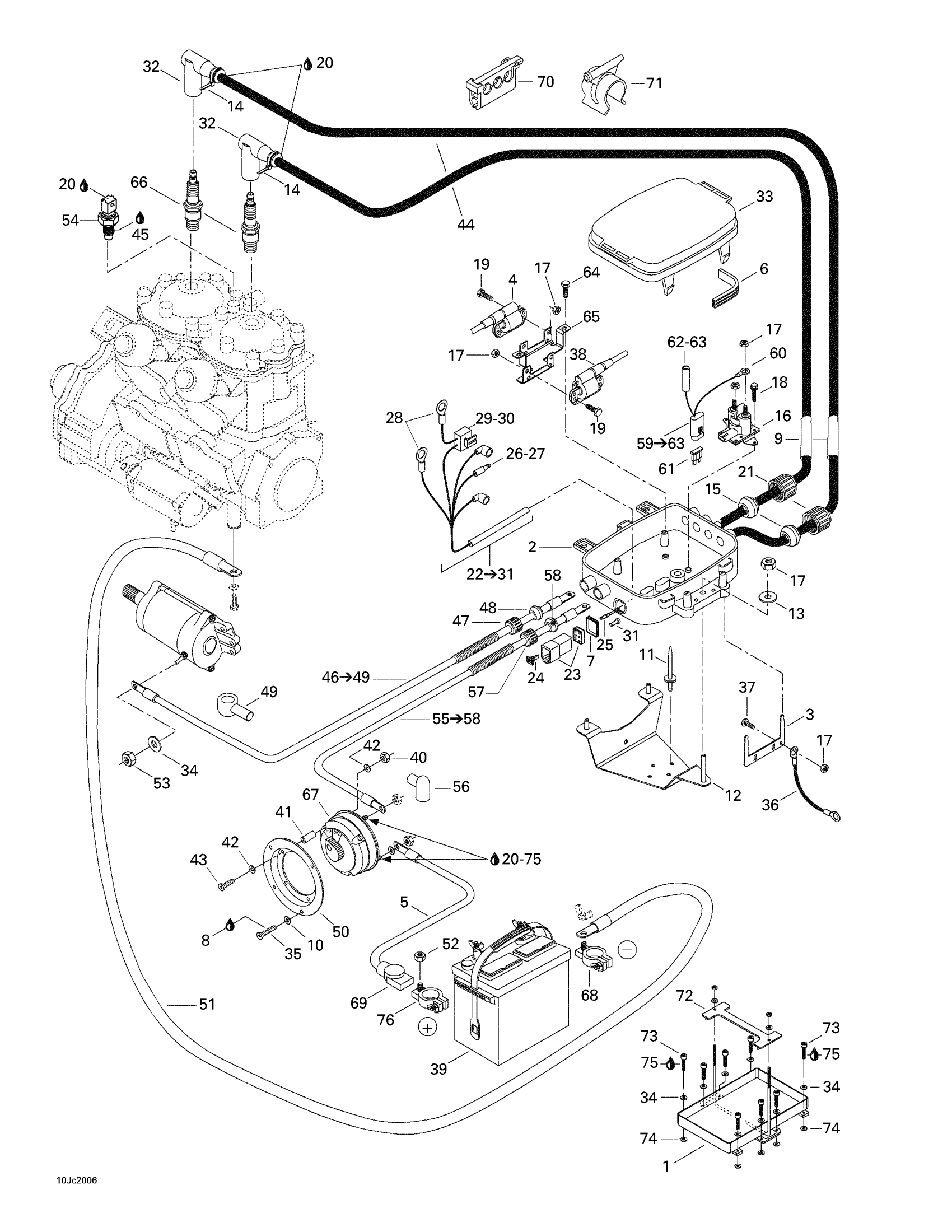

Sea-doo Sportster LE, 5693, 2000 Rear Electrical Box Diagram

#

Description
Price

1

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

2

ELECTRIC BOX BASE - Call your local BRP dealership

278001425

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil (MAG)

278001416

Unavailable

5

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

10

Flat Washer 4 mm, Stainless

234041600

$1.04

11

Avdel Rivet 3/16"

293150037

$0.54

12

Electric Box Support Ass'y

278001426

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.73

14

Tie Wrap 142 mm

293750002

$1.01

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$40.27

17

Hex. Elastic Stop Nut M6

232561600

$1.06

18

Hex. Flange Screw M6 X 10

210261040

$1.43

19

Hex. Forming Screw M6 X 20

207162060

$1.18

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

Electric Wire Cap

278000100

Unavailable

22

REAR ELECTRIC BOX HARNESS - Call your local BRP dealership | Includes 22 - 31.

278001423

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$17.88

24

Female Lock, 6 Circuits

278000735

$2.93

25

Male Terminal

278000631

$4.00

26

Male Terminal

278000230

$4.00

27

Insulated Sheath

278001008

$3.10

28

Ring Terminal

278000300

Unavailable

29

Male Connector, 2 Circuits

278001113

$14.52

30

Female Terminal

278001114

$2.93

31

Sealing Cap

293000052

$2.93

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Stainless Flat Washer M6

234061600

$0.28

35

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

36

Ground Wire

278001501

Unavailable

37

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.00

38

COIL-IGNITION - Call your local BRP dealership

278001414

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Hex. Elastic Nut M5 | X

232551600

$1.04

41

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

42

Flat Washer M5, Stainless

234051600

$0.73

43

Phillips Screw M5 X 25

208652560

Unavailable

44

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

46

STARTER RED CABLE - Call your local BRP dealership | Includes 44 to 47

278001437

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

51

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

52

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$1.06

54

Temperature Sensor

278002895

$36.54

55

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 13 to 16

204470286

Unavailable

56

RED BOOT - Call your local BRP dealership

204470269

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

60

Ring Terminal

278000300

Unavailable

61

Fuse, 15 Amperes

278000343

$3.12

62

Female Terminal | DS 650 X

278001009

$2.93

63

Insulated Sheath

278001007

$3.12

64

Hex. Screw M6 X 16

209561640

Unavailable

65

Ignition Coil Support

278001421

Unavailable

66

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.63

67

Battery Switch

204470329

Unavailable

68

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

69

RED BOOT - Call your local BRP dealership

204470269

Unavailable

70

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

71

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

72

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

73

Socket Head Screw M6 X 25

205062560

$1.63

74

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

75

Loctite 243, 10 ml

293800060

$21.49

76

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable
