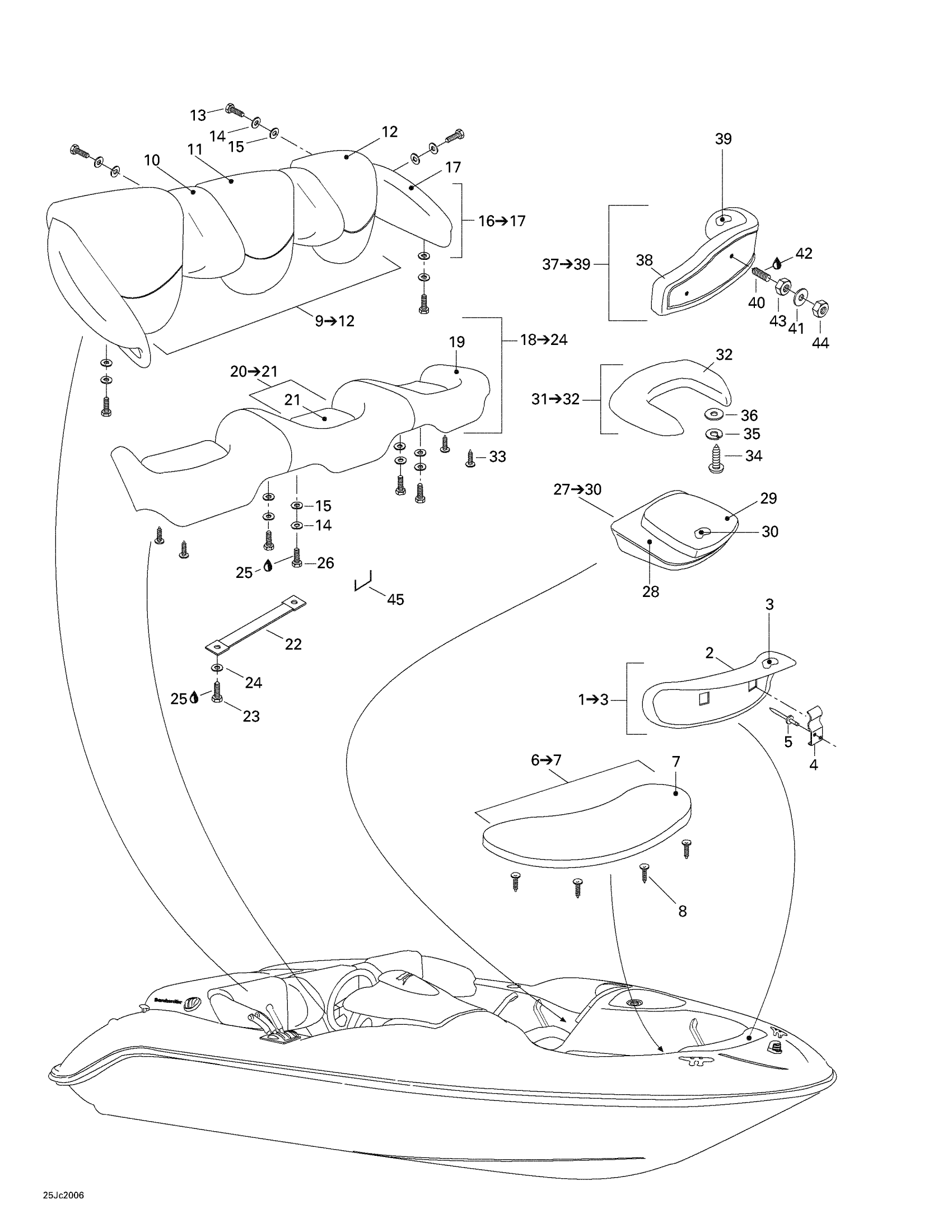

Sea-doo Sportster LE, 5693, 2000 Seats Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 2.

204610538

Unavailable

2

Front Backrest Cover

204610539

Unavailable

3

Front Backrest Foam

269000331

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Front Seat Ass'y | Includes 5 - 6.

204610540

Unavailable

7

Front Seat Cover

204610541

Unavailable

8

Black, Dart

293730006

$0.99

9

Rear Backrest Ass'y | Includes 9 - 12.

204610542

Unavailable

10

Backrest Cover

204610543

Unavailable

11

Backrest Cover (Center)

204610544

Unavailable

12

RH Backrest Cover

204610545

Unavailable

LH Backrest Cover

204610546

Unavailable

13

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

16

LH Armrest Ass'y | Includes 35 - 37.

204610547

Unavailable

RH Armrest Ass'y

204610549

Unavailable

17

LH Armrest Cover

204610548

Unavailable

RH Armrest Cover

204610550

Unavailable

18

Rear Seat Ass'y | Includes 14 - 21.

204610551

Unavailable

19

Rear Seat Cover

204610552

Unavailable

20

Cushion Ass'y | Includes 17 - 18.

204610553

Unavailable

21

Rear Seat Pillow Cover

204610554

Unavailable

22

Strap

204610555

Unavailable

23

Hex. Screw M6 X 16

207161660

$1.59

24

Flat Washer M6, Stainless

234062600

$0.77

25

Loctite 243, 10 ml

293800060

$21.49

26

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

27

Keeper Seat Ass'y | Includes 22 - 25.

204610556

Unavailable

28

Keeper Seat Base Cover

204610557

Unavailable

29

Keeper Seat Cover

204610558

Unavailable

30

Seat Foam

269000333

Unavailable

31

Keeper Seat Ring Ass'y | Includes 31 - 33.

204610559

Unavailable

32

Keeper Seat Ring Cover

204610560

Unavailable

33

Dart

293730021

$7.79

34

Tapping Phillips Screw 6.3 X 38

209663860

Unavailable

35

Lock Washer Helical M6

234161601

$1.15

36

Stainless Flat Washer M6

234061600

$0.33

37

Keeper Seat Backrest Ass'y | Includes 47 - 48.

204610562

Unavailable

38

Keeper Seat Backrest Cover

204610563

Unavailable

39

Keeper Seat Backrest Foam

269000339

Unavailable

40

Set Screw M5 x 30

206253060

Unavailable

41

Flat Washer 5 mm, Stainless

234052600

$0.77

42

Loctite 271, 10 ml

293800005

$26.99

43

Hex. Nut M5

232051600

$1.15

44

Hex. Elastic Nut M5 | X

232551600

$1.15

45

Staple

293730005

Unavailable
