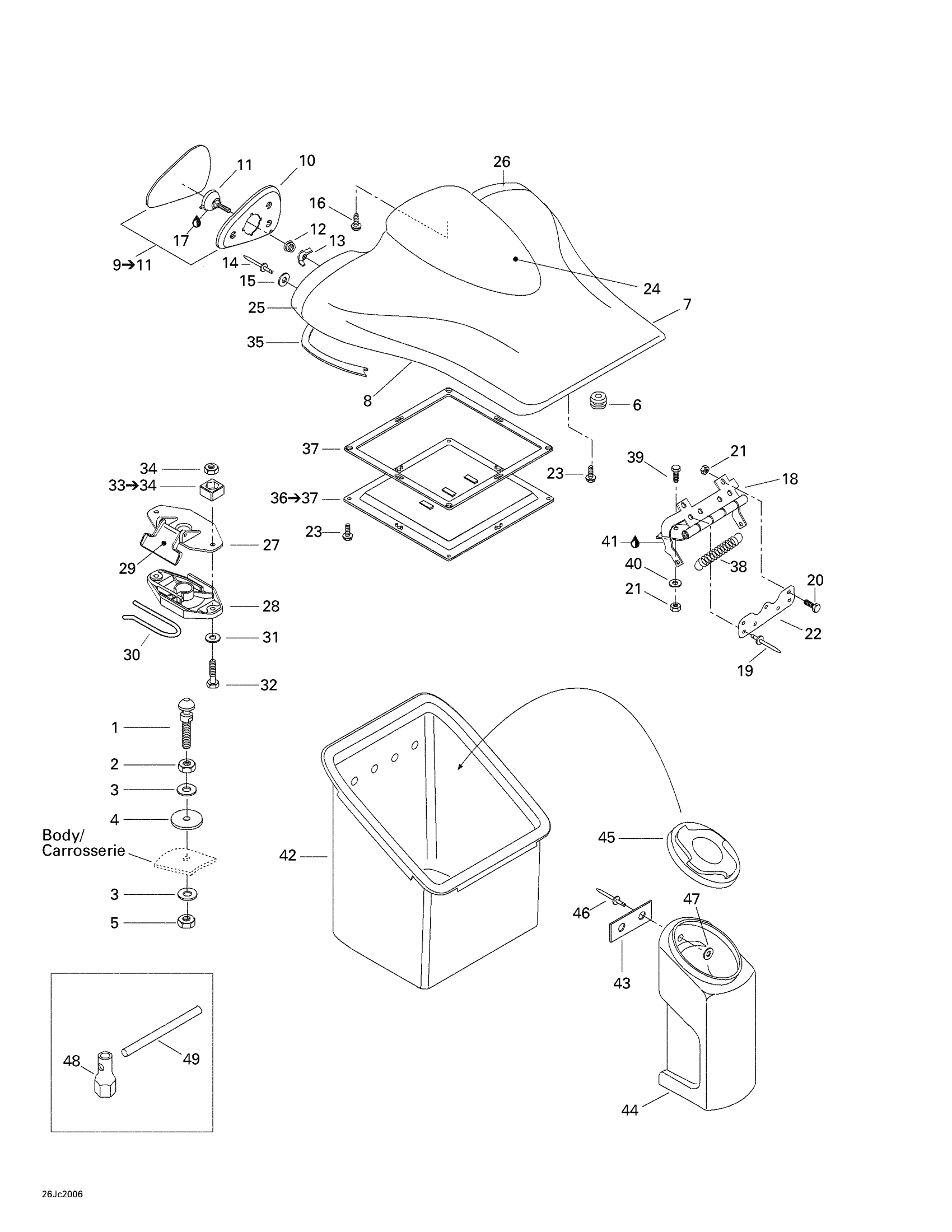

Sea-doo Sportster LE, 5693, 2000 Front Storage Compartment Diagram

#

Description
Price

1

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

2

Hex. Jam Nut M10

232100600

$2.22

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

6

Grommet

204070238

Unavailable

7

Upper Storage Cover

204620144

Unavailable

8

Lower Storage Cover

204620145

Unavailable

9

RH Mirror | Includes 3 to 4

269500055

Unavailable

LH Mirror | Includes 3 to 4

269500056

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

11

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

12

Mirror Spring

269500082

Unavailable

13

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

14

Pop Rivet 3/16"

293150008

$0.50

15

Flat Washer, Emhart

213200016

$0.72

16

Screw K40 X 10

241140060

$1.48

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

19

Pop Rivet 3/16"

293150039

$1.49

20

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

21

Hex. Elastic Nut M5 | X

232551600

$1.15

22

Retainer Plate

269500107

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

$1.48

24

Deflector

204620146

Unavailable

25

RH Mirror Housing

204620147

Unavailable

26

LH Mirror Housing

204620148

Unavailable

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Ass'y

269700109

$24.99

30

Latch Spring

269700017

$9.19

31

Stainless Flat Washer M6

234061600

$0.33

32

Hex. Screw M6 X 35

207163560

$1.49

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

34

Hex. Nut M6

232061600

$1.15

35

Seal Tray 1000Mm Long

219704368

$13.99

36

Access Cover Ass'y | Includes 31 - 32.

204620149

Unavailable

37

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

38

Hinge Spring

204620049

Unavailable

39

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

40

Flat Washer M5, Stainless

234051600

$0.77

41

Synthetic Grease, 400 G

293550010

Unavailable

42

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

43

GASKET - Call your local BRP dealership

293250037

Unavailable

44

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

45

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

46

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

47

Flat Washer M3, Stainless

234032600

$0.55

48

Socket Wrench

204630050

Unavailable

49

Steel Bar

204630051

Unavailable
