Partiron

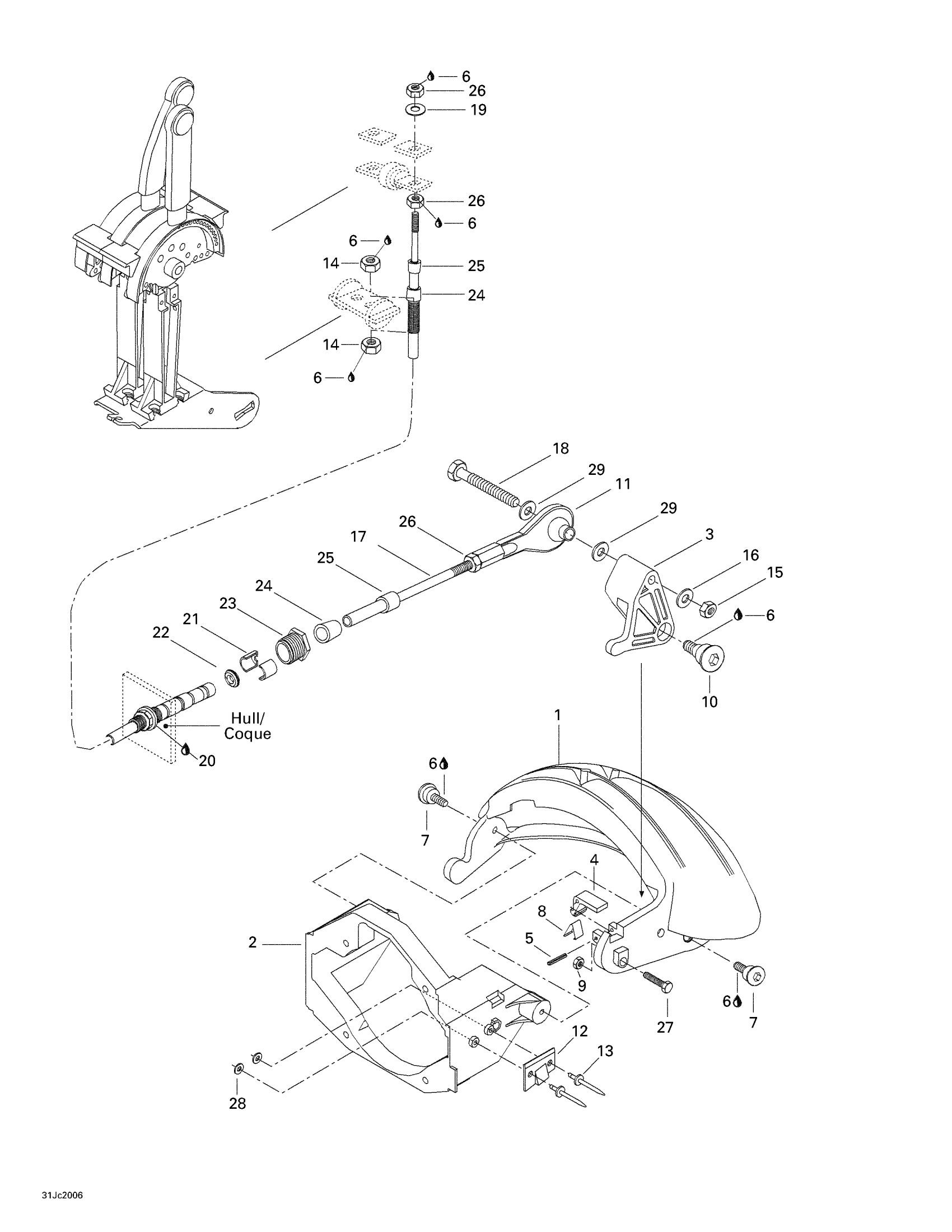

Sea-doo Sportster LE, 5693, 2000 Reverse Diagram

#

Description
Price

1

REVERSE GATE - Call your local BRP dealership

271000947

Unavailable

2

Gate Support

204170086

Unavailable

3

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.68

6

Loctite 243, 10 ml

293800060

$21.49

7

Screw

211000007

Unavailable

8

Spring

271000431

$15.49

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

11

Ball Joint

204170077

Unavailable

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Pop Rivet 3/16"

293150043

$2.09

14

Hex. Jam Nut

212100006

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Stainless Flat Washer M6

234061600

$0.33

17

Reverse cable

204170074

Unavailable

18

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

19

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

20

Silicone Sealant 51388, 300 ml

296000309

$36.99

21

Half Ring

277000055

$9.49

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

24

End Piece

277001583

$14.49

25

Wiper Rod

277001582

$11.11

26

Hex. Nut 1/4"-28

211100056

$0.69

27

Hex. Forming Screw M6 X 20

207162060

$1.29

28

Flat Washer | XT

211200035

$0.55

29

Flat Washer M6, Stainless

234062600

$0.77
