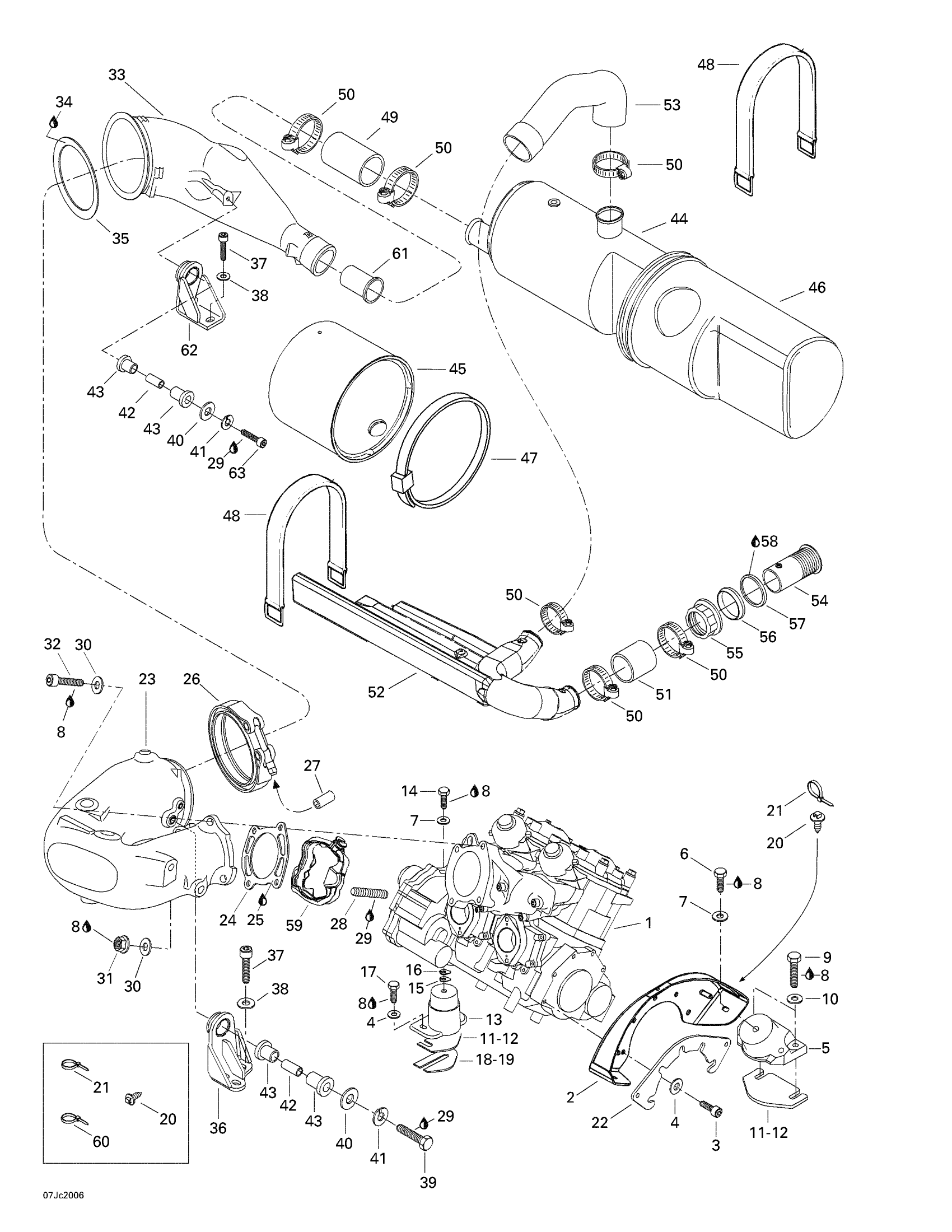

Sea-doo Sportster LE, 5693, 2000 Engine Support And Muffler Diagram

#

Description
Price

1

Rotax Engine 947 (Silver)

270000486

Unavailable

2

Engine Support

270000359

Unavailable

3

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

4

Stainless, Flat Washer 8 mm

234081600

$0.55

5

Rubber Mount, Black

270000421

Unavailable

6

Hex. Screw M8 X 16

207181660

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Loctite 243, 10 ml

293800060

$21.49

9

Hex. Screw M8 X 40

207184060

$2.22

10

Stainless, Flat Washer 8 mm

234081600

$0.55

11

Shim 0.3 mm

270000122

Unavailable

12

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

13

Rubber Mount, Black

270000422

Unavailable

14

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

16

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

17

Hex. Screw M8 X 40

207184060

$2.22

18

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

19

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

20

Mount Dart

293730040

$1.04

21

Tie-Rap 180 mm

414115200

$0.11

22

Was 271000110 Protection Trim

219704353

$15.99

23

Head Pipe Ass'y | Includes 34 - 38.

274000768

Unavailable

24

EXHAUST GASKET KIT - Call your local BRP dealership

295500815

Unavailable

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

26

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

27

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

28

Stud M10 x 55

211300025

Unavailable

29

Loctite 271, 10 ml

293800005

$26.99

30

Flat Washer

211200051

$1.68

31

Hex. Flange Nut M10

233101600

$5.29

32

Socket Head Screw M10 x 35

205003560

Unavailable

33

Exhaust Cone

274000658

Unavailable

34

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

35

SEALING RING - Call your local BRP dealership

274000511

Unavailable

36

Support Pipe

274000662

Unavailable

37

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

38

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

39

Hex. Screw M10 x 40 (Scotch Grip)

207004060

Unavailable

40

Flat Washer 10 mm, Stainless

234002600

$2.22

41

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

42

Bushing

274000656

Unavailable

43

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

44

Muffler (Black)

274000749

Unavailable

45

Muffler Cover

274000732

Unavailable

46

Muffler Cover

274000733

Unavailable

47

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

48

Retainer Strap

293850097

$11.64

49

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

50

Tridon Clamp

293650064

$8.29

51

Exhaust Hose

274000616

Unavailable

52

Resonator

295500683

Unavailable

53

Exhaust Hose

274000525

Unavailable

54

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

55

Nut 72 mm

274000224

$16.34

56

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

57

GASKET - Call your local BRP dealership

293250041

Unavailable

58

Silicone Sealant 51388, 300 ml

296000309

$36.99

59

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

60

Tie Wrap 142 mm

293750002

$1.25

61

Exhaust Insert

204340255

Unavailable

62

Pipe Support

274000878

Unavailable

63

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205004060

Unavailable
