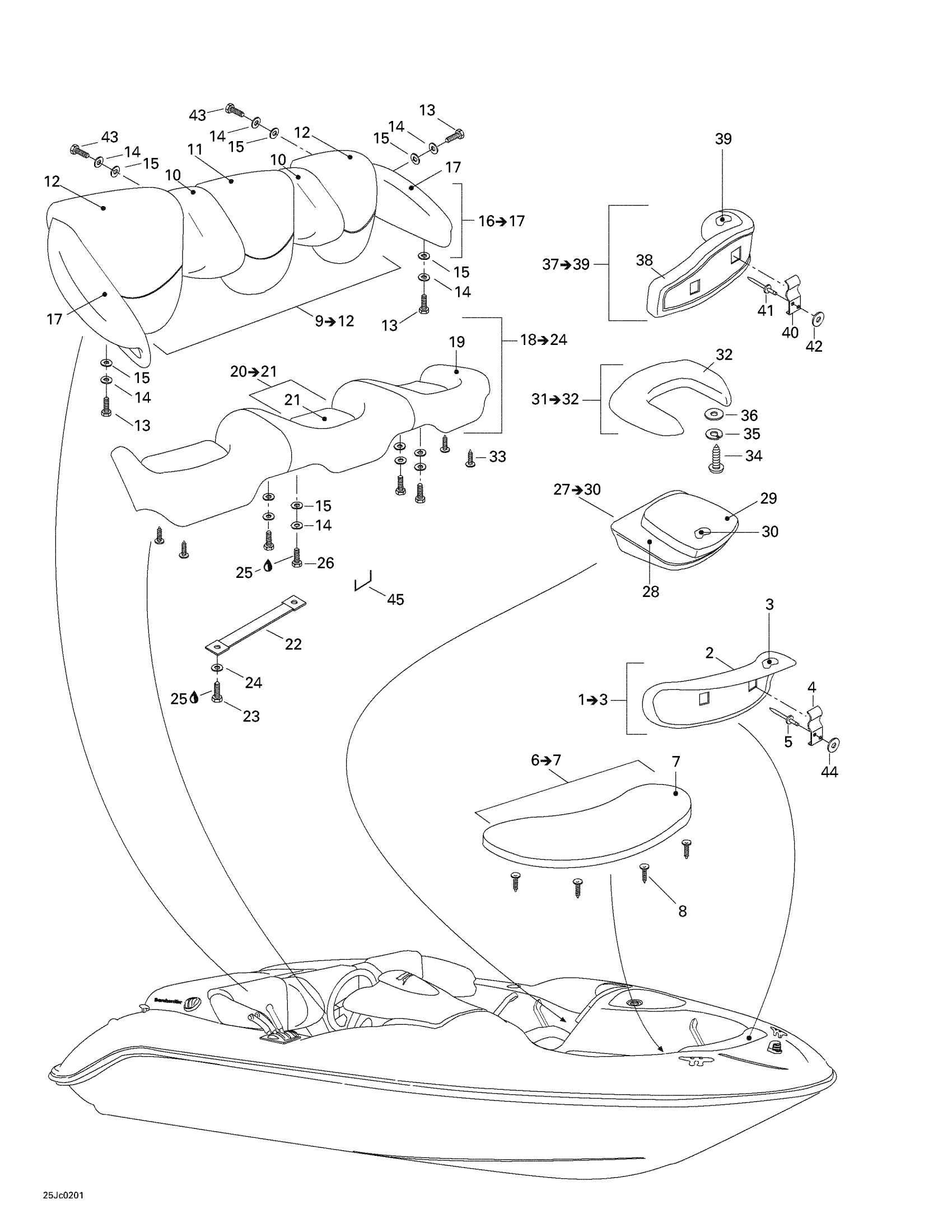

Sea-doo Sportster LE, 5494, 2002 09- Seats Diagram
#
1
Front Backrest, Bright Yellow | Includes 1 to 2
204611715
Unavailable
2
Front Backrest Cover
204611716
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
5
Pop Rivet 3/16"
293150043
$2.09
6
Front Seat | Includes 6 to 7
204611717
Unavailable
7
Front Seat Cover
204611718
Unavailable
8
Black, Dart
293730006
$0.99
9
Rear Backrest Ass'y | INCLUDES 9 TO 13
204611719
Unavailable
10
Backrest Cover, Bright Yellow
204611720
Unavailable
11
Backrest Cover (Center)
204611721
Unavailable
12
Backrest Cover RH (Starboard)
204611722
Unavailable
Backrest Cover LH (Port Side)
204611723
Unavailable
13
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
16
Armrest Ass'y, Starboard | Includes 18 to 19
204611726
Unavailable
Armrest Ass'y, Port Side | Includes 18 to 19
204611724
Unavailable
17
Armrest Cover
204611727
Unavailable
LH Armrest Cover (Port Side)
204611725
Unavailable
18
Rear Seat Ass'y | Includes 18 - 27.
204611728
Unavailable
19
Rear Seat Cover, Bright Yellow
204611729
Unavailable
20
Cushion Ass'y
204611730
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Rear Seat Strap, Bright Yellow
204611732
Unavailable
23
Hex. Screw M6 X 16
207161660
$1.59
24
Flat Washer M6, Stainless
234062600
$0.77
25
Loctite 243, 10 ml
293800060
$21.49
26
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
27
Keeper Seat Ass'y | INCLUDES 34 TO 36
204611733
Unavailable
28
Keeper Seat Base Cover
204610557
Unavailable
29
Keeper Seat Cover
204611734
Unavailable
30
Seat Foam
269000333
Unavailable
31
Keeper Seat Ring Ass'y, Bright Yellow | Includes 38 to 39
204611735
Unavailable
32
Keeper Seat Ring Cover
204611736
Unavailable
33
Dart
293730021
$7.79
34
Tapping Phillips Screw 6.3 X 38
209663860
Unavailable
35
Lock Washer Helical M6
234161601
$1.15
36
Stainless Flat Washer M6
234061600
$0.33
37
Keeper Seat Backrest | Includes 46 to 47
204611652
Unavailable
38
Keeper Seat Backrest Cover
204611737
Unavailable
39
Keeper Seat Backrest Foam
269000339
Unavailable
40
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
41
Pop Rivet 3/16"
293150043
$2.09
42
Stainless Flat Washer M6
234061600
$0.33
43
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
44
Stainless Flat Washer M6
234061600
$0.33
45
Sea-doo Logo
204901090
Unavailable
