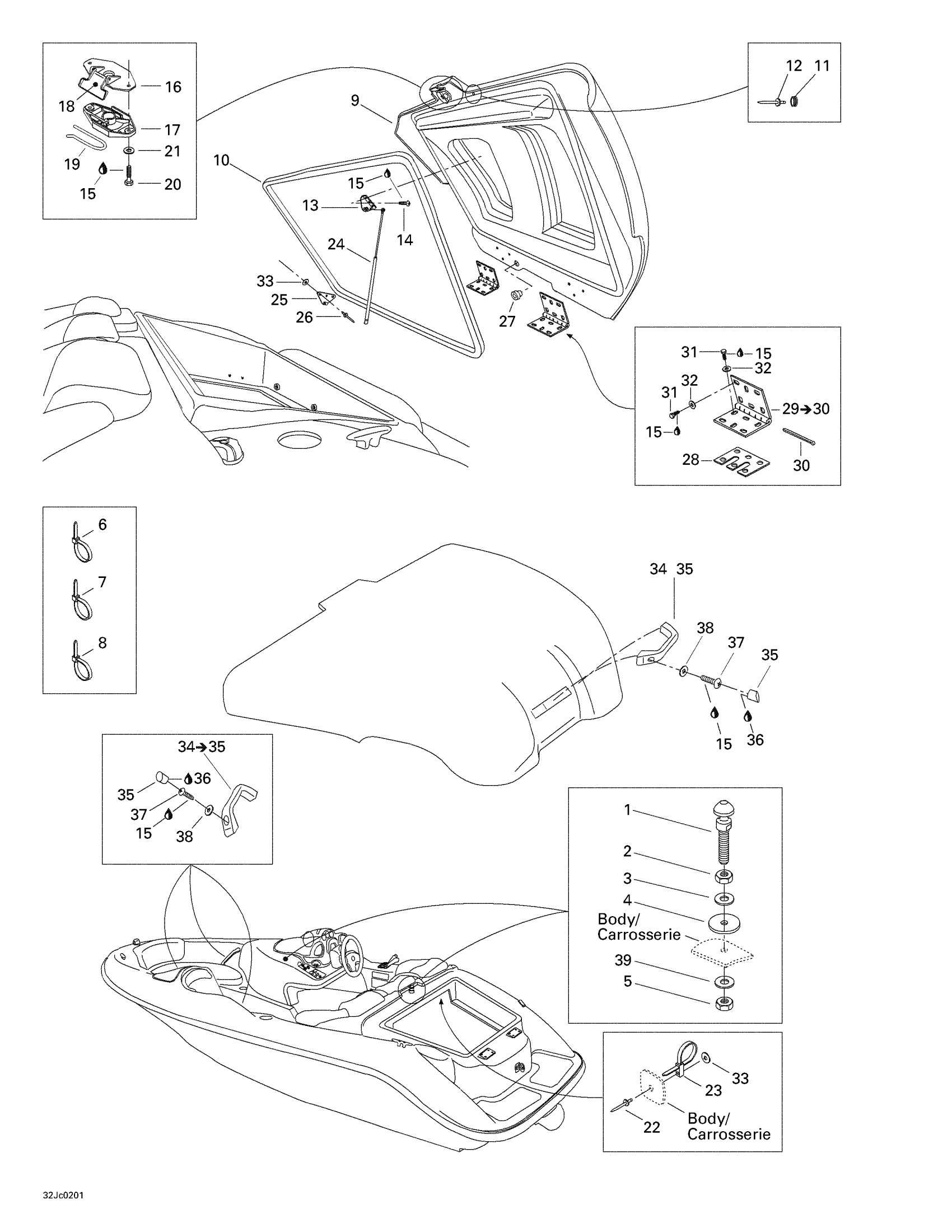

Sea-doo Sportster LE, 5494, 2002 09- Engine Compartment Diagram

#

Description
Price

1

Latch Stud

204100065

Unavailable

2

Hex. Jam Nut M10

232100600

$2.22

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

6

Tie Wrap 142 mm

293750002

$1.25

7

Tie Wrap 368 mm

293750008

$1.04

8

Tie-Rap 180 mm

414115200

$0.11

9

Engine Cover

204071472

Unavailable

10

Was 293200017 Neoprene Seal

219704365

$149.99

11

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

12

Pop Rivet 1/8”

293150015

$0.40

13

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

14

Hex. Screw M4 X 16 | Europe

207141660

$1.47

15

Loctite 243, 10 ml

293800060

$21.49

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Hex. Screw M6 X 25

207162560

$1.47

21

Stainless Flat Washer M6

234061600

$0.33

22

Pop Rivet 3/16"

293150013

$1.37

23

Tie-Rap

293750017

Unavailable

24

CYLINDER - Call your local BRP dealership

204071053

Unavailable

25

Shock Support

291000615

Unavailable

26

Pop Rivet 3/16"

293150043

$2.09

27

GROMMET - Call your local BRP dealership

293720017

Unavailable

28

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

29

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

30

Cotter Pin M2.5 X 12

204070205

Unavailable

31

Hex. Screw M6 X 25

207162560

$1.47

32

Stainless Flat Washer M6

234061600

$0.33

33

Flat Washer M5, Stainless

234051600

$0.77

34

Grip Handle | Includes 6 to 7

204070045

Unavailable

35

Snap Cap

204070056

Unavailable

36

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

37

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

38

Stainless Flat Washer M6

234061600

$0.33

39

Flat Washer 10 mm, Stainless

234002600

$2.22
