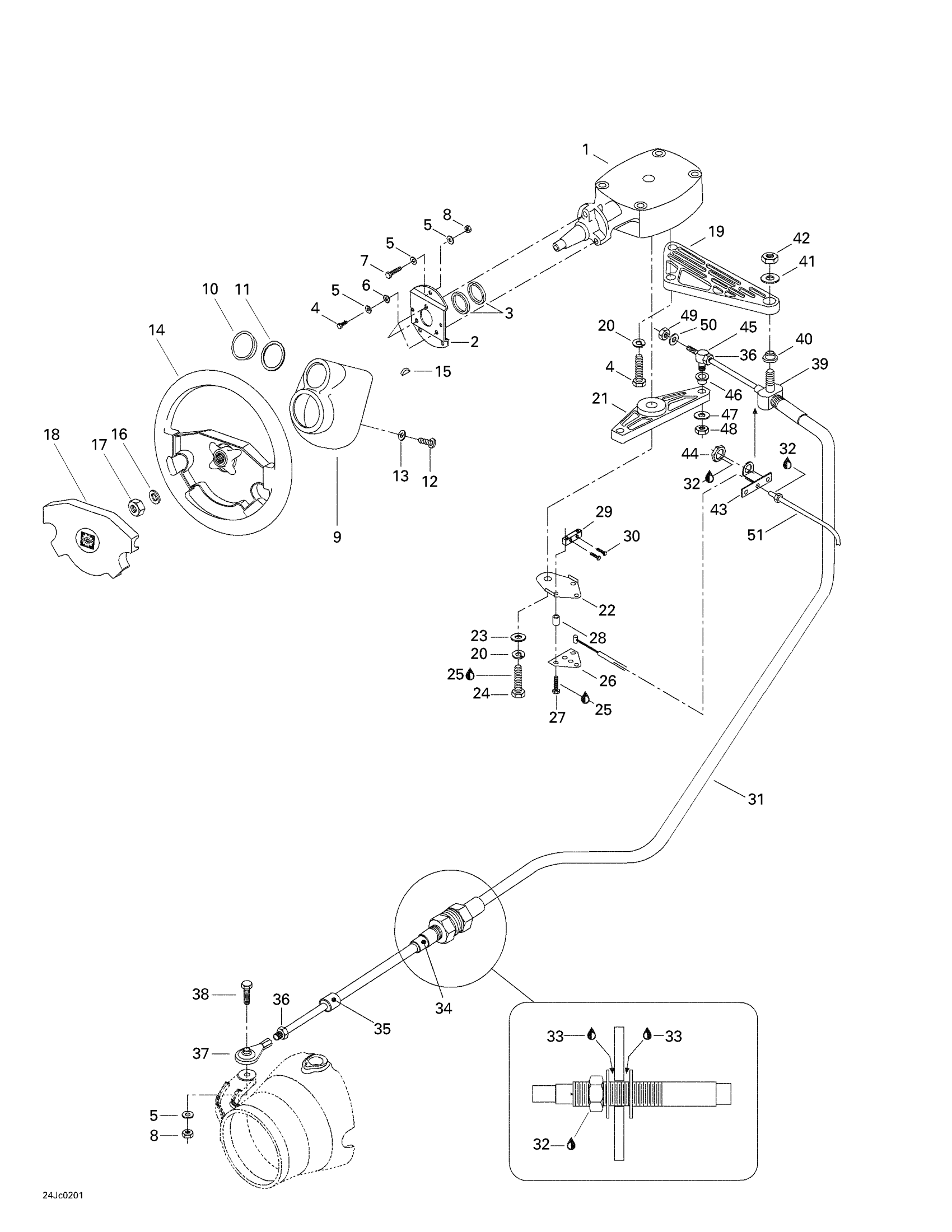

Sea-doo Sportster LE, 5494, 2002 07- Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

2

Support

277000383

Unavailable

3

SPACER - Call your local BRP dealership

277000593

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

External Serrated Lock Washer 6 mm

234461608

$1.15

7

Hex. Screw M6 X 30

207163060

$1.48

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

COLLAR, YELLOW - Call your local BRP dealership

277000507

Unavailable

10

Gauge Cap

204470328

Unavailable

11

Gasket

204470308

Unavailable

12

Hex. Flange Screw K40 X 25

241142560

$2.64

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

15

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

16

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

17

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

18

Steering Cover

204390149

Unavailable

19

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

20

Lock Washer 1/4”

211200025

$1.29

21

ARM - Call your local BRP dealership

204390040

Unavailable

22

Lower Clip

204390285

Unavailable

23

Spacer

204390057

Unavailable

24

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

27

Hex. Screw M6 X 25

207162560

$1.47

28

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

29

Adjustment Block

204390056

Unavailable

30

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

31

Steering Cable

277001765

$248.99

32

Loctite 243, 10 ml

293800060

$21.49

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

35

Terminal Wiper

277000441

$11.99

36

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

37

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

38

Hex. Screw M6 X 35

207063560

$2.22

39

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

40

Flanged Bushing

293350014

$12.99

41

Flat Washer 10 mm, Stainless

234001600

$1.15

42

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

43

Cable Support

204390035

Unavailable

44

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

45

PIVOT - Call your local BRP dealership

277000456

Unavailable

46

BUSHING - Call your local BRP dealership

293350012

Unavailable

47

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

48

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

49

Elastic Stop Nut

204390147

Unavailable

50

Flat Washer M8, Stainless

234080600

$1.48

51

Throttle Cable

204390186

Unavailable

51

Throttle Cable

204390174

Unavailable
