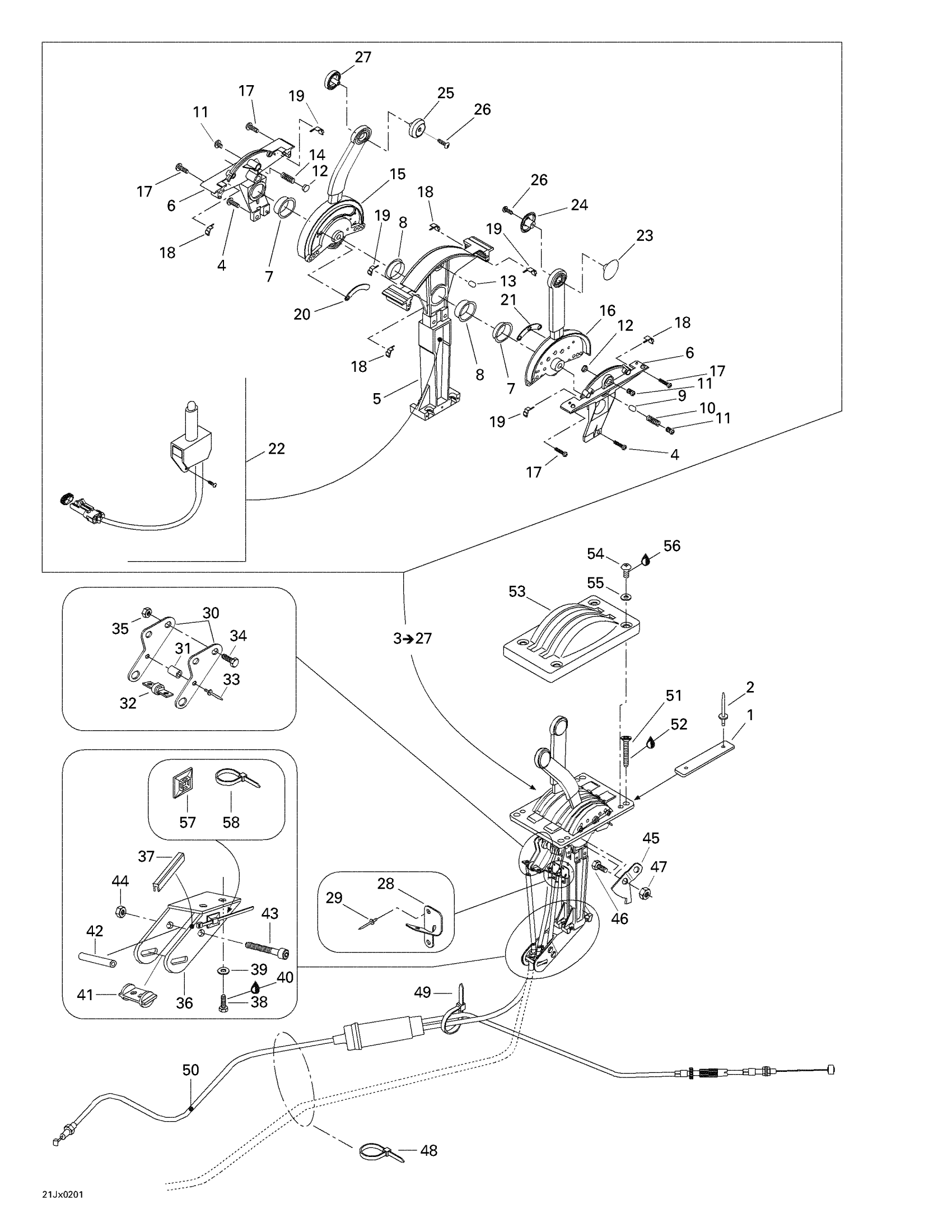

Sea-doo Sportster LE, 5494, 2002 05- Propulsion System Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

4

Screw M5 X 14

277000660

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Half-Case

277000653

Unavailable

7

BUSHING - Call your local BRP dealership

277000397

Unavailable

8

BUSHING - Call your local BRP dealership

277000398

Unavailable

9

BALL - Call your local BRP dealership

277000399

Unavailable

10

SPRING - Call your local BRP dealership

277000400

Unavailable

11

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

12

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

13

BLOCKING PIVOT - Call your local BRP dealership

277000404

Unavailable

14

SPRING - Call your local BRP dealership

277000401

Unavailable

15

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

16

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

17

Screw M5 X 20

277000421

Unavailable

18

RH Water Seal

277000423

Unavailable

19

LH Water Seal

277000424

Unavailable

20

THROTTLE LEVER SPACER - Call your local BRP dealership

277000659

Unavailable

21

Shift Lever Spacer

277000408

Unavailable

22

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

23

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

24

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

25

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

26

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

27

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

28

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

29

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

30

LINK - REVERSE - Call your local BRP dealership

277000578

Unavailable

31

SPACER - Call your local BRP dealership

277000449

Unavailable

32

PIVOT BRACKET - Call your local BRP dealership

277000450

Unavailable

33

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

34

Hex. Screw M6 X 16

207161660

$1.59

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

SUPPORT - Call your local BRP dealership

277000452

Unavailable

37

Was 271000110 Protection Trim

219704353

$15.99

38

Hex. Cap Screw M6 X 12

207161260

$1.26

39

Lock Washer Helical M6

234161601

$1.15

40

Loctite 243, 10 ml

293800060

$21.49

41

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

42

SPACER - Call your local BRP dealership

277000453

Unavailable

43

SOCKET HEAD SCREW M6 X 80 - Call your local BRP dealership

205068060

Unavailable

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

46

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

47

Hex. Elastic Nut M5 | X

232551600

$1.15

48

Tie-Rap 180 mm

414115200

$0.11

49

Tie Wrap 142 mm

293750002

$1.25

50

Throttle Cable

204390186

Unavailable

51

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

52

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

53

Control Cover

204390123

Unavailable

54

Phillips Screw M4 X 10

208641060

$1.01

55

Flat Washer 4 mm

234040600

$0.55

56

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

57

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

58

Tie Wrap 94 mm | 4X4

293750001

$1.03
