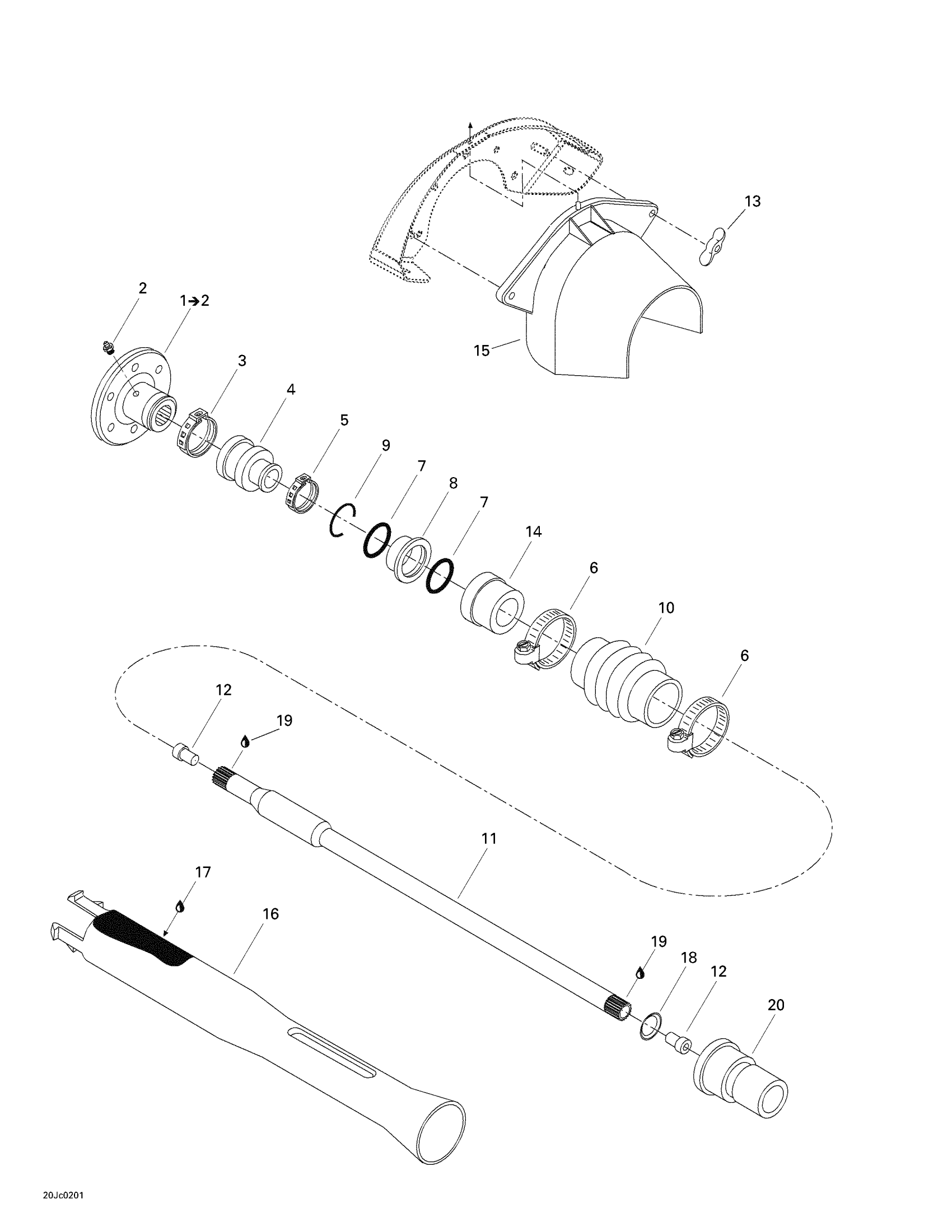

Sea-doo Sportster LE, 5494, 2002 05- Drive System Diagram

#

Description
Price

1

COUPLING FLANGE ASS'Y (SILVER) - Call your local BRP dealership | Includes 22 - 23.

290958122

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

O-Ring

293300032

$6.03

8

Support Ring

272000064

$66.49

9

C-CLIP - Call your local BRP dealership

272000135

Unavailable

10

BELLOWS - Call your local BRP dealership

272000184

$27.99

11

DRIVE SHAFT - Call your local BRP dealership

272000151

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

Carbon Ring

272000770

$45.99

15

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

16

SHAFT PROTECTEUR - Call your local BRP dealership

204120135

Unavailable

17

Instant Gasket

219701421

$51.99

18

Retaining Ring

204120132

Unavailable

19

Synthetic Grease, 400 G

293550010

Unavailable

20

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
