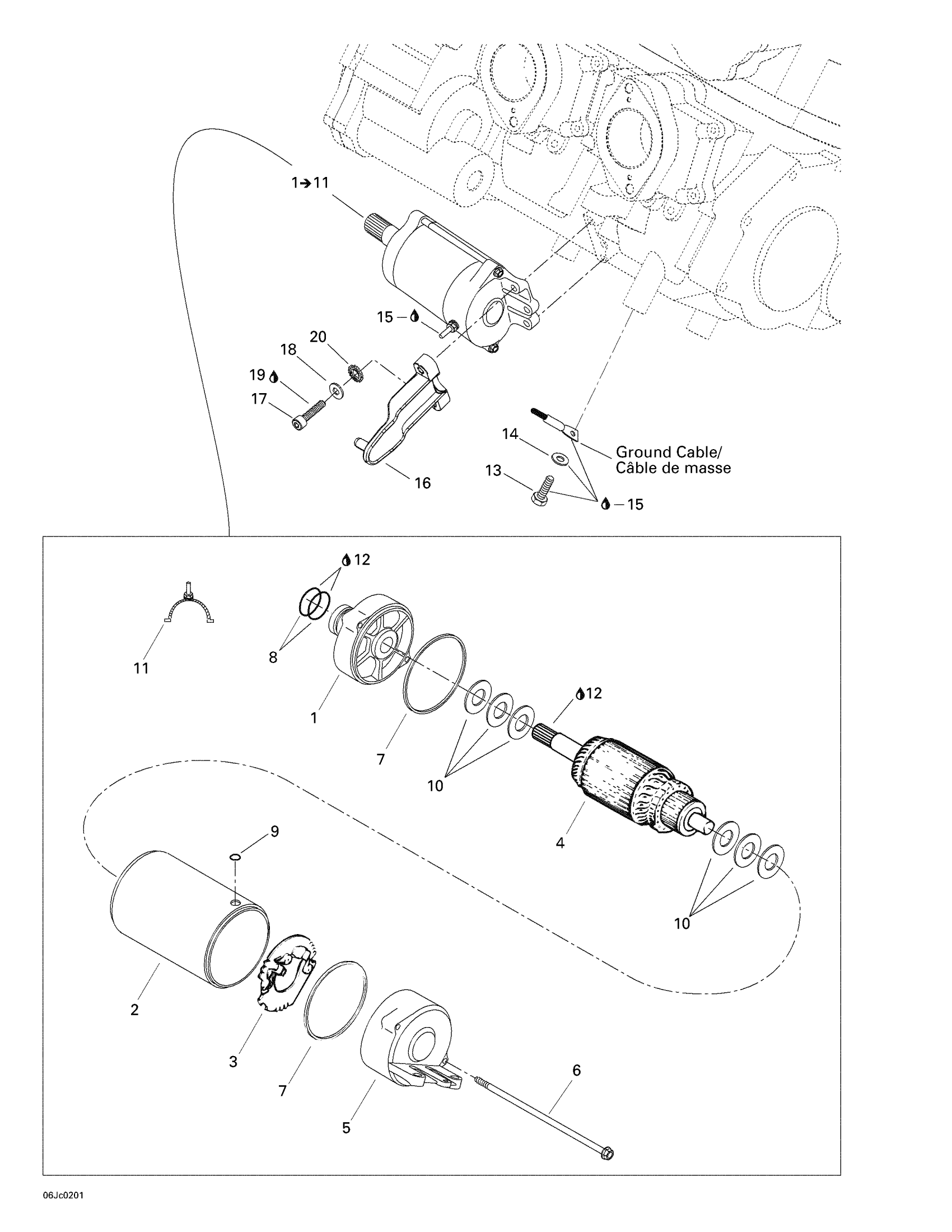

Sea-doo Sportster LE, 5494, 2002 04- Starter Diagram

#

Description
Price

1

Starter Ass'y, Black

278001937

$265.99

1

Front Housing

278001152

Unavailable

2

Starter Housing

278001153

Unavailable

3

BRUSH HOLDER - Call your local BRP dealership

278001154

Unavailable

4

Armature

278001155

Unavailable

5

REAR HOUSING - Call your local BRP dealership

278001156

Unavailable

6

SCREW - Call your local BRP dealership

278001157

Unavailable

7

SQUARE RING - Call your local BRP dealership

278001158

Unavailable

8

O-RING - Call your local BRP dealership

278001159

Unavailable

9

O-RING - Call your local BRP dealership

278001160

Unavailable

10

Set Washer

278001161

Unavailable

11

SET BRUSH - Call your local BRP dealership

278001385

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

14

Flat Washer 10 mm, Stainless

234001600

$1.15

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Silencer Support

273000123

Unavailable

17

Socket Head Screw M6 X 35

205063560

$2.22

18

Stainless Flat Washer M6

234061600

$0.33

19

Not Available As Spare Part - Friction Washer

Unavailable

20

External Serrated Lock Washer 6 mm

234461608

$1.15
