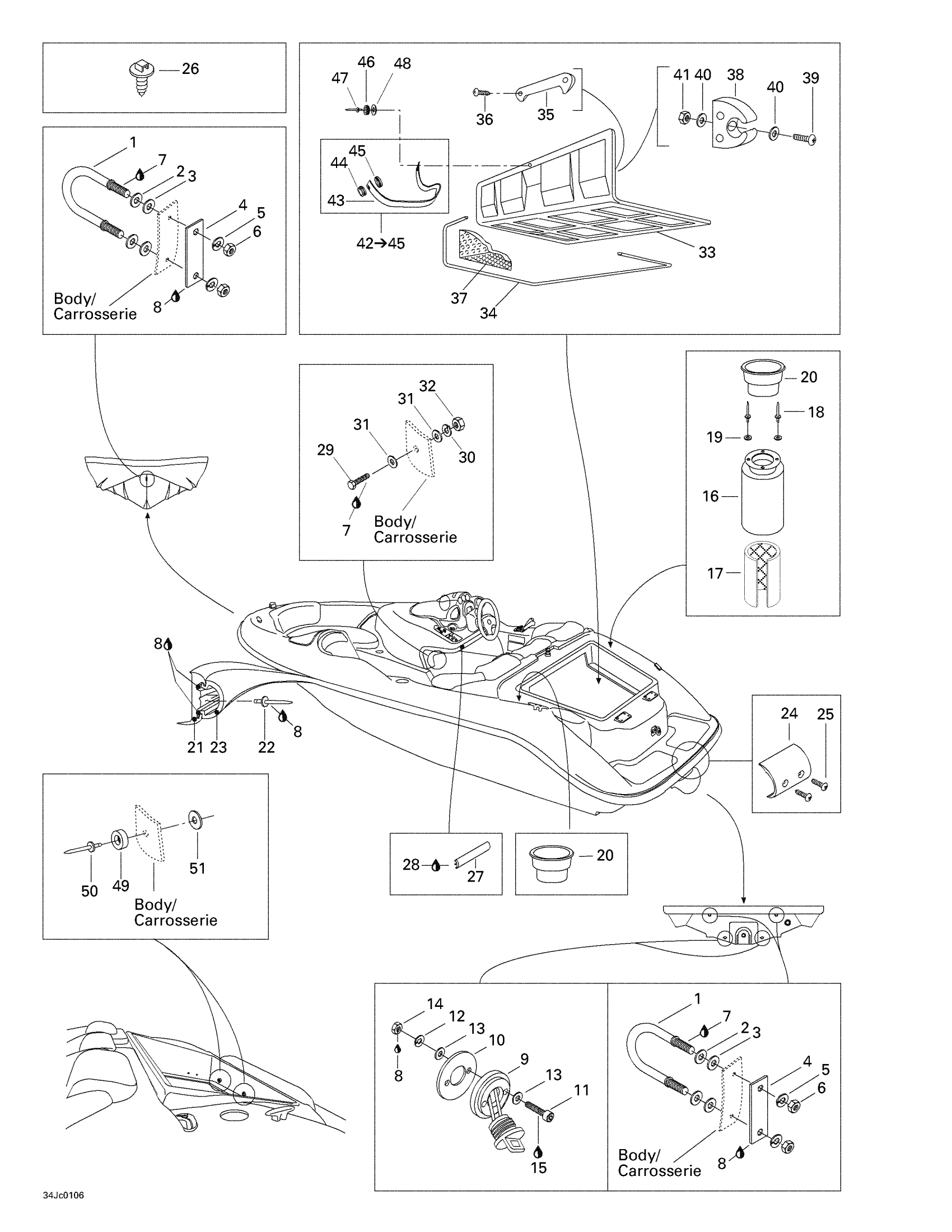

Sea-doo Sportster LE, 5440, 2001 Hull And Accessories Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Drain Plug

292000187

$14.49

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

Socket Screw M4 X 30

205043060

Unavailable

12

Lock Washer 4 mm

234141601

$1.15

13

Flat Washer 4 mm

234040600

$0.55

14

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Rear Hose Vent

204050004

Unavailable

17

Sound Damping

291000400

Unavailable

18

Pop Rivet 3/16"

293150014

$1.09

19

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

20

Cup Holder

291000914

Unavailable

21

Bumper extrusion

204050220

Unavailable

22

Pop Rivet 3/16"

293150013

$1.37

23

Bumper Moulding

204050221

Unavailable

24

Bumper Cover

204050222

Unavailable

25

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

26

Mount Dart

293730040

$1.04

27

TRIM, WHITE - Call your local BRP dealership

204050042

Unavailable

28

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

29

Hex. Screw M5 X 35

207153560

Unavailable

30

Helical Lock Washer M5

234151601

$1.15

31

Flat Washer 5 mm, Stainless

234052600

$0.77

32

Hex. Nut M5

232051600

$1.15

33

Access Cover

204050392

Unavailable

34

Seal Tray 1000Mm Long

219704368

$13.99

35

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

36

Hex. Flange Screw K40 X 16

241141660

$1.48

37

Luggage Foam

237500013

Unavailable

38

Pole Support

291000642

Unavailable

39

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

40

Flat Washer 4 mm

234040600

$0.55

41

Elastic Stop Nut M4

232541600

$1.15

42

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

43

Nylon Strap 1” (Black) (Meter)

204050097

Unavailable

44

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

45

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

46

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

47

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

48

Flat Washer M3, Stainless

234032600

$0.55

49

Rubber Stopper

293830043

Unavailable

50

Pop Rivet 3/16"

293150013

$1.37

51

Flat Washer M5, Stainless

234051600

$0.77
