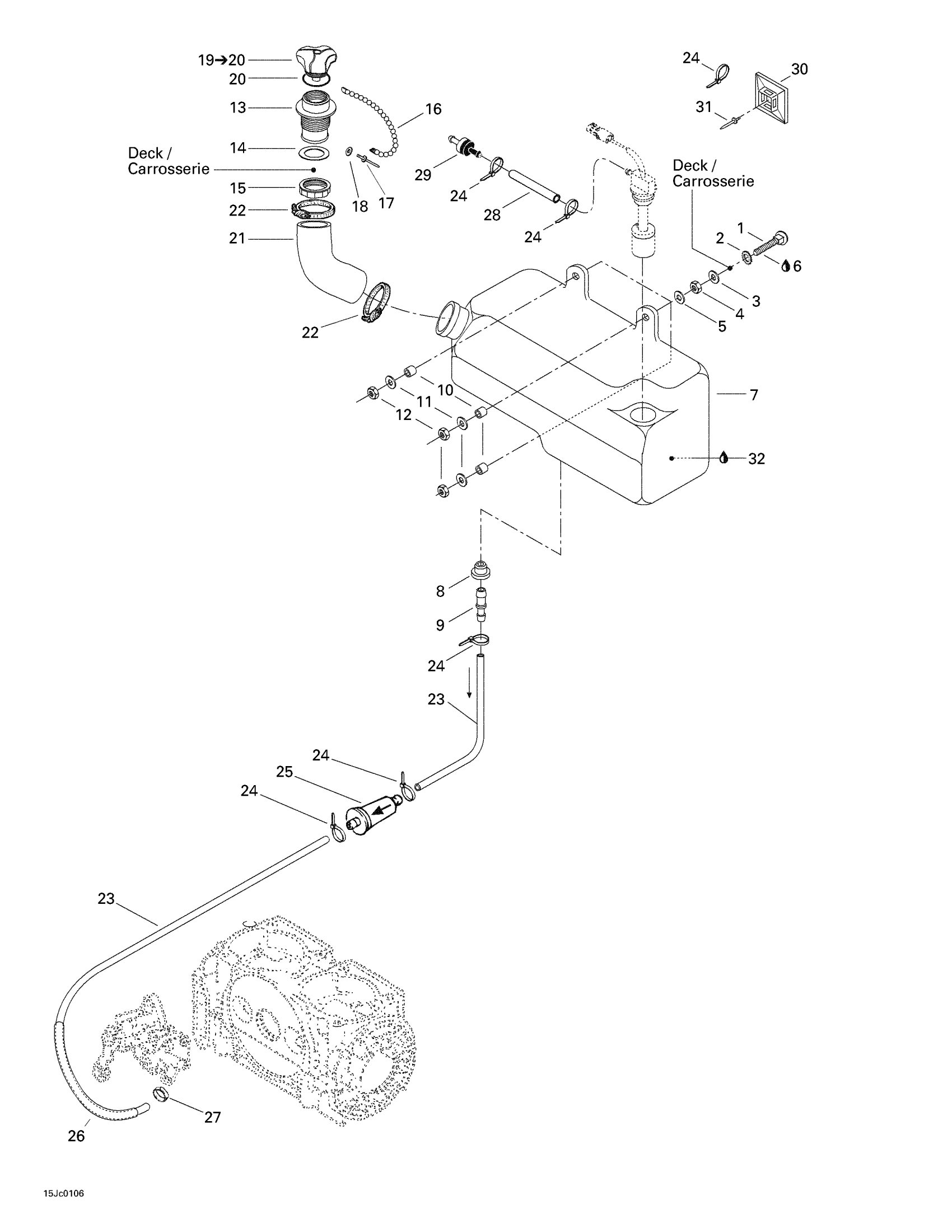

Sea-doo Sportster LE, 5440, 2001 Oil Injection System Diagram

#

Description
Price

1

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

2

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Loctite 271, 10 ml

293800005

$26.99

7

Oil Tank

204550087

Unavailable

8

Grommet

293720008

$14.75

9

Elbow Fitting 90°

293710070

Unavailable

10

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

13

Filler Neck

275000212

Unavailable

14

Gasket

293250016

Unavailable

15

Nut-Neck Oil Filler

211100013

Unavailable

16

Oil Cap Chain

275500015

Unavailable

17

Pop Rivet 1/8"

293150056

Unavailable

18

Flat Washer M3, Stainless

234032600

$0.55

19

Oil Cap

275000186

Unavailable

20

O-RING - Call your local BRP dealership

293250025

Unavailable

21

Formed Hose

204550150

Unavailable

22

Norma Clamp

293650077

$7.41

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

26

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

27

Oetiker Clamp

293650042

$3.09

28

Hose 6 Mm 15000Mm Long

219704360

$132.49

29

Check Valve

275500398

$10.99

30

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

31

Pop RIvet 1/8 X ,375

293150285

$0.33

32

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable
