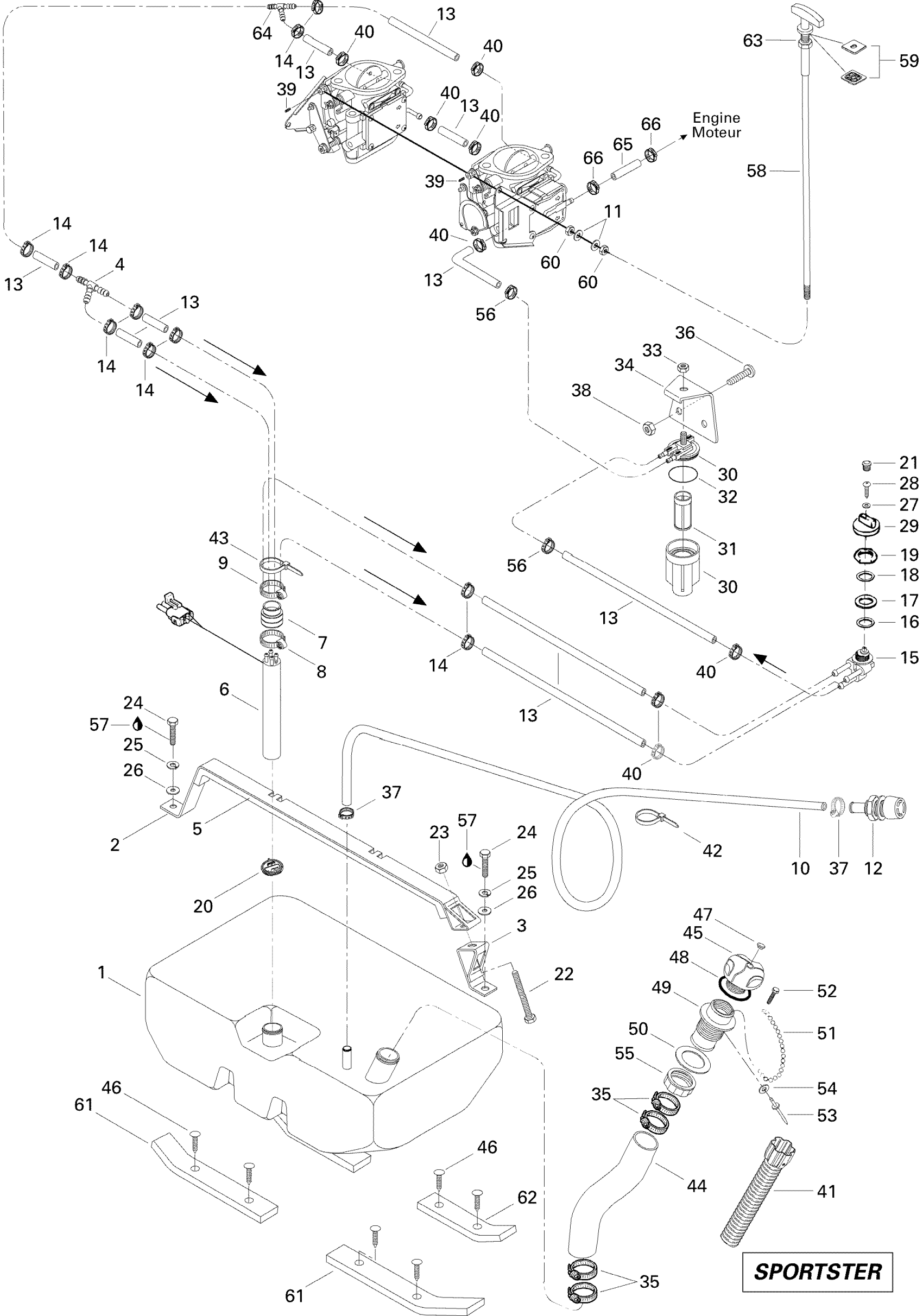

Sea-doo Sportster, 5898, 1996 02- Fuel System 5898 Diagram
#
1
Aluminum Fuel Tank | For Speedster 000 5897 00
275500275
Unavailable
2
Tank Bracket
275500199
Unavailable
3
Strap Bracket
275500202
Unavailable
4
<> FITTING - Call your local BRP dealership
420974835
Unavailable
5
Rubber Pad
275500200
Unavailable
6
Baffle Pick-up Ass'y | Includes 6 - 8.
275500237
Unavailable
7
Tube Adapter
275500111
Unavailable
8
Tridon Clamp
293650023
$13.49
9
Tridon Clamp
293650035
$7.29
10
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
11
Stainless Flat Washer M6
234061600
$0.33
12
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
13
Hose 6 mm
204000068
Unavailable
14
Clic Clamp
293650059
Unavailable
15
Fuel Valve
275500098
$43.99
16
GASKET - Call your local BRP dealership
293250004
Unavailable
17
WASHER - Call your local BRP dealership
293050003
Unavailable
18
Gasket
293250005
Unavailable
19
Hex. Nut - Plastic | .
212100008
Unavailable
20
Fuel Filter
275500249
Unavailable
21
Black, Cap
275500241
$3.49
22
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
23
Hex. Elastic Nut M8
232581600
$1.48
24
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
25
Lock Washer 8 mm, Stainless
234181601
$0.55
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
Flat Washer 4 mm
234040600
$0.55
28
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
29
FUEL VALVE KNOB, BLACK - Call your local BRP dealership
275500263
Unavailable
30
Fuel Filter Ass'y | Includes 15 - 17.
275500088
$42.49
31
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
32
O-Ring
275500090
$8.79
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Fixation Plate
275500207
Unavailable
35
Tridon Clamp
293650023
$13.49
36
Screw M6 x 16
211000003
Unavailable
37
TRIDON GEAR CLAMP - Call your local BRP dealership
293650005
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Allen Screw M4 x 6
210100014
Unavailable
40
Caillau Clic Clamp
293650060
Unavailable
41
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
42
Tie Wrap 368 mm
293750008
$1.04
43
Tie-Rap 180 mm
414115200
$0.11
44
Filler Neck Hose
275500259
Unavailable
45
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
46
Black, Dart
293730006
$0.99
47
Black, Snap Cap
293000034
$9.39
48
Gasket
293250017
Unavailable
49
Filler Neck
275500247
Unavailable
50
Gasket
293250029
$14.82
51
Oil Cap Chain
275500015
Unavailable
52
Screw K40 X 10
241140060
$1.48
53
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
54
Flat Washer M3, Stainless
234032600
$0.55
55
Filler Neck Nut, Fuel
211100012
$14.22
56
Clic Clamp
293650057
Unavailable
57
Loctite 271, 10 ml
293800005
$26.99
58
Choke Cable Ass'y | Includes 58 - 62.
270000186
Unavailable
59
Choke Plate
291000457
Unavailable
60
Hex. Nut M6
232160600
$1.15
61
Rubber Pad 330 mm
293830020
Unavailable
62
Rubber Pad
293830021
Unavailable
63
Hex. Nut
211100007
Unavailable
64
Y-Fitting
293710059
$9.69
65
IMPULSE HOSE - Call your local BRP dealership
275500282
Unavailable
66
CAILLAU CLIC CLAMP - Call your local BRP dealership
293650063
Unavailable
