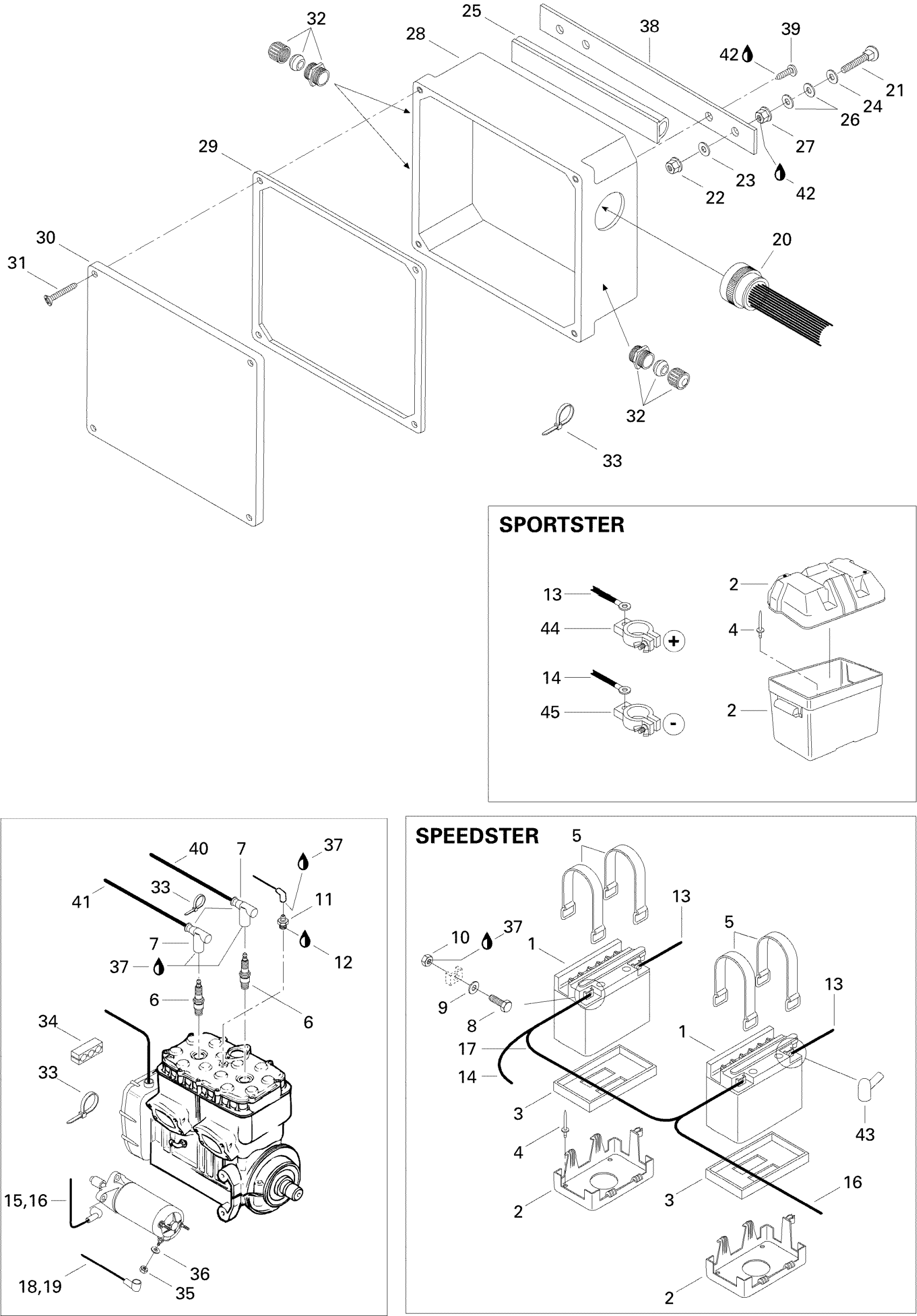

Sea-doo Sportster, 5895, 1996 Electrical System Sportster Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Battery Support

278000573

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Avdel Rivet 3/16"

293150037

$0.56

5

Not Available As Spare Parts

XXX

Unavailable

6

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

7

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Temperature Sensor

278000194

Unavailable

12

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

13

Cable - Red

278000875

Unavailable

14

Ground Cable - Plate

278000575

Unavailable

15

Battery Ground Cable

278000723

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Starter Cable - Left

278000865

Unavailable

20

Harness Ass’y | Includes 5, 6, 35, 60, 61, 62

278000791

Unavailable

21

Elevator Bolt

204000130

Unavailable

22

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

25

Was 293200017 Neoprene Seal

219704365

$149.99

26

Stainless, Flat Washer 8 mm

234081600

$0.55

27

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

28

ElectricalBox(Incl.It.22)

278000788

Unavailable

29

Gasket

293250052

Unavailable

30

Cover

278000873

Unavailable

31

Screw 1/4-20 x 5/8

211000052

Unavailable

32

Cap & Grommet

278000528

Unavailable

33

Tie Wrap 142 mm

293750002

$1.25

34

4 Wire Support

278000346

Unavailable

34

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

Stainless Flat Washer M6

234061600

$0.33

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

Electrical Box Support

278000856

Unavailable

39

Screw 1/4"

211000053

Unavailable

40

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

41

Spark Plug Wire 530 (MAG)

278000322

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

44

Battery Pole (Positive)

278000679

Unavailable

45

Battery Pole (Negative)

278000680

Unavailable
