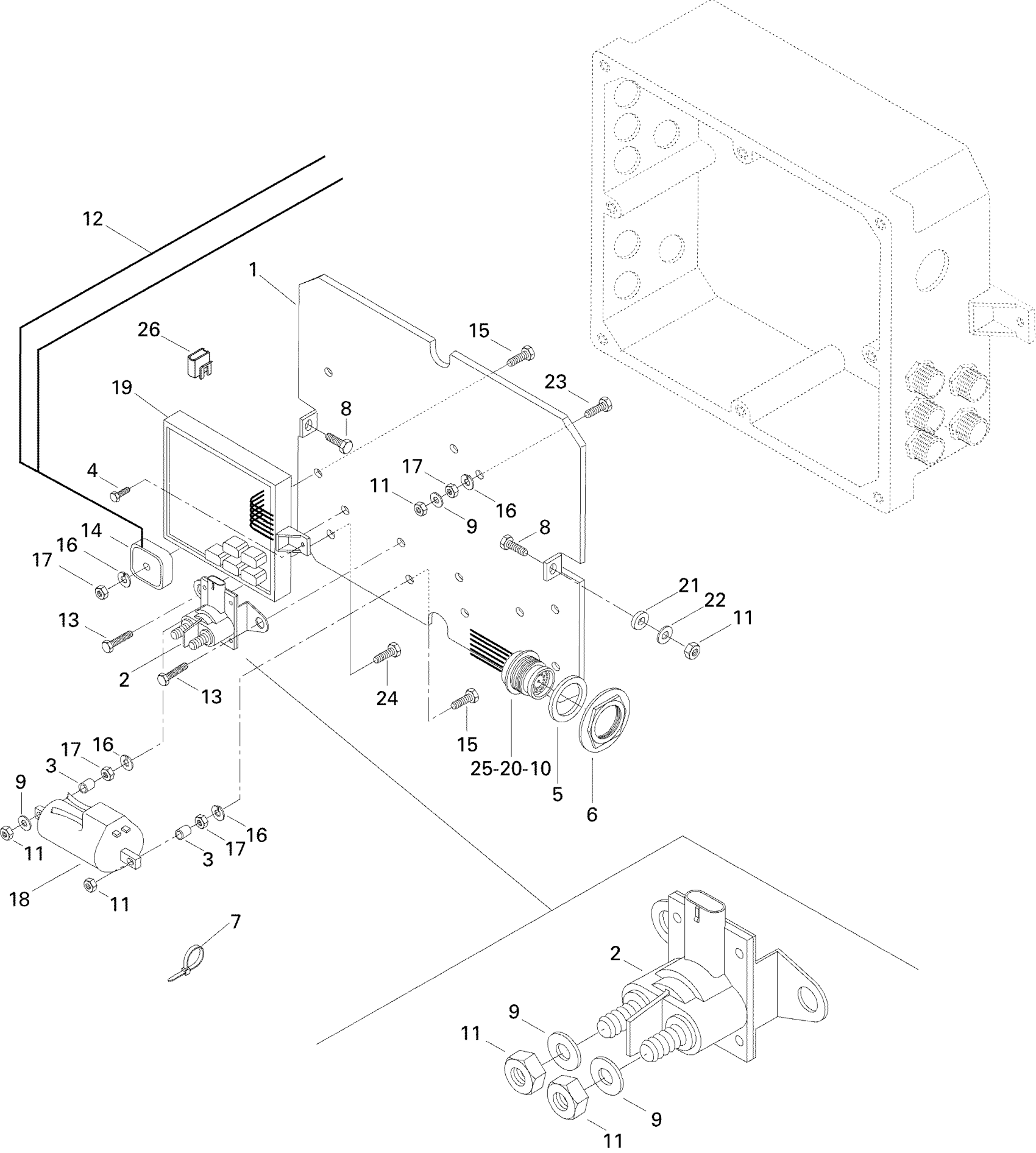

Sea-doo Sportster, 5895, 1996 Electrical Box Sportster Diagram

#

Description
Price

1

Mounting Plate

278000874

Unavailable

2

Starter Relay

278003012

$35.07

3

SPACER - Call your local BRP dealership

278000235

Unavailable

4

Taptite Screw M6 x 16

211000080

Unavailable

5

Gasket(Canon)

293250053

Unavailable

6

Nut(Canon)

211100029

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Hex. Forming Screw M6 X 20

207162060

$1.03

9

Stainless Flat Washer M6

234061600

$0.25

10

Male Terminal

278000869

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

12

Male Terminal

278000230

$3.48

12

Insulation Sheath

278000231

$4.13

13

Hex. Flange Screw M6 X 10

210261040

$1.25

14

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

15

Hex. Screw M6 X 35

207163560

$1.17

16

Lock Washer Helical M6

234161601

$0.92

17

Hex. Nut M6

232061600

$0.91

18

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

19

Electronic Module | Includes 10, 20, 25

278000790

Unavailable

20

Male Terminal(Canon)

278000868

Unavailable

21

Rubber Washer 6 mm

211200032

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.64

23

Hex. Screw M6 X 25

207162560

$1.22

24

Hex. Screw M6 X 40

207164060

$2.74

25

Female Housing(Canon)

278000867

Unavailable

26

Fuse Holder

204470059

Unavailable
