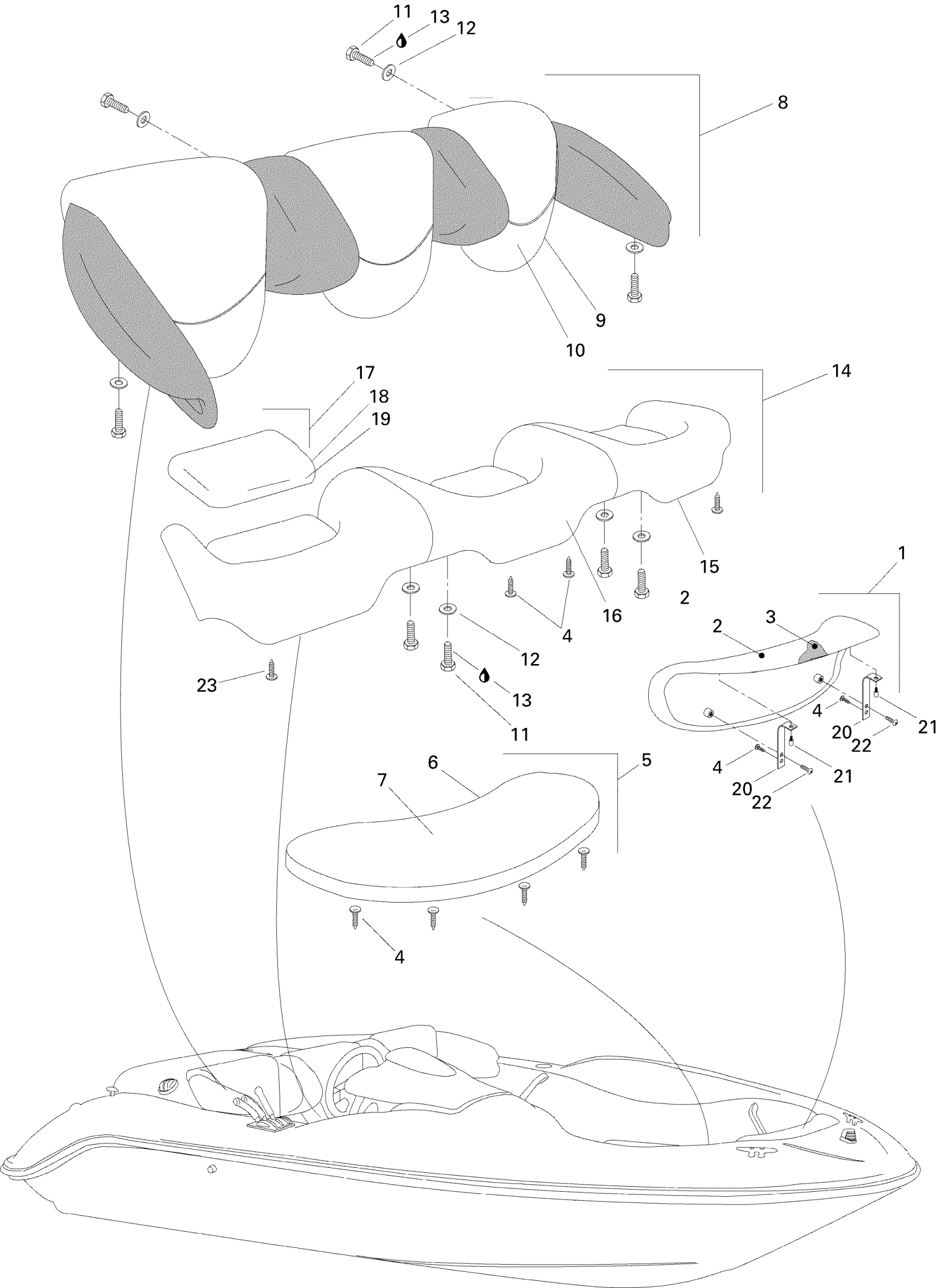

Sea-doo Sportster, 5895, 1996 09- Seat Sportster Diagram
#
Description
Price
1
Front Backrest Ass'y (Ocean Reef) | Includes 1 to 3
269000379
Unavailable
2
Front Backrest Cover (Ocean Reef)
269000403
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Black, Dart
293730006
$0.99
5
Front Seat (Incl. It. 21)
269000381
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Rear Backrest Ass'y | Includes 8 to 10
295500402
Unavailable
9
RR Backrest Cover (Ocean Reef)
269000402
Unavailable
9
RR Central Backrest Cover (White)
269000280
Unavailable
9
RR Backrest Cover (Printed)
269000386
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Hex. Screw M6 X 25
207162560
$1.47
12
Flat Washer M6, Stainless
234062600
$0.77
13
Loctite 243, 10 ml
293800060
$21.49
14
Rear Seat Ass'y | Includes 14 to 17
295500399
Unavailable
15
RR Seat Cover (Ocean Reef)
269000247
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Rear Seat Pillow Cover
269000231
Unavailable
19
Rear Seat Pillow Foam
269000232
Unavailable
20
Front Seat Support
269000378
Unavailable
21
Threaded Rod M5
269000380
Unavailable
22
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership
216351060
Unavailable
23
Black Dart
293730014
$0.99
