09- Engine Compartment Sportster

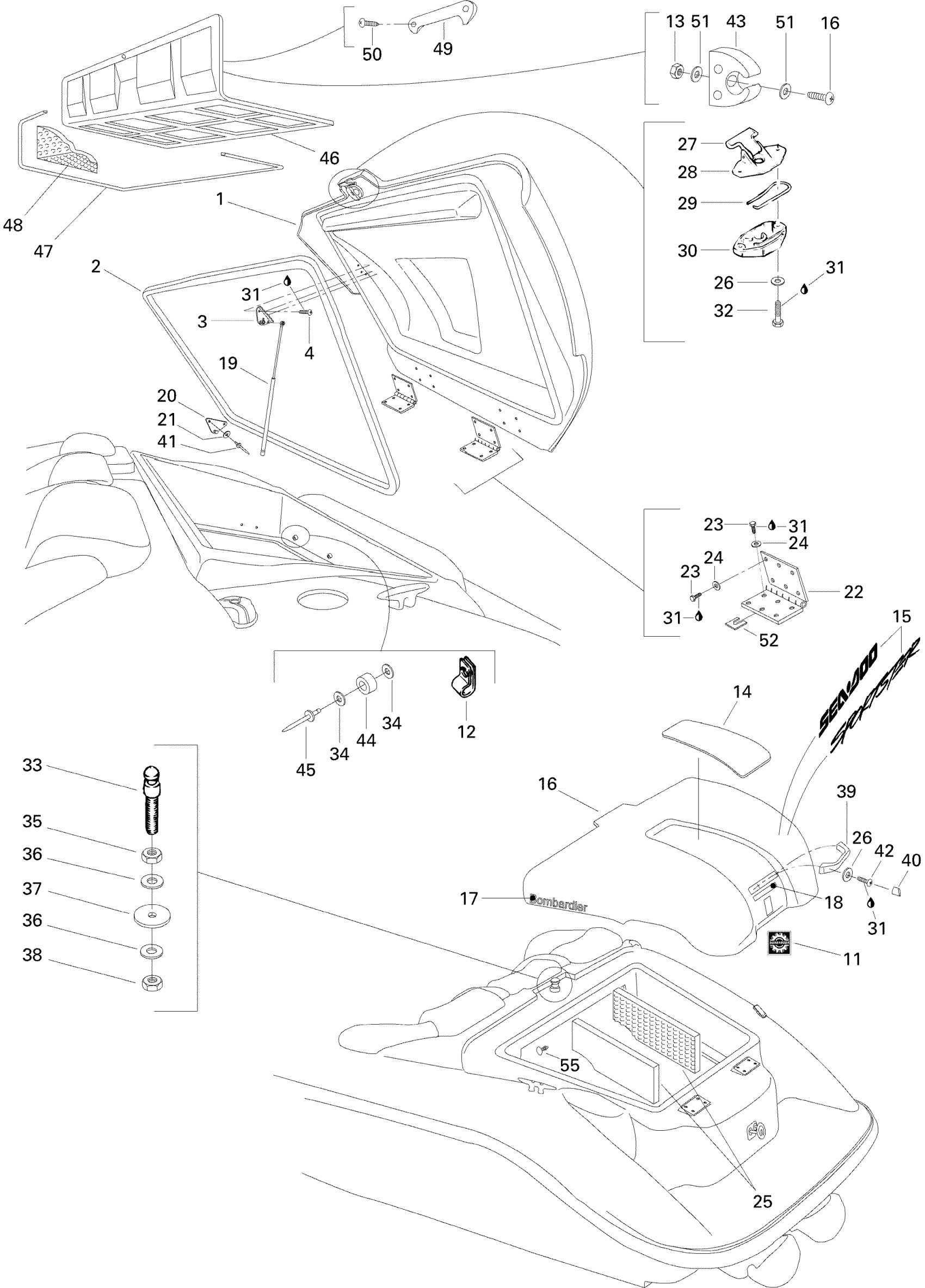

Sea-doo Sportster, 5895, 1996 09- Engine Compartment Sportster Diagram
#
1
Engine Cover
295500373
Unavailable
2
Seal Tray 1000Mm Long
219704368
$13.99
3
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
4
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership
215051660
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
<> Logo Decal
219900049
Unavailable
12
Clip Cable
414839700
Unavailable
13
Elastic Stop Nut M4
232541600
$1.15
14
Not Available As Spare Parts
XXX
Unavailable
15
Decal «Sportster»
219900638
Unavailable
16
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
17
<> Decal
219900586
Unavailable
18
Decal <>
219900606
Unavailable
19
Cylinder
291000822
Unavailable
20
Shock Support
291000615
Unavailable
21
Flat Washer M5, Stainless
234051600
$0.77
22
Hinge
269500240
Unavailable
23
Hex. Screw M6 X 25
207162560
$1.47
24
Stainless Flat Washer M6
234061600
$0.33
25
LH Engine Compartment Foam
237500012
Unavailable
25
Engine Foam R.H
237500011
Unavailable
26
Stainless Flat Washer M6
234061600
$0.33
27
Latch Ass'y
269700109
$24.99
28
Latch Ass'y
269700109
$24.99
29
Latch Spring
269700017
$9.19
30
Latch Ass'y
269700109
$24.99
31
Loctite 243, 10 ml
293800060
$21.49
32
Hex. Screw M6 X 25
207162560
$1.47
33
Latch Stud
204700001
Unavailable
34
Flat Washer
211200028
Unavailable
35
Hex. Jam Nut M10
232100600
$2.22
36
Flat Washer 10 mm, Stainless
234002600
$2.22
37
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
38
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
39
Grip Handle (Ocean Reef) | Includes 16 to 17
291000837
Unavailable
40
Snap Cap (Ocean Reef)
293000047
Unavailable
41
Pop Rivet 3/16"
293150043
$2.09
42
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
43
Pole Support
291000642
Unavailable
44
Rubber Stopper
293830043
Unavailable
45
Pop Rivet 3/16"
293150014
$1.09
46
Access Cover
295500299
Unavailable
47
Seal Tray 1000Mm Long
219704368
$13.99
48
Luggage Foam
237500013
Unavailable
49
HANDLE, WHITE - Call your local BRP dealership
291000608
Unavailable
50
Hex. Flange Screw K40 X 16
241141660
$1.48
51
Flat Washer 4 mm
234040600
$0.55
52
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
55
Black, Dart
293730006
$0.99
