09- Body And Accessories Sportster

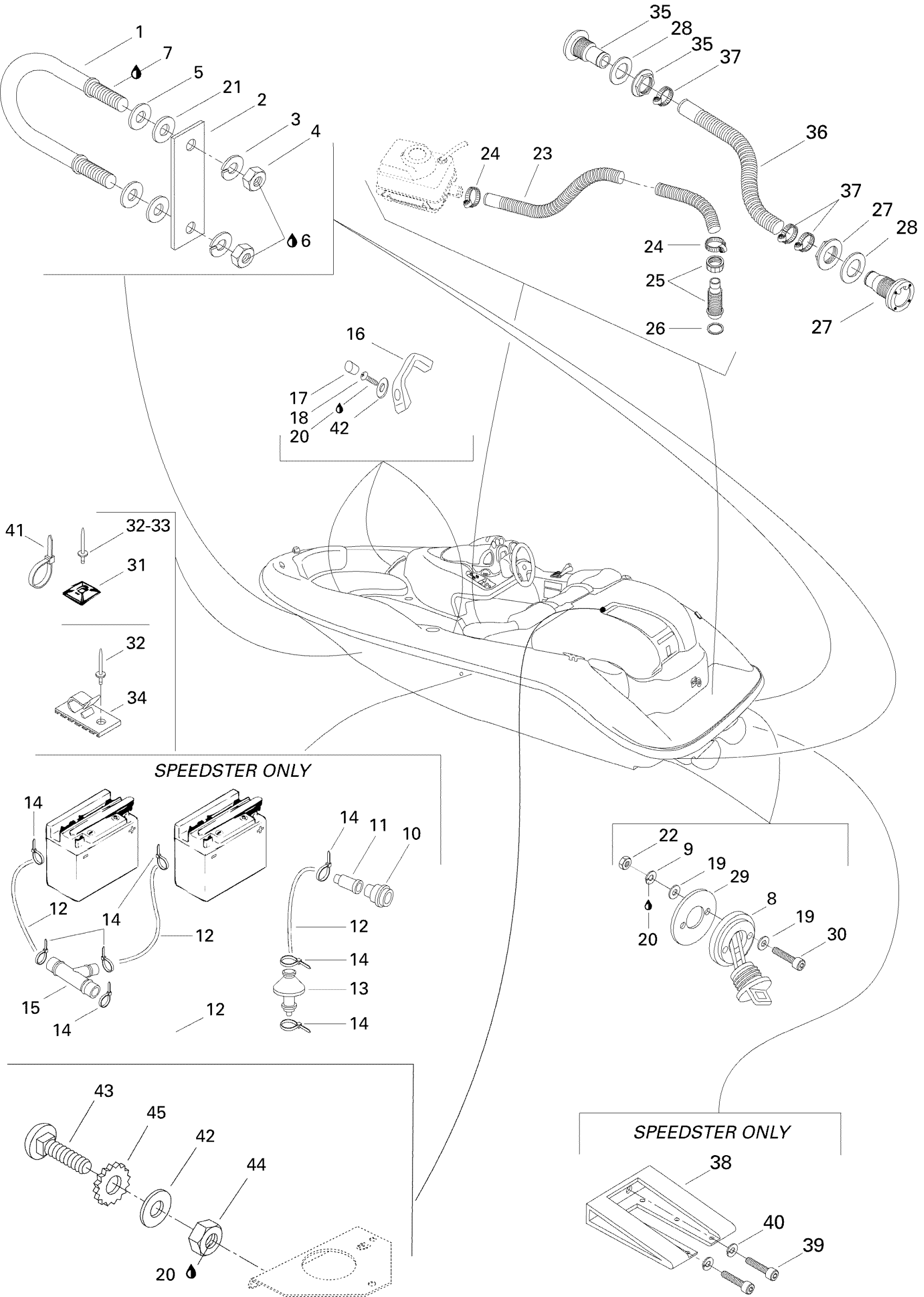

Sea-doo Sportster, 5895, 1996 09- Body And Accessories Sportster Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
3
Lock Washer 8 mm, Stainless
234181601
$0.55
4
Hex. Nut M8
232081600
$1.47
5
Flat Washer M8.5 x 18
293050001
$3.07
6
Silicone Sealant 51388, 300 ml
296000309
$36.99
7
Loctite 271, 10 ml
293800005
$26.99
8
Drain Plug
292000187
$14.49
9
Lock Washer 4 mm
234141601
$1.15
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
16
Grip Handle (Ocean Reef) | Includes 16 to 17
291000837
Unavailable
17
Snap Cap (Ocean Reef)
293000047
Unavailable
18
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
19
Flat Washer 4 mm
234040600
$0.55
20
Loctite 243, 10 ml
293800060
$21.49
21
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
22
Nut M4
211100025
Unavailable
23
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
24
Tridon Clamp
293650016
$10.99
25
Fitting
293710162
$13.49
26
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
27
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
28
GASKET - Call your local BRP dealership
292800106
Unavailable
29
GASKET - Call your local BRP dealership
293250030
Unavailable
30
Allen Screw M4 x 30
215943060
Unavailable
31
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
32
Rivet 1/8"
293150016
$0.40
33
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
34
Clip Cable
293750011
Unavailable
34
Cable Clip
293750006
Unavailable
35
FITTING - Call your local BRP dealership
293710060
Unavailable
36
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
37
Tridon Gear Clamp
293650045
$5.69
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Tie Wrap 142 mm
293750002
$1.25
41
Tie Wrap 368 mm
293750008
$1.04
41
Tie-Rap 180 mm
414115200
$0.11
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Stainless, Flat Washer 8 mm
234081600
$0.55
43
Elevator Bolt
204000130
Unavailable
44
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
45
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
