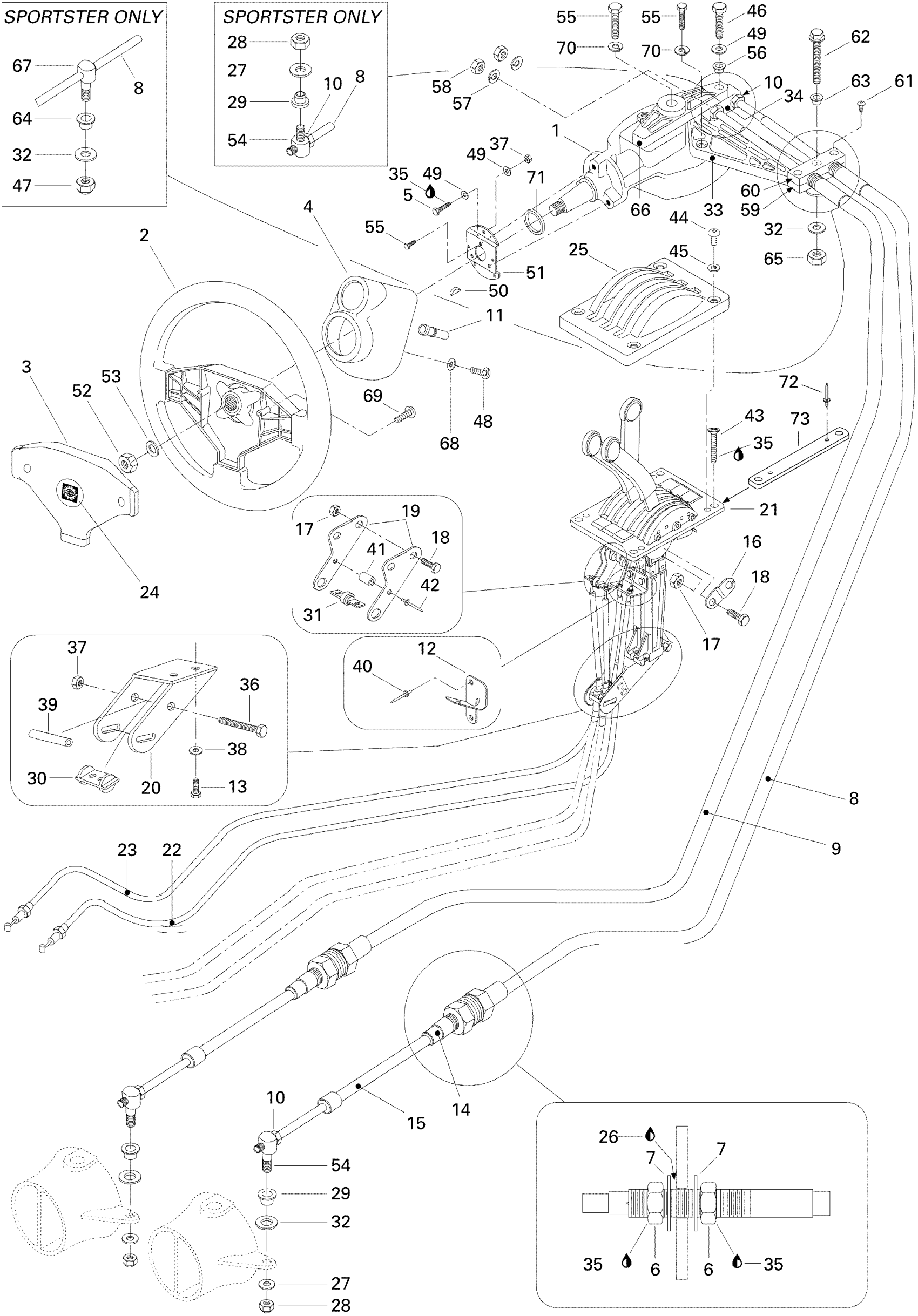

Sea-doo Sportster, 5895, 1996 Steering System Sportster Diagram

#

Description
Price

1

Helm Ass'y

277000342

Unavailable

2

Steering (Grey)

277000476

Unavailable

3

Steering Cover

277000477

Unavailable

4

Collar (Ocean Reef)

277000475

Unavailable

5

Hex. Screw M6 X 30

207163060

$1.48

6

Nut

277000437

Unavailable

7

Washer

277000438

Unavailable

8

Direction Cable | Includes 6, 7, 10, 14, 15

277000373

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

11

Grommet

293720014

Unavailable

12

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

13

Hex. Screw M6 x 12

210000011

Unavailable

14

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

15

Terminal Wiper

277000441

$11.99

16

Throttle Link

277000447

Unavailable

17

Hex. Elastic Nut M5 | X

232551600

$1.15

18

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

19

Link - Reverse

277000448

Unavailable

20

SUPPORT - Call your local BRP dealership

277000452

Unavailable

21

Control - Ultra

277000446

Unavailable

21

Ultraflex Control Ass'y | Includes 18 to 46

204390377

$1.00

22

Throttle Cable

277000327

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Logo «Bombardier»

219900514

Unavailable

25

Control Cover

277000513

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$36.99

27

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

28

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

29

BUSHING - Call your local BRP dealership

293350012

Unavailable

30

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

31

PIVOT BRACKET - Call your local BRP dealership

277000450

Unavailable

32

Flat Washer 10 mm, Stainless

234001600

$1.15

33

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Loctite 243, 10 ml

293800060

$21.49

36

Screw M6 x 80

210100010

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Lock Washer Helical M6

234161601

$1.15

39

SPACER - Call your local BRP dealership

277000453

Unavailable

40

Pop RIvet 1/8 X ,375

293150285

$0.33

41

SPACER - Call your local BRP dealership

277000449

Unavailable

42

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

43

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216153060

Unavailable

44

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

45

Flat Washer 4 mm

234040600

$0.55

46

Not Available As Spare Parts

XXX

Unavailable

47

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

48

Hex. Flange Screw K40 X 25

241142560

$2.64

49

Stainless Flat Washer M6

234061600

$0.33

50

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

51

Support

277000383

Unavailable

52

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

53

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

54

PIVOT - Call your local BRP dealership

277000456

Unavailable

55

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

Flanged Bushing

293350014

$12.99

65

Not Available As Spare Parts

XXX

Unavailable

66

Arm

277000459

Unavailable

67

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

68

Flat Washer 4 mm, Stainless

234042600

$1.15

69

Flange Screw K40 X 20

241642060

$1.15

70

Lock Washer 1/4”

211200025

$1.29

71

SPACER - Call your local BRP dealership

277000593

Unavailable

72

Not Available As Spare Parts

XXX

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable
