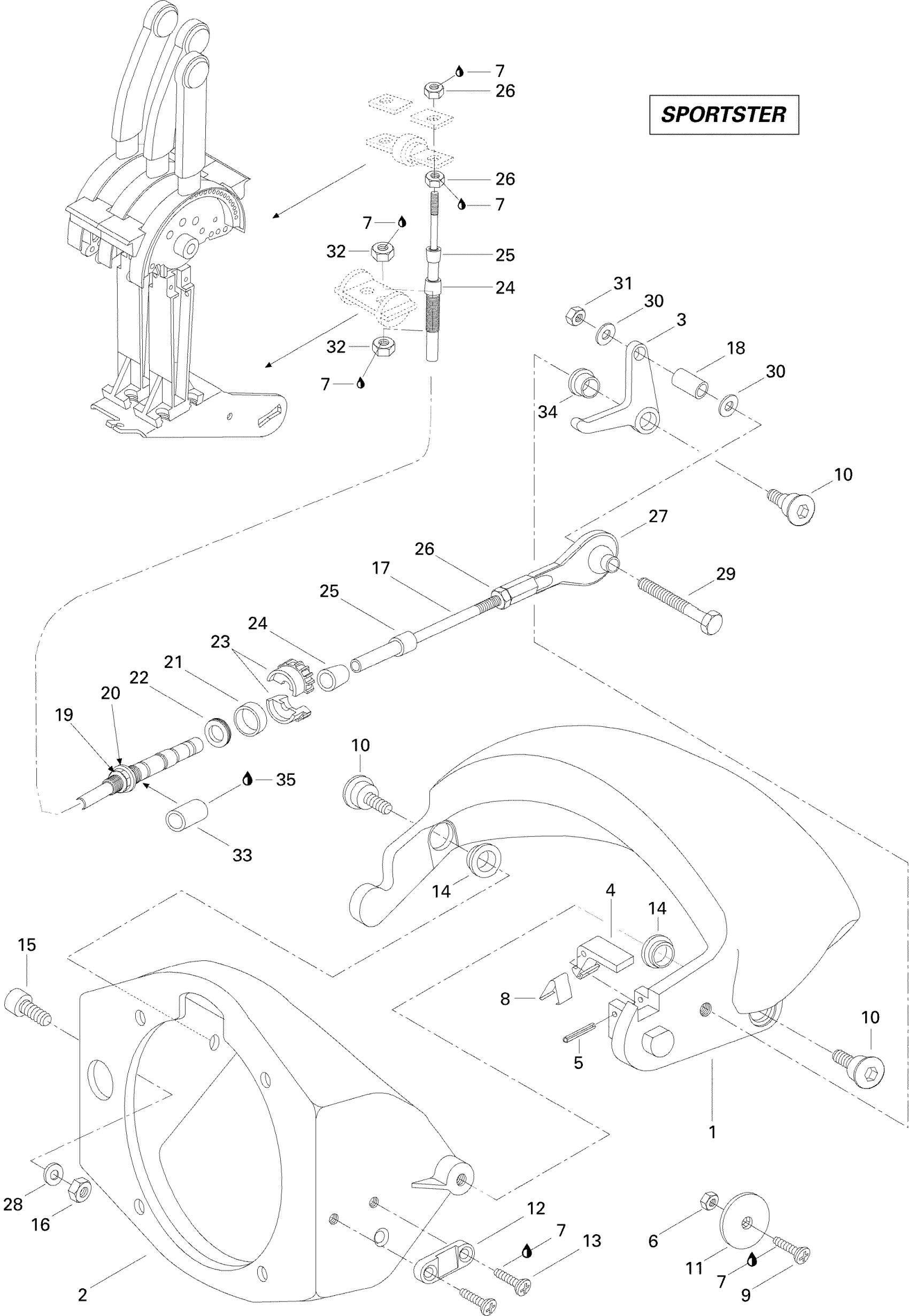

Sea-doo Sportster, 5895, 1996 Reverse Sportster Diagram

#

Description
Price

1

Gate - Reverse

271000440

Unavailable

2

Gate Support

271000473

Unavailable

3

Cable Lever

271000382

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.68

6

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Spring

271000431

$15.49

9

Screw 1/4 - 20 x 3/4

211000066

Unavailable

9

Screw 1/4-20 x 5/8

211000084

Unavailable

10

Screw

211000007

Unavailable

11

Anode-Zinc

271000477

Unavailable

12

Pawl-stop

271000385

Unavailable

13

Screw M5 x 12

216151260

Unavailable

14

Venturi Bushing

271000321

$8.69

15

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

16

Hex. Elastic Nut M8

232581600

$1.48

17

Reverse cable - Right

271000467

Unavailable

18

SPACER - Call your local BRP dealership

291000177

Unavailable

19

Hex. Jam Nut 1/2-20

211100011

Unavailable

20

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

21

Retaining Ring

211100010

Unavailable

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Half-Ring

277000168

Unavailable

24

Boot, Large

277000473

Unavailable

25

Boot, Small

277000466

Unavailable

26

Hex. Nut

212100005

$1.35

27

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

28

Stainless, Flat Washer 8 mm

234081600

$0.55

29

Hex. Screw M6 X 50

207065060

$2.22

30

Stainless Flat Washer M6

234061600

$0.33

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Hex. Jam Nut

212100006

Unavailable

33

Spacer

271000465

Unavailable

34

Plastic Bushing

271000212

Unavailable

35

Silicone Sealant 51388, 300 ml

296000309

$36.99
