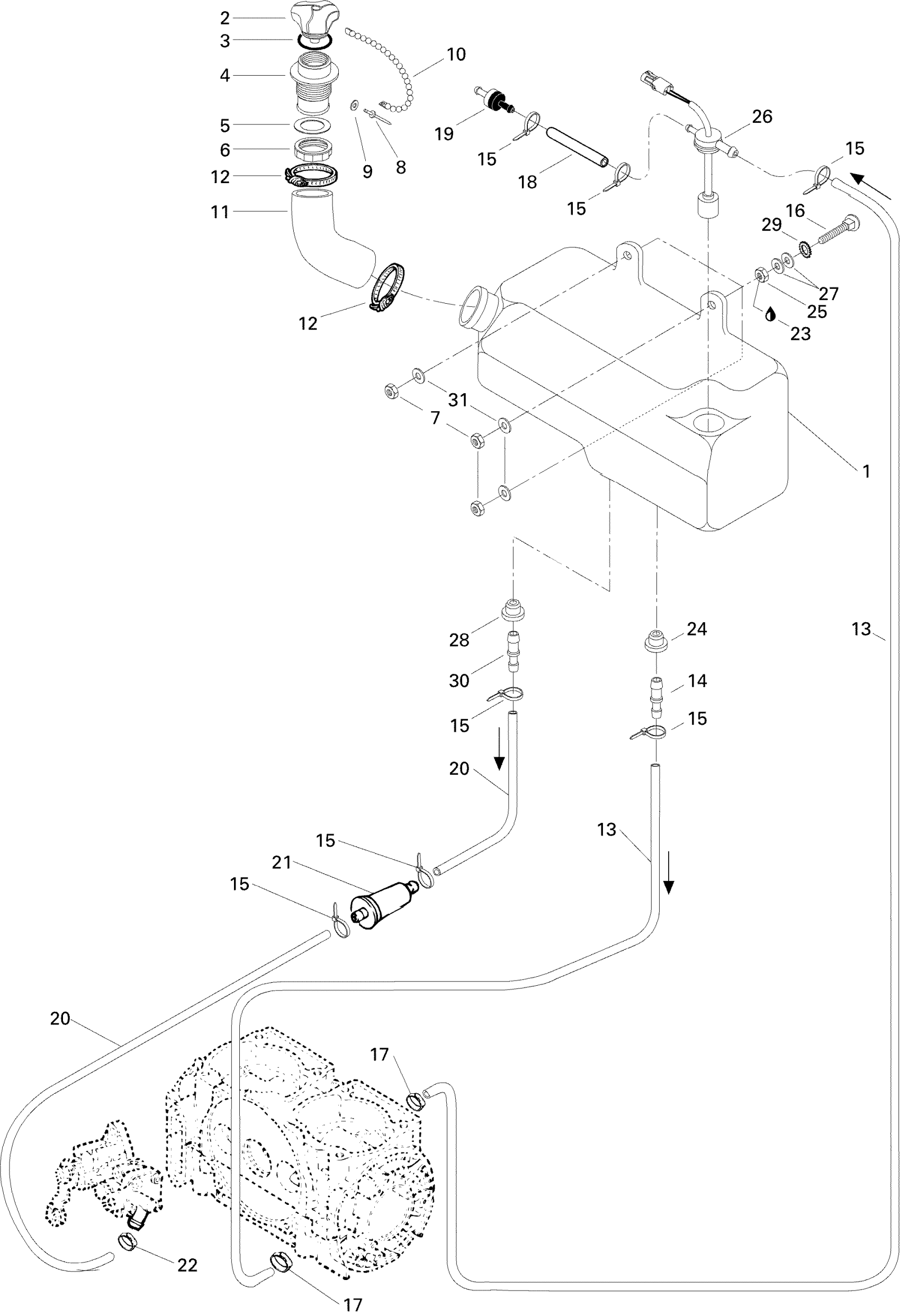

Sea-doo Sportster, 5895, 1996 Oil Injection System Sportster Diagram

#

Description
Price

1

Oil Tank

275000145

Unavailable

2

Oil Cap

275000186

Unavailable

3

O-RING - Call your local BRP dealership

293250025

Unavailable

4

Filler Neck

275000142

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

8

Pop RIvet 1/8 X ,375

293150285

$0.23

9

Flat Washer M3, Stainless

234032600

$0.54

10

Oil Cap Chain

275500015

Unavailable

11

Formed Hose

275000128

Unavailable

12

Tridon Clamp

293650035

$5.80

13

Was 275500008 Hose 12 mm

219704356

$5.94

14

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$0.83

16

Elevator Bolt

204000130

Unavailable

17

Tridon Gear Clamp

293650170

$1.74

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

19

Check Valve This part replaces 275500087.

275501246

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$1.40

23

Loctite 243, 10 ml

293800060

$20.77

24

Grommet | Europe

707800347

$7.58

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

Oil Level Sensor

278000478

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.46

28

Grommet

709200285

$7.09

29

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

30

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.64
