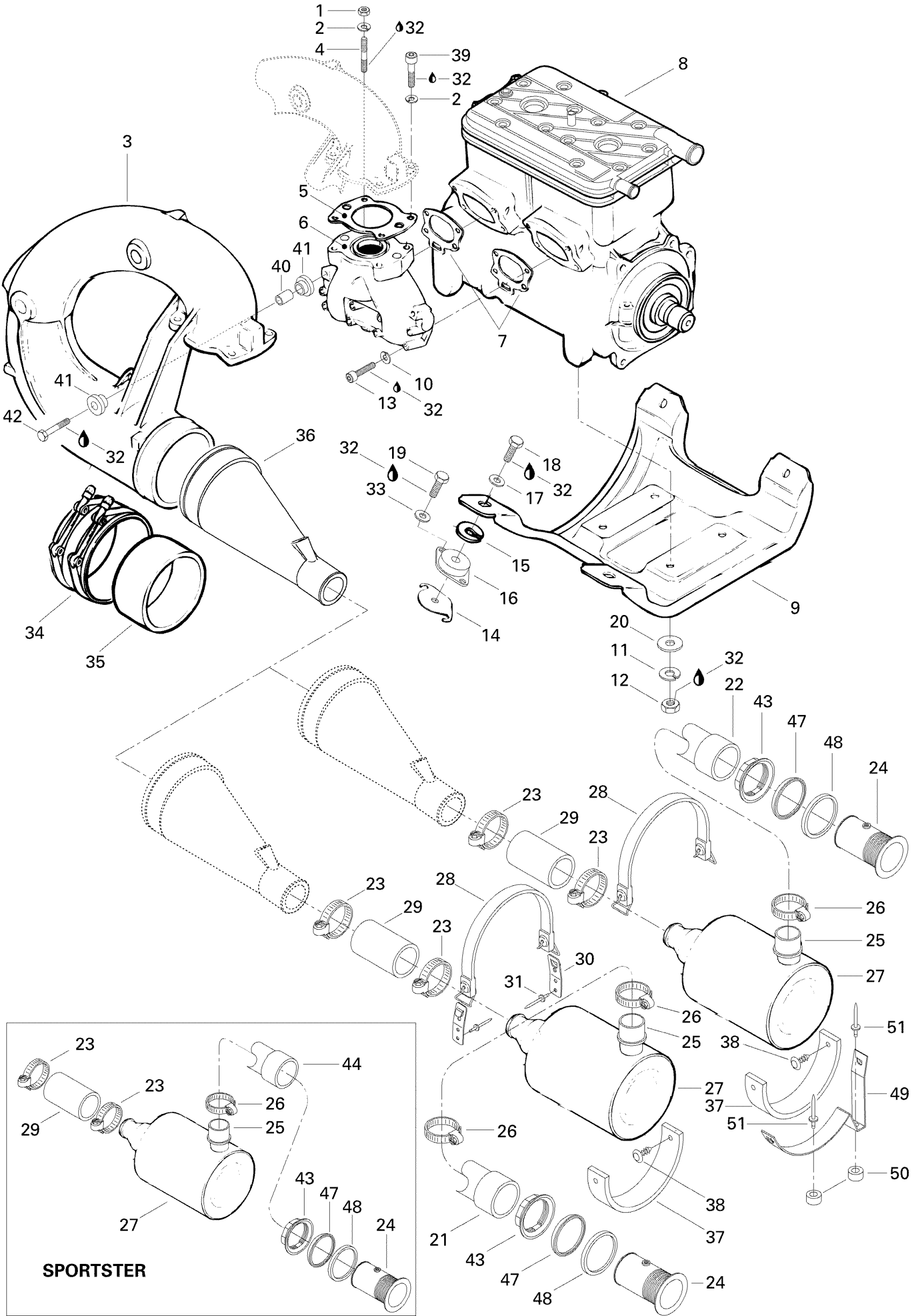

Sea-doo Sportster, 5895, 1996 01- Exhaust System Sportster Diagram
#
1
Hex. Nut M8
232081600
$1.47
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Tuned Pipe Ass'y | Includes 1 - 4.
274000302
Unavailable
4
Stud M8 x 26
420941014
$14.22
5
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
6
Exhaust Manifold (White)
290979141
Unavailable
7
Gasket This part replaces 290850638.
420850638
$12.17
8
Rotax Eng. 717, Double Carb. (White)
270000135
Unavailable
9
Engine Support
270000147
Unavailable
10
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
13
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
14
Shim 0.4 mm
270000006
Unavailable
14
Shim 1.3 mm
270000007
Unavailable
14
Shim 3.3 mm
270000143
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
15
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
Not Available As Spare Parts
XXX
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Tridon Clamp
293650036
$7.49
24
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
25
Hose Adaptor
274000383
Unavailable
26
Tridon Clamp
293650064
$8.29
27
Muffler
274000249
Unavailable
28
Retainer Strap
293850097
$11.64
29
Exhaust Hose
274000170
Unavailable
30
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
31
Avdel Rivet 3/16"
293150037
$0.56
32
Loctite 243, 10 ml
293800060
$21.49
33
Stainless, Flat Washer 8 mm
234081600
$0.55
34
Clamp
274000211
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone Ass'y | Includes 8 - 9.
274000265
Unavailable
37
Rubber Pad
293830008
Unavailable
38
Black, Dart
293730006
$0.99
39
Hex. Screw M8 X 30
207183060
$1.58
40
Bushing
274000114
$8.85
41
Rubber Bushing
293830031
Unavailable
42
Hex. Screw M8 X 40
207084060
$2.22
43
Nut 72 mm
274000224
$16.34
44
Hexhaust Hose
274000311
Unavailable
45
Engine Gasket Set (Not Shown)
290886317
Unavailable
46
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886316
Unavailable
47
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
48
GASKET - Call your local BRP dealership
293250041
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
